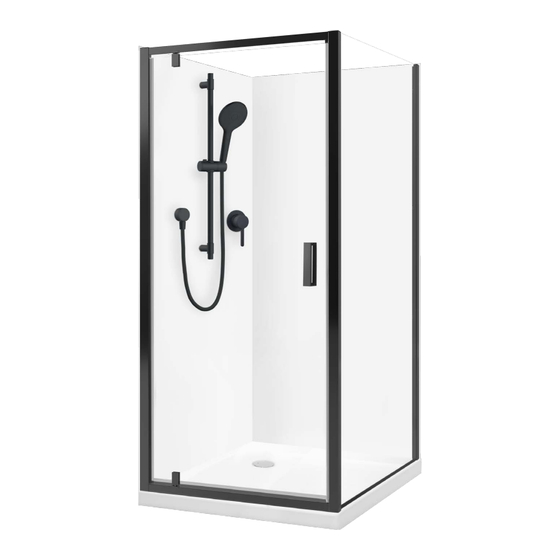

Kohler Englefield Valencia Elite Installation Instructions Manual

Pivot door & side panel
Hide thumbs Also See for Englefield Valencia Elite:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual

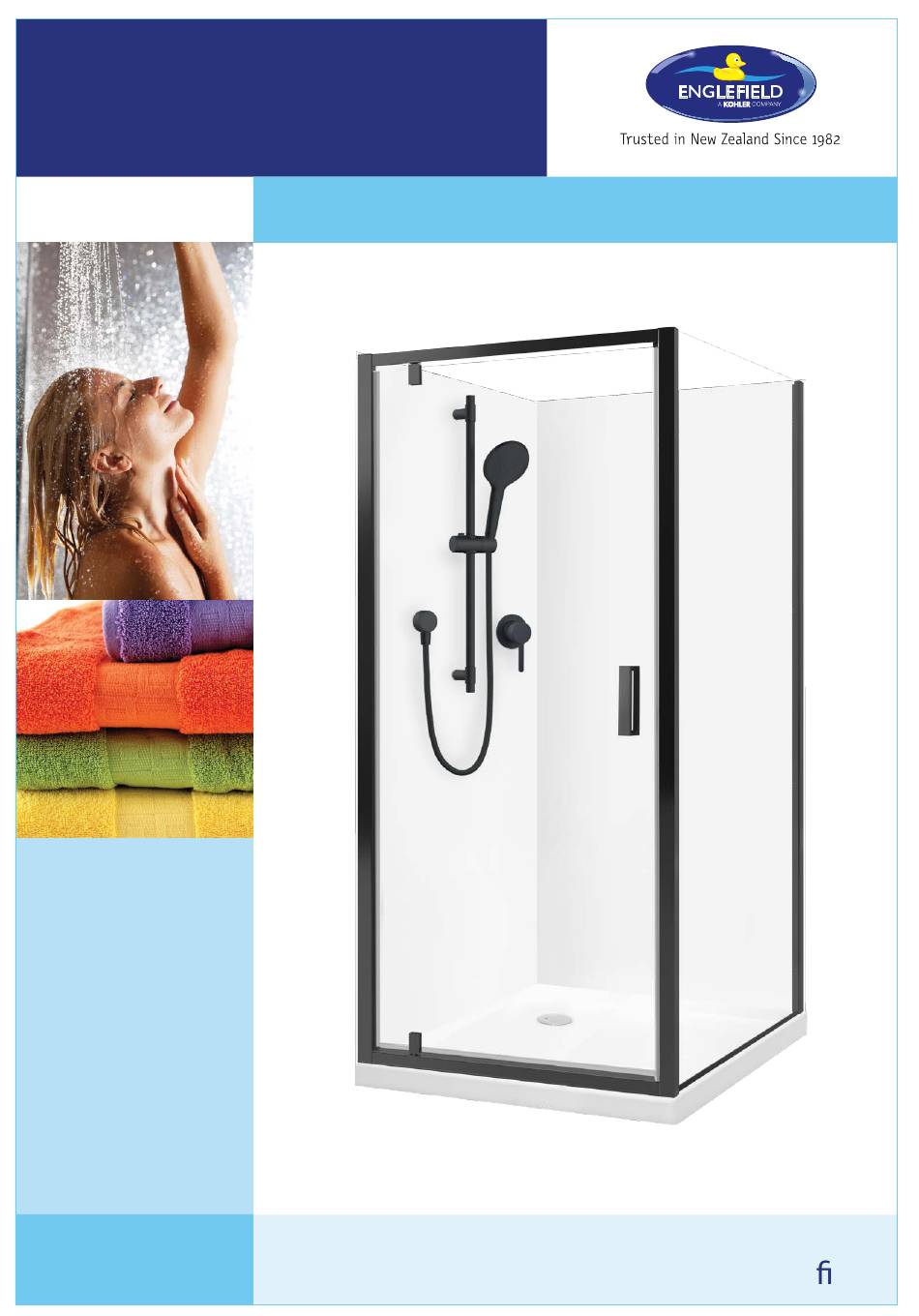

INSTALLATION
INSTRUCTIONS
SHOWER
Englefield has a history
of making superb showers
and their popularity is
testament to their quality
and affordability.
It's the details that Englefield
cares about - from pioneer-
ing the latest technology, to
innovative design, it's all to
make your showering
experience the very best it
can be.
1345090-A02-D
March 2019
VALENCIA ELITE
Pivot Door & Side Panel
Note: Tapware and accessories not included.
Engle eld

Advertisement

Table of Contents
loading

Related Manuals for Kohler Englefield Valencia Elite

Summary of Contents for Kohler Englefield Valencia Elite

  • Page 1 INSTALLATION INSTRUCTIONS VALENCIA ELITE SHOWER Pivot Door & Side Panel Englefield has a history of making superb showers and their popularity is testament to their quality and affordability. It’s the details that Englefield cares about - from pioneer- ing the latest technology, to innovative design, it’s all to make your showering experience the very best it...

  • Page 3: Before You Begin

    VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Before installing the shower please read these instructions carefully to familiarise yourself with the required tools, materials and installation sequences. Please leave these instructions for the consumer after installation. Refer to the separate care and maintenance guide for important care and cleaning information.

  • Page 4: Tools And Materials Required

    VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS TOOLS AND MATERIALS REQUIRED Square Drive 3.0 mm PARTS IDENTIFICATION  Handle Kit 1 x Side Panel  1 x Seal Pack  2 x Corner Covers   1 x Handle Assembly 1 x Hex Key Door Fitting Kit ...

  • Page 5: Construction Requirements

    VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS CONSTRUCTION REQUIREMENTS ATTENTION Due to the weight of the glass panels Englefield strongly recommends constructing double studs (as below) to fix the wall retainers to. Size Dim ‘A’ Dim ‘B’ 900 x 900 1000 x 1000 1000 1000...

  • Page 6: Installation Options

    INSTALLATION INSTRUCTIONS VALENCIA ELITE Pivot Door And Side Panel INSTALLATION - Options OPTION 1 - Acrylic Wall & Tray Tray: For tray installation refer to the instructions supplied with the tray. Wall: For wall installation refer to the instructions supplied with the wall. - Proceed to Door and Return Installation.

  • Page 7: Installation

    VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS INSTALLATION Caution: Ensure tray or tiled floor is level & walls are vertical & square. ± 0 mm ± 0 mm Tip: Cover the waste to prevent the loss of small parts. If installing onto a tray protect the tray surface during installation.
  • Page 8 VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS 3 mm 10 mm Position the wall channels on the wall. The flange with pre-drilled holes should face inside the shower enclosure. Using a level, make sure that the channel is upright. Mark the position of the fixing holes down the centre of the channels, then remove the wall channels.
  • Page 9 VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS (e) Corner Assembly Wall channel adjustment Side Panel Pivot Door ( ) f RH Opening 2.0 mm LH Opening (a) The pivot door can be either a LH or a RH opening. To change the opening, simply rotate the frame through 180º...
  • Page 10 VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS Ø 3 mm Wall channel cover assembly From the inside of the enclosure, drill four holes in the door frame through the centre marked points on the wall channel with a 3 mm HSS drill bit (not supplied). Install and tighten the wall channel assembly screws Repeat the process for the other wall channel.
  • Page 11 VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS Vertical Door Se al 00 DOORS 1000 DOORS [for 1200 doors see page 10] Full length Full length Door Seal 200mm up 200mm up Door Seal Full length Full length wall board finishing wall retainer...
  • Page 12 VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS Vertical Door Se al 1200 DOORS [for 900 & 1000 doors see page 9] Full length Full length 200mm up 200mm up Door Seal Full length Full length Magnetic Strip Door Seal wall board finishing wall...

  • Page 13: Spare Parts

    VALENCIA ELITE Pivot Door And Side Panel INSTALLATION INSTRUCTIONS SPARE PARTS Wall Finishing Strip Scan the QR barcode on the packaging 1315530-** or underside of top caps to identify product SKU and date of manufacture. Retainer Clip 1278349 Retainer Cover 1278348-** Handle Assembly 1365840-**...

  • Page 14: Contact And Warranty Information

    CLEANING AND MAINTENANCE INSTRUCTIONS Please refer to our website for cleaning instructions. CONTACT AND WARRANTY INFORMATION NEW ZEALAND AUSTRALIA KOHLER NZ LTD KOHLER CO. Free Ph: 0800 100 382 Free Ph: 1 800 ENGLEFIELD Free Fax: 0800 664 488 (1 800 364 533) www.englefield.co.nz...
