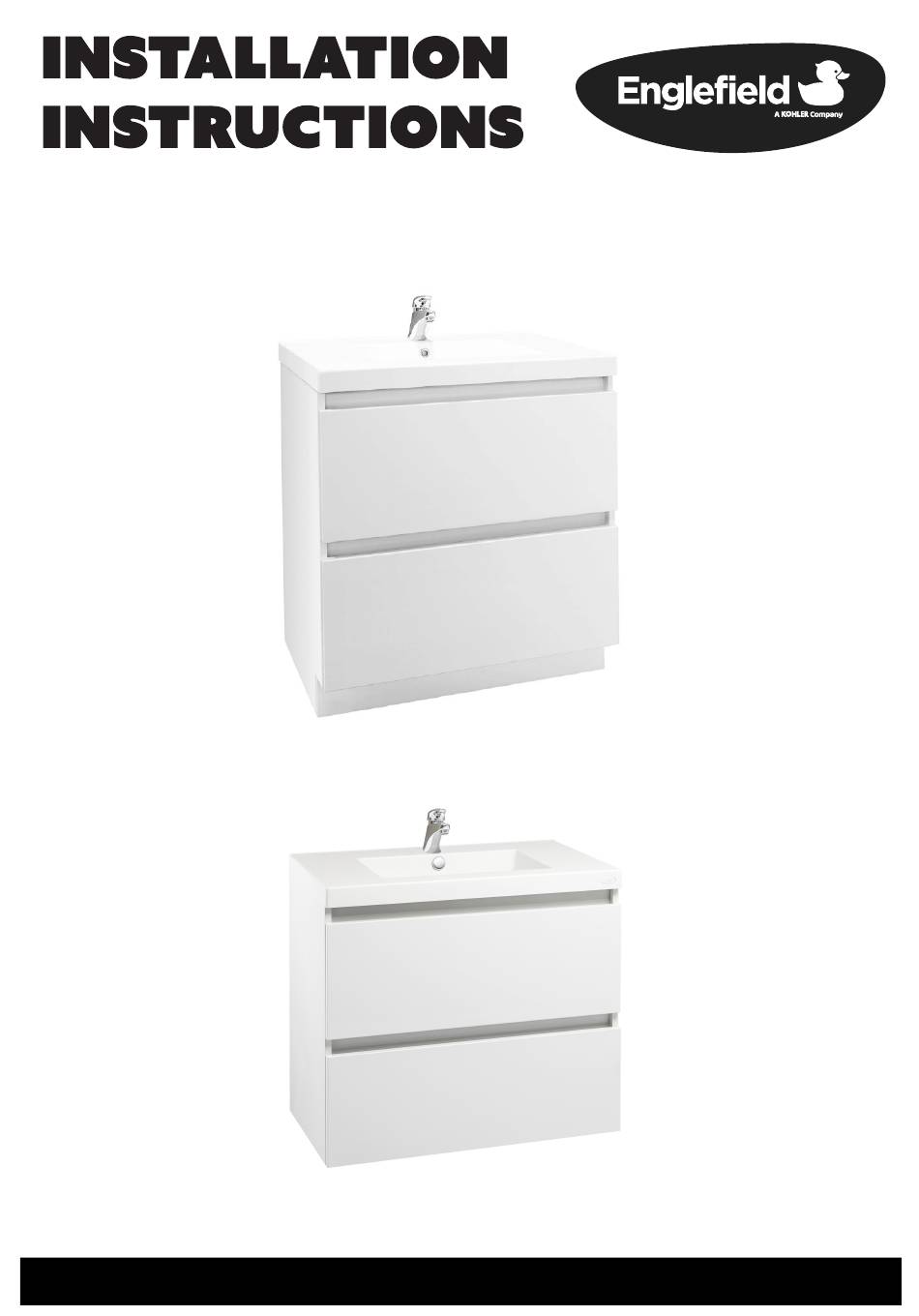

- Page 1 ® ® FURNITURE | VALENCIA / VALENCIA ELITE DOUBLE DRAWER VANITY Floor Standing Models Wall Hung Models englefield.co.nz 1223207-A02-G September 2023 Page1...
-
Page 2: Before You Begin
® ® VALENCIA / VALENCIA ELITE Double Drawer Vanity INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN: Please read these instructions carefully to familiarise yourself with the required tools, materials, and installation sequences. Follow the sections that pertain to your particular installation. This will help you avoid costly mistakes. -
Page 3: Construction Requirements
® ® VALENCIA / VALENCIA ELITE Double Drawer Vanity INSTALLATION INSTRUCTIONS CONSTRUCTION REQUIREMENTS: Floor standing models must be fixed to a nog in the wall. Wall hung models must be fixed to two nogs in the wall. The nog size should be 50 x 75mm. Floor standing models Wall Hung models 50mm from top of... - Page 4 ® ® INSTALLATION INSTRUCTIONS VALENCIA / VALENCIA ELITE Double Drawer Vanity NOTE: Screws should be positioned in an evenly spaced pattern as shown below. 2. Water supply and waste pipe holes Floor standing models (a) Measure and mark the centres for water supply and waste pipes on the back of the cabinet.
- Page 5 ® ® VALENCIA / VALENCIA ELITE Double Drawer Vanity INSTALLATION INSTRUCTIONS (d) Wipe off any excess sealant. 3. Fixing the vanity to the wall 5. Waste and tapware (a) Fix the cabinet to the wall using screws (min 10g x 75mm) and *20mm washers. Screw through the back rail or wall so that they screw into the nog/s in the wall behind.
- Page 6 ® ® VALENCIA / VALENCIA ELITE Double Drawer Vanity VALENCIA INSTALLATION INSTRUCTIONS Vanity 5 Vanity top 7 Dr (c) For 77296 A-*: Re-install the cabinet door. Height Adjustment Front Sectional Hook the hinges onto the base plates and press View down as shown.
-
Page 7: Cleaning And Maintenance Instructions
ENSURE THAT HOT WATER SUPPLY IS REGULATED TO 55°C MAXIMUM ween cabinet and floor wteen cabinet and wall ween upstand and wall CONTACT AND WARRANTY INFORMATION NEW ZEALAND AUSTRALIA Kohler New Zealand Limited 0800 100 382 info@englefield.co.nz englefield.com englefield.co.nz INSTALLATION COMPLETE 1223207-A02-G September 2023 Page7 englefield.co.nz...
