INDOOR UNIT INSTALLATION

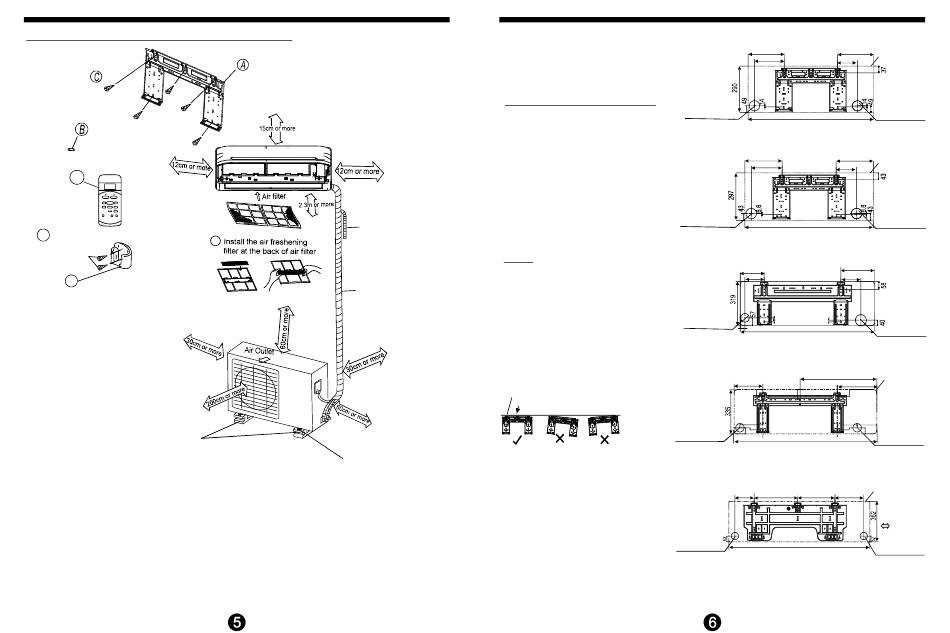

Indoor & outdoor unit installation drawings
Installation plate fixing
screw ST3.9x25(5)
Clip Anchor(5)
D
。
SE T TEMP ERATURE ( C)
FAN
AUTO
COO L HIGH
DRY MED
Remote HEAT LOW
TEMP
controller
MODE ON/OFF FA N SPE ED
SW I N G SLEEP TIM ER ON
T I M ER OFF
RES ET LO CK
A I R LE D
D I R E CTI ON DI SP LAY T URBO
E
Fixing screw for
remote controller
holder ST2.9X10
F
Before screwing the remote
controller holder to the wall,
make sure that control signals
are properly received by
indoor unit.
A
B
In sites with poor drainage, use
block bases for outdoor unit.
Adjust its height until the unit
is leveled. Otherwise, water
leakage or pooling of water
may occur.
NOTE: Appearance of outdoor unit and indoor unit m ay differ from some models.
The actual shape shall prevail.
The mounting plate should be installed on a wall
which can support the weight of the indoor unit.
Additional drain pipe
H
Wrapping tape(wrap the
insulation pipe with the tape
from bottom to top)
C
Allow two of A, B and C
directions to be free
from obstructions.
Where there is a danger of the
unit falling, use foot bolts to
fix.
Fig.1
INDOOR UNIT INSTALLAITON
Remove the installation plate from
the indoor unit.The installation plate
should be installed on a wall which can
support the weight of the indoor unit.

1. Installation Plate Mounting

1. Fit the installation plate horizontally
on structural parts of the wall with
spaces around the installation plate.
2. If the wall is made of brick, concrete
or the like, drill five 5mm diameter
holes in the wall and insert Clip
anchor for appropriate mounting
screws.
3. Secure the installation plate to the
wall with screws.
NOTE:
Mount the Installation Plate and drill
holes in the wall according to the
wall structure and corresponding
mounting points on the installation
plate. The installation plate provided
with the machine differ from appliance
to appliance.
(Dimensions are in mm unless " "
otherwise stated)
Correct orientation
of Installation Plate
Left rear side
refrigerant
pipe hole
Left rear side
refrigerant
pipe hole
INDOOR UNIT INSTALLATION
205 179
101
136
Left rear side
refrigerant
φ
pipe hole 65
722
Model A
232 232
192
128
Left rear side
refrigerant
φ
pipe hole 65
802
Model B
242
172
138 144
Left rear side
refrigerant 12
φ
pipe hole 65
34 965
Model C
581
219
300
76
53.5
53.5
151
174.3
44.7
15.3
47 15.3
φ
65 1080
Model D
172 389
332 257
1259
φ
65
Model E
Fig.2
Indoor unit
outline
Right rear side
refrigerant pipe
φ
hole 65
Indoor unit
outline
Right rear side
refrigerant pipe
φ
hole 65
Right rear side
refrigerant pipe
φ
hole 65
Indoor unit
outline
148.7
Right rear side
47
refrigerant pipe
φ
hole 65
Indoor unit
outline
Right rear side
refrigerant pipe
φ
hole 65
