- Page 1 OWNER’S MANUAL RVMaster POWERED BY TEAMBMPRO.COM...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read the Safety Precautions before installing or using the RVMaster. Be sure to observe all precautions without fail. Failure to observe these instructions properly may result in personal damage, or personal injury which depending on the circumstances may be serious and cause loss of life. WARNING Correct installation is the most critical factor in ensuring the safe use of the RVMaster. -
Page 4: Information For The User
This device must accept any interference received, including that may cause undesired operation WARNING Any changes or modification not expressly approved by BMPRO could void compliance of the product and the user’s authority to operate this equipment. Le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de... - Page 5 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 6: Table Of Contents
PAIRING TO THE NODE WITH A CONTROLLER (MODEL DEPENDENT) . . . 17 BMPRO CLOUD ......19 CONNECTING TO THE BMPRO CLOUD . - Page 7 THE RVMASTER APP ..... . .24 SIDEBAR ......24 RVMASTER APP HOME SCREEN .
-
Page 8: About The Rvmaster
ABOUT THE RVMASTER The RVMaster brings smart home technology to your RV, taking control and management of your RV to new horizons! NODE The heart of the RVMaster, the Node, is an RV management system that powers and monitors your RV features and accessories. The Node communicates via RV-C to the Display or Controller (depending on your model) and Bluetooth Low Energy with your smartphone, to receive the commands to control power to all your RV features and accessories. -

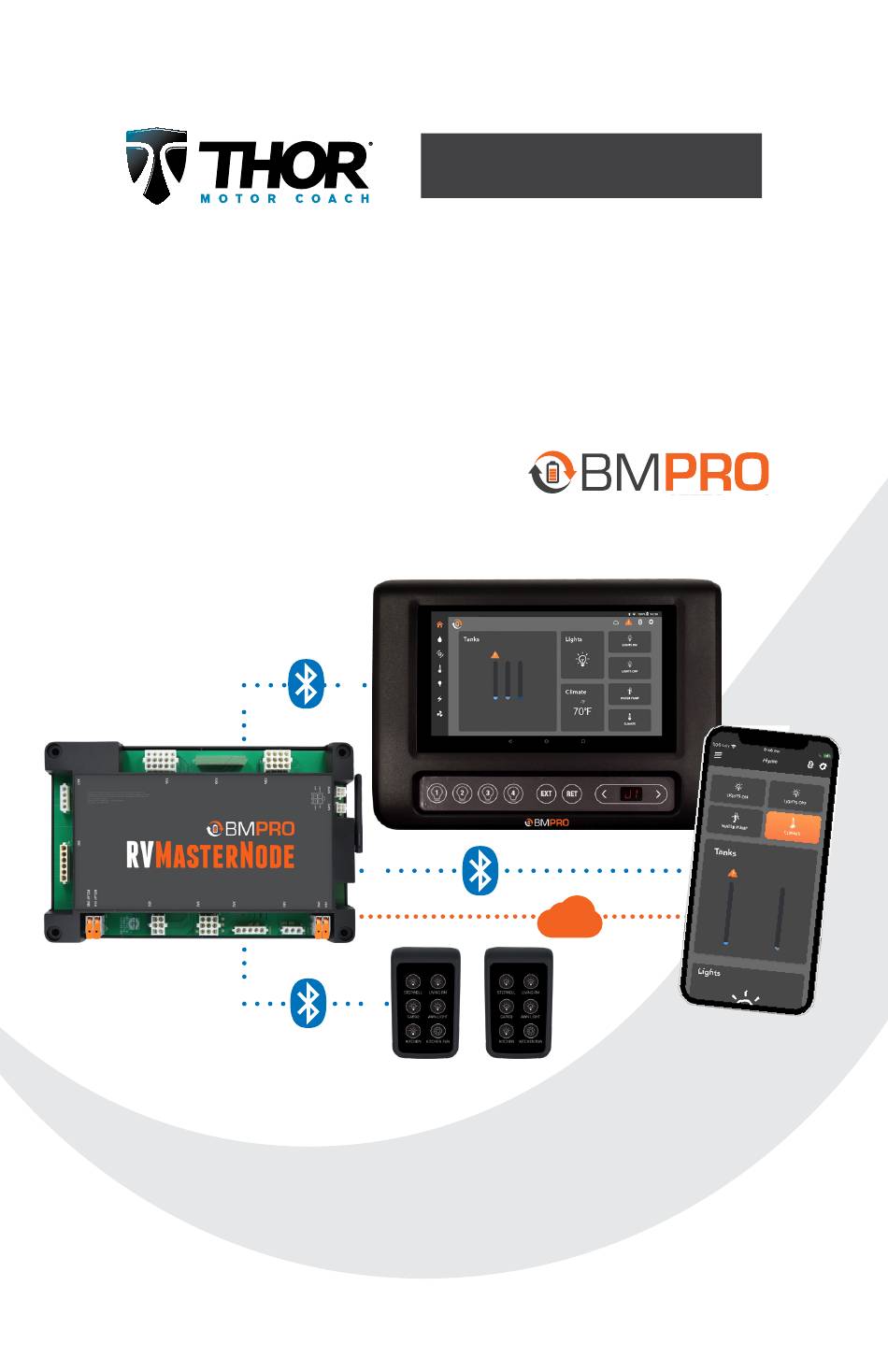

Page 9: Rvmaster System Diagram
RVMASTER SYSTEM DIAGRAM... -
Page 10: Description Of Parts
DESCRIPTION OF PARTS DISPLAY (MODEL DEPENDENT) Page Navigation Button Move between function screens, eg. From Tanks to Water screen. Menu Navigation Button Navigate between items within a page, e.g. in the Water page move from Pump to Elec Heater. 3-4. Action Buttons The function for each of the action buttons changes depending on the selected menu item. -
Page 11: Display Navigation (Model Dependent)
DISPLAY NAVIGATION (MODEL DEPENDENT) Use the Page Navigation Button to move from page to page. Use the Menu Navigation Button to move between menu items within a page. Tanks The Tanks display shows the levels of fresh, gray and black water tanks. Levels are displayed as: FULL 2/3 FULL 1/3 FULL... - Page 12 If Furnace Mode is selected, the AC-Fan option displays. AC-Fan: Settings: OFF / LOW Energy ON: Press and hold the ON action button, until the generator turns on. OFF: Press and hold the OFF action button, until the generator turns off. NOTE: A generator warning will appear if the generator fault LED is actively blinking.
-
Page 13: Controller (Model Dependent)
CONTROLLER (MODEL DEPENDENT) Controller Home Screen Button Connection Bar When connected to Bluetooth, the icon will appear on screen. When connected to the cloud, the icon will appear on screen. Both icons will appear when both services are available. Warning Icon Appears if the power cord has been connected to a faulty power source. - Page 14 Reset Pin Hole To reset the Controller, vertically insert an item (eg. a paper clip) into the reset pinhole. The item must be inserted vertically as the reset hole is in a plastic housing. Control Panel (Model Dependent) To provide quick access to lights and motor operation while the Controller is in use.
-
Page 15: Menu Functions (Model Dependent)
MENU FUNCTIONS (MODEL DEPENDENT) The menu functions on the Controlelr’s Control Panel allow you to operate various motors, quickly switch off loads and pair to or clear the Node. Awnings Navigate to the desired awning, then press EXT or RET to operate. -
Page 16: Pairing To The Node
PAIRING TO THE NODE PAIRING TO THE NODE WITH A DISPLAY (MODEL DEPENDENT) Pairing your smartphone to the Node is simple. The App will guide you through the process. The Node can be paired to a total of four devices. Launch the App on your phone and choose the device installed in your RV Press the Page Navigation Button to navigate to the Settings page. -
Page 17: Pairing To The Node With A Controller (Model Dependent)
PAIRING TO THE NODE WITH A CONTROLLER (MODEL DEPENDENT) Pairing your Controller or your own smartphone or tablet to the Node is done in two easy steps. The RVMaster App will guide you through the pairing process. The Controller will have been paired to your Node at the factory. You should only need to pair your own device or smartphone to the Node. - Page 18 Congratulations, you are now connected! Once connected the RVMaster App will return to the Home Screen. For additional support, refer to the FAQs and Troubleshooting section. Cannot Pair to the Node If you are pairing a mobile device to the Node and pairing fails, or "--" appears on screen, it is mostly likely that four devices are connected to the Node simultaneously.
-
Page 19: Bmpro Cloud
Cloud control allows you to remotely connect, monitor and control your RV from your smart device. CONNECTING TO THE BMPRO CLOUD To connect to the BMPRO Cloud for the first time: Connect your Controller to the Internet via Wi-Fi. Launch the RVMaster App. - Page 20 An email will be sent to your account to verify your email address. Click on the link provided in the email to complete verification. Now connect your smart device using your BMPRO account details to get started. Account Not Verified If the email address was not verified, a message will appear.
-
Page 21: Cloud Control
CLOUD CONTROL To control the RV from cloud: Launch the RVMaster App on your smart device. Press Log in to BMPRO Cloud, or in General Settings, press Remote Connection. Enter your email address and password. Press Log in. SUCCESS! Use cloud control to remotely monitor and control features in your RV. -
Page 22: Winegard
WINEGARD To set up Winegard: From the App home screen, press the Settings icon Select Winegard Settings Logging into the Winegard Network Press the search button to search for the available networks. Select the desired network and enter the password or enter the network name and password. - Page 23 Winegard Status The current status of the Winegard is displayed on the Winegard tile in the General Settings area. 9 SETUP: This is seen when no Winegard network has been connected previously. Press the tile to connect to a Winegard network. 9 UNAVAILABLE: This means that the Winegard network is not available and ...
-
Page 24: The Rvmaster App
THE RVMASTER APP Download the RVMaster app and enjoy the freedom to monitor and operate your RV’s on-board features and accessories, on-the-move, from your own smartphone or tablet. If your system has a Display, the App allows you to access more features of your connected RV that otherwise may not be available. -
Page 25: Rvmaster App Home Screen
RVMASTER APP HOME SCREEN The RVMaster App home screen provides a general overview of the key features of your RV. It also provides a quick way to control specific RV lights, the water pump and the RV’s climate system (model dependent), direct from the home screen. -
Page 26: Motors Screen
MOTORS SCREEN WARNING Before operating any motors, ensure the area is free from obstacles and other hazards. Ensure that any persons near the RV are free from danger of any moving parts. The motor screen provides access to operate any slides, awnings, bed-lifts or jacks available in the RV. -
Page 27: Climate Screen (Model Dependent)
Only one motor may be operated at a time. Once a motor is in operation, motor control will be disabled in any other device running the RVMaster App. To use motors from your own device, you need to swipe to unlock the motors screen. -
Page 28: Lights Screen
To set the temperature of your RV: Turn climate on. Select your mode of operation. Adjust the temperature to your desired setting. The desired temperature is displayed in color, below the actual temperature of the RV. If you are using heat, select your heat mode. If available, select your fan setting. -
Page 29: Energy Center
ENERGY CENTER The Energy Center screen allows you to monitor coach and/or chassis voltages and gas consumption. If no coach and chassis batteries are connected, the RVMaster App will monitor the system voltage of the Node. A warning sign will appear if voltage drops below 12V. The Energy Center also permits the generator to be turned on and off as needed or enable Auto Generator Start, as well as monitor generator run time and status. -
Page 30: Energy Settings
Auto Generator Start (AGS) To use AGS from your Controller, you may need to update the RVMaster App on the Controller. When enabled, Auto Generator Start (AGS) will monitor battery and/or climate levels and automatically turn the generator on and off to support these functions. To use AGS, press the Auto Generator (AGS) button, then swipe to turn on AGS. -
Page 31: Solar Controller
Run Time Limits Set the minimum time that the generator will continue to run after the goal battery voltage and/or temperature is achieved. The maximum time is the total run time that the generator will operate to achieve the target battery voltage and/or temperature. -
Page 32: Fans And Vents Screen
Solar Controller This section displays the input voltage and current from the solar panel and the output voltage and current of the battery. Solar Temperature This section displays the solar controller regulator and battery temperature. If no battery sensor is present, the battery temperature can be hidden from view. The temperature can be displayed in either °F or °C, depending on what preference has been set in the App’s General Settings. -
Page 33: General Settings
GENERAL SETTINGS The General Settings may be accessed by pressing the Settings icon on the RVMaster App homescreen. - Page 34 Use General Settings to: 9 Check the Bluetooth Connection between the Node and Controller. 9 Log in to the BMPRO Cloud using a Remote Connection. 9 Enter the Winegard network name and password to connect to the internet.
-
Page 35: Sensor Settings
SENSOR SETTINGS The Sensors Settings screen allows you to configure push notification warning limits for any connected tire and temperature SmartConnect sensors, and allows you to toggle the sensor displays on or off. For more information about SmartConnect sensors, refer to the SmartConnect user manual. -
Page 36: Solar Controller Settings
SOLAR CONTROLLER SETTINGS The Solar Controller Settings are used to configure the Solar Controller to your liking. To access Solar Controller Settings: From the App home screen, press the Settings icon Press Solar Controller Settings. - Page 37 Display Solar Controller Allows you to toggle Solar Controller information to be hidden if you do not want it to be displayed in the App. If Solar Controller information is hidden, you can toggle it to be displayed. Operating Status Displays the current operating status of the Solar Controller.
-
Page 38: Unit Preferences
UNIT PREFERENCES To change temperature or pressure units, go to the settings menu on the App home screen and press Preferences. From there, temperature units can be toggled between Fahrenheit and Celsius, and pressure units can be toggled between kPa and psi. DIAGNOSTICS The Diagnostics screen displays any detected faults in the system, and allows you to force reset the Node. - Page 39 An orange fault indicator will appear on the gas water heater button if a fault is detected on the gas water heater output. WARNING Motor outputs do not indicate a warning if the wires are shorted. Solar Controller Faults The Diagnostics screen will display any faults detected on the Solar Controller. The following types of faults will be displayed in the Diagnostics screen if detected: 9 Battery Over Voltage...
- Page 40 Climate Faults The Diagnostics screen will display any faults detected in the climate system. The fault message will disappear from the Diagnostics screen once the fault has been externally cleared.
-
Page 41: Updating Firmware
UPDATING FIRMWARE The Node will receive updates over-the-air, meaning you will always get the latest feature updates immediately, without needing to bring your RV to your local RV dealer. To keep the Node updated, make sure that the Controller is connected to the internet. When there is an update to the Node it will begin updating immediately. -
Page 42: Switch
SWITCH The Switch is an optional wall switch available in three types of configurations to suit your RV. The Switch communicates by Bluetooth to the Node to provide additional control of RV features and accessories. Any Switch you install in your RV has been paired to the Node at the factory and is ready for immediate use. -
Page 43: Faqs And Troubleshooting
FAQS AND TROUBLESHOOTING Need more help troubleshooting your RVMaster? Email our customer service team at service@teambmpro.com CONTROLLER AND APP Does the Controller connect to Wi-Fi? Yes, the Controller can connect to your local Wi-Fi network: Press the Main screen icon to return to the Controller main screen. - Page 44 The Controller is displaying the code 88 and is unusable, what do I do? The Controller will display 88 on its menu display if there is a system error which prevents the use of the system. If you encounter an 88 error, contact your RV dealership for more assistance. I’ve left my RV on for a few days;...
- Page 45 Press to take the RVMaster out of standby mode and begin using the RVMaster App. I’ve launched the RVMaster App on my Controller but the app is not starting? If booting the RVMaster and the RVMaster App is then launched, wait three minutes for the Node to communicate to the Controller and for the app to start.
- Page 46 Press Storage. Press Clear Data and press OK at the prompt to clear the RVMaster App data. Return to the Main screen and relaunch the RVMaster App. I am receiving a shore power fault message, what do I do? If the Node has been connected to a faulty power source, the following error message will display on the Controller or RVMaster App: SHORE POWER FAULT! The power cord has been connected to a faulty power source.
-
Page 47: Pairing With The Node
PAIRING WITH THE NODE I tried pairing my smartphone to the Node but it didn’t connect? If pairing fails, before you attempt to pair your smartphone again: Toggle the smartphone’s Bluetooth off and on. Toggle the smartphone’s Airplane mode on and off. Restart the App. - Page 48 How do I clear the Node’s memory of all paired devices? Navigate to the PA function on the Controller display. Press and hold EXT for about 10 seconds until the number 1 scrolls across the Controller display. The Node is now clear of all connected devices. Pair the Controller and your device to the Node again.
-
Page 49: Switch
SWITCH I’ve replaced the Switch in my RV, but it doesn’t work? You need to pair the Switch to the Node before you can use the switch. The instructions are different depending on if you have a Display or a Controller as part of your system. -
Page 50: Specifications
SPECIFICATIONS NODE Input Voltage Range 8V to 15V DC Ambient Temperature -4°F to 140°F (-20°C to 60°C) IP Rating IP20 FCC 47 CR15.109, CAN ICES-3 (B) / NMB-3 (B), IEC 61000-4-2 Approvals Level III, IEC60068-2-27 Table A.1, IEC 60068-2-64 Spectrum A.3 Category 1 CONTROLLER Input Voltage Range... -
Page 52: Limited Warranty Terms And Conditions
• BMPRO will not be liable for any costs, charges or expenses incurred in the process of returning a product to initiate a warranty claim. - Page 54 BMPRO TEAM service@teambmpro.com BMPRO Unit 1, 821 E Windsor Ave, Elkhart IN 46514 USA .COM teambmpro.com...
