B-Tech BTF820 Installation Manual & Parts List

BTF820

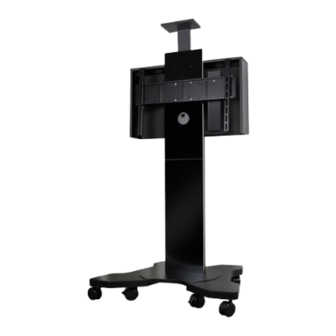

FLAT SCREEN / VIDEO CONFERENCING TROLLEY
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Trolley
PLEASE KEEP THIS FOR FUTURE REFERENCE
Installation Safety Notes....................................................................................................................2
Parts List............................................................................................................................................4
Installation Instructions......................................................................................................................6
Product Dimensions................................. ................................................... ......................................15
B-Tech Contact Details................................................................................ ......................................16
INSTALLATION TOOLS REQUIRED
B-TECH AUDIO VIDEO MOUNTS
All manuals and user guides at all-guides.com
FEATURES
• Recommended Screen Size: 39"- 80" (99cm - 203cm)
• Max load: 55kg
• Fits screens with VESA
• Dimensions: W: 850mm x D: 725mm x
• Braked castors and cable management
• Includes video conferencing camera shelf
• Includes video codec / AV player shelf located behind
• Multiple fixing points allow screens to be mounted
• Lateral adjustment of screen once mounted
CONTENTS
Crosshead
screwdriver
www.btechavmounts.com
patterns up to 600 x 400mm
H: Min. 1165mm - Max. 1315mm (to centre of mount)
the screen interface
at different heights
80"
(203cm)
8mm spanner or socket &
13mm spanner or socket
(for screens with M8 fixings)
®
and non-VESA mounting
55kg
