BTF840
UNIVERSAL FLAT SCREEN FLOOR STAND
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Floor Stand
PLEASE KEEP THIS FOR FUTURE REFERENCE
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
INSTALLATION TOOLS REQUIRED
FEATURES
Can also be bolted to the floor
fitted directly to the column
VESA
600
400
CONTENTS
Crosshead
screwdriver
B-TECH AV MOUNTS
www.btechavmounts.com
®
W.
H.1841mm D.
65"
x
165cm
Knife
(available separately) can be
70kg
TM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for B-Tech BTF840
Summary of Contents for B-Tech BTF840

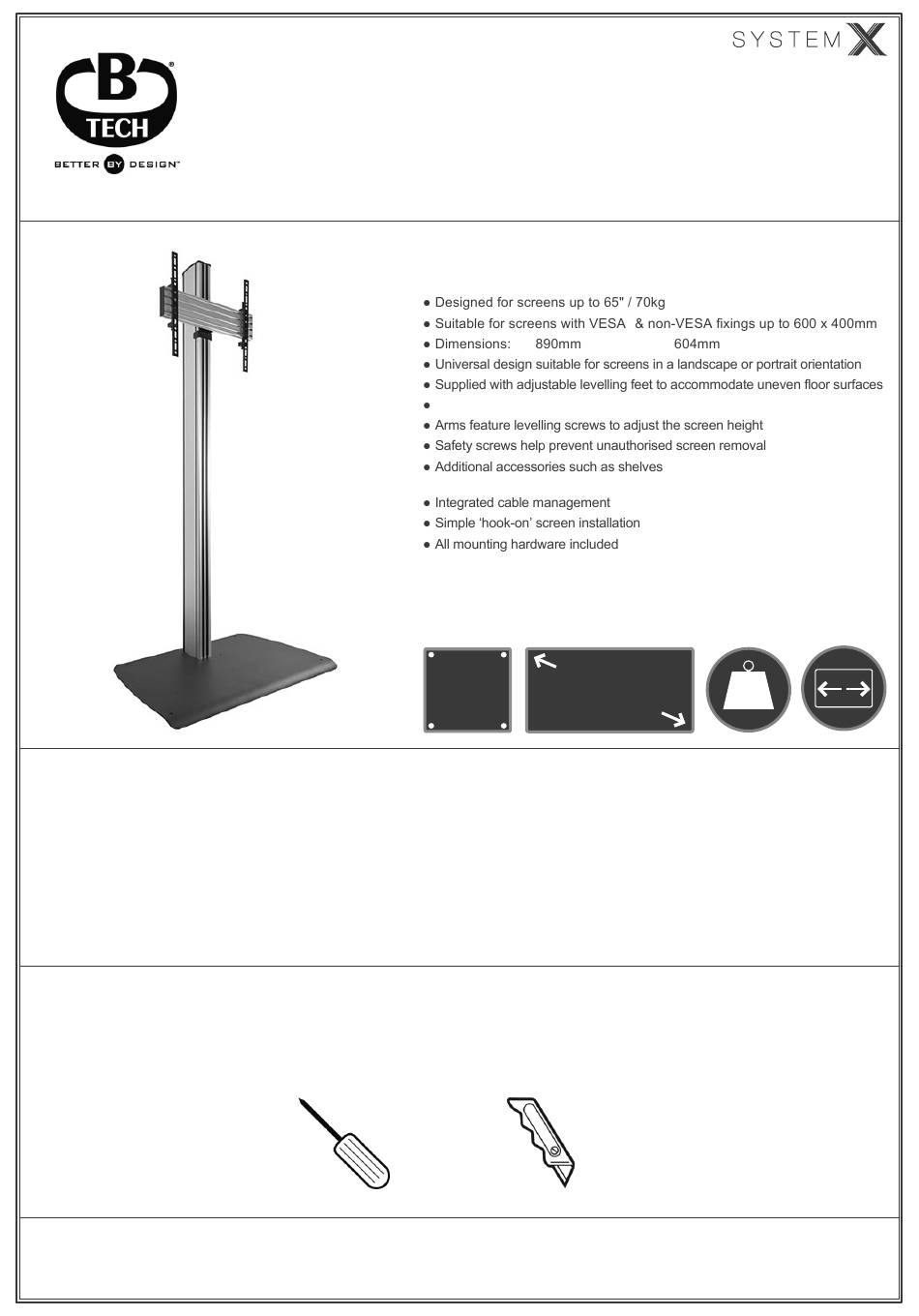

- Page 1 Can also be bolted to the floor (available separately) can be fitted directly to the column 65" VESA 70kg 165cm CONTENTS Installation Safety Notes........................2 Parts List.............................4 Installation Instructions........................6 Product Dimensions..........................11 B-Tech Contact Details........................12 INSTALLATION TOOLS REQUIRED Crosshead Knife screwdriver B-TECH AV MOUNTS www.btechavmounts.com...
- Page 4 BTF840 PARTS LIST...
- Page 5 Optional To fix a shelf to the column PART NAME FREE STANDING BASE HOLE CAP M8 WASHER M8 x 50mm SCREW 5AF HEX KEY 180cm VERTICAL COLUMN END CAP 180cm PLASTIC SLOT INSERT CABLE COVER M8 SLIDING NUT M8 x 16mm SCREW JOINING PLATE M8 SLIDING NUT M8 x 12mm SCREW...
- Page 8 Assemble Column to Base Attach the column (part 6) to the base (part 1) using the M8 washers (part 3), M8 x 50mm screws (part 4) and the 5AF hex key (part 5). Once base is fixed, return the stand to an upright position. Optional: Bolting stand to the floor Remove the hole caps (part 2) and adjustable rubber feet from the base (part 1).
- Page 12 B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Limited. B-Tech, Better By Design & System X are registered trademarks of B-Tech International Design and Manufacturing Limited. All other brands and product names are trademarks of their respective owners.
