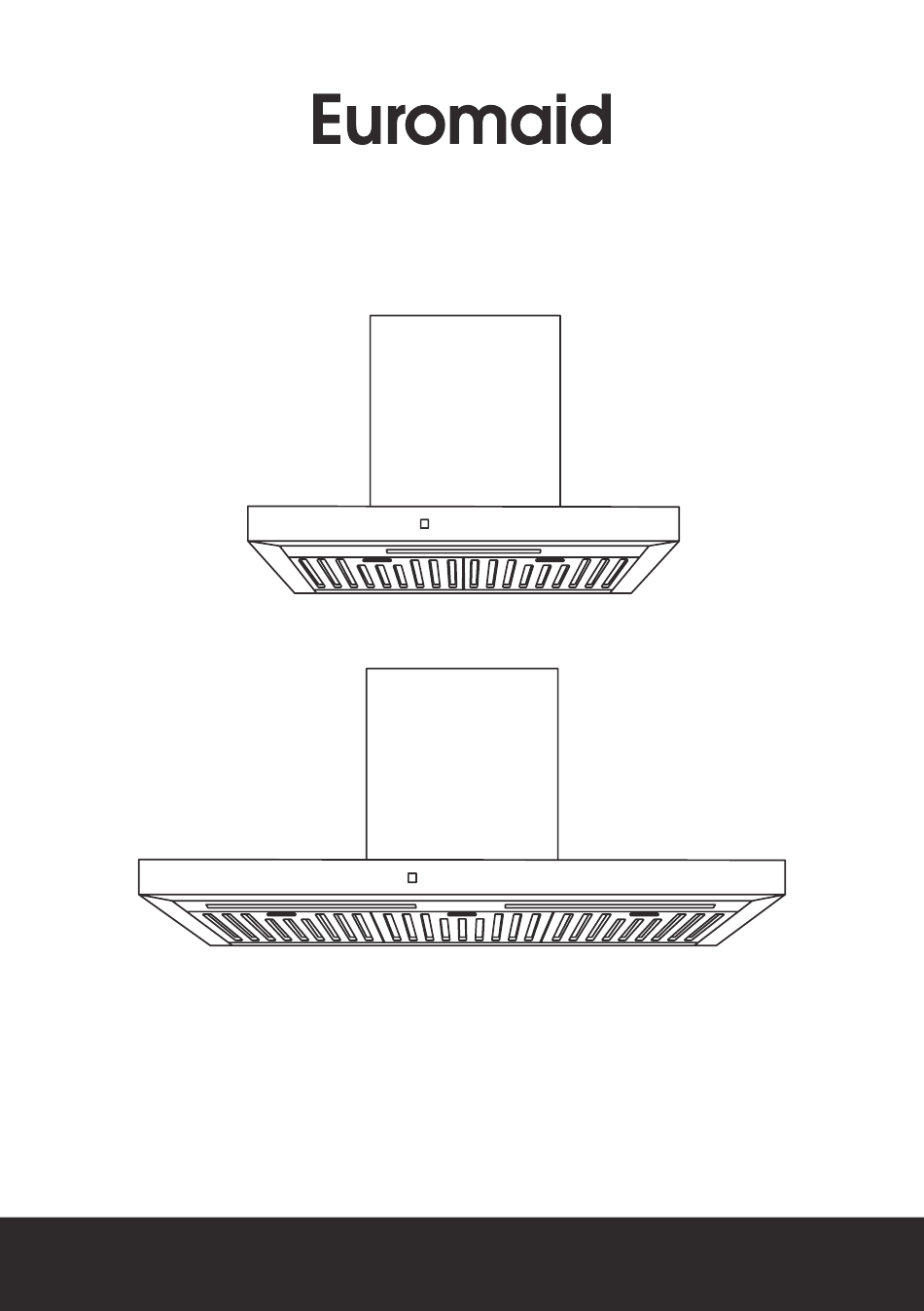

- Page 1 USER MANUAL RFT6MB / RFT9MB 60 / 90cm Flat Canopy Rangehood PLEASE READ THE USER MANUAL CAREFULLY BEFORE USING THE UNIT...
- Page 2 Dear Customer, Congratulations on the purchase of your new product from Euromaid. We recommend you please take some time to read the instruction manual thoroughly to familiarise yourself with the functionality and operations to ensure optimum performance of your new appliance.
-
Page 3: Table Of Contents
CONTENTS Safety Information ........................4 - 6 Warnings ............................Safety Precautions ........................... Product Use ............................Unpacking ............................Environment Protection ........................Product Overview ........................... Included in the Box .......................... Daily Use ............................ 8 - 9 Operating the Rangehood ......................Installation ..........................10 - 22 Electrical Connection ........................ -
Page 4: Safety Information
SAFETY INFORMATION We recommend that you read the instructions in this owner’s manual carefully before use for the best performance and to extend the life of your appliance. It will provide you with all the information you need to ensure its safe installation, use and maintenance. -
Page 5: Safety Precautions
SAFETY INFORMATION • If the power supply cord of this rangehood is damaged in any way, it must only be replaced by one of our authorised service agents. Please call or email our customer service team for further assistance. Contact details can be found on the back of this user manual. -
Page 6: Product Use
1.1 General Safety Warnings SAFETY INFORMATION 1. SAFETY INSTRUCTIONS Product Use This rangehood is designed to be used in households and for non-commercial uses such as: • Staff kitchen areas in shops, offices and other working environments. 1.1 General Safety Warnings 1. -
Page 7: Product Overview
PRODUCT OVERVIEW Flue Lights Control panel Baffle filters Included in the Box 1x rangehood 1x wall bracket (rangehood) 1x main flue (outer) 1x flue extension bracket 1x extension flue (inner) 1x stability bracket (main flue) 1x packet of fasteners, 1x user manual wall plugs and safety screws... -
Page 8: Daily Use
DAILY USE Operating the Rangehood Increase speed Countdown timer Light on / off LED display Decrease speed Power on / off Note: it is recommended to start the rangehood prior to commencing to cook and leave the rangehood in operation for 15 minutes after cooking is finished in order to eliminate cooking vapours and odours. - Page 9 DAILY USE Setting the Countdown Timer The rangehood features a countdown timer that will automatically turn off the motor and the lights after a set period of time. The timer has a fixed duration of 5 minutes. Whilst the rangehood is switched on and the motor is running, push countdown timer countdown timer button.
-
Page 10: Installation
INSTALLATION Electrical Connection Important! Assembly and electrical connections must be carried out by an authorised service agent. • The rangehood is fitted with a power cord and a 3-pin plug. Install the Rangehood so that the plug is easily accessible. •... -
Page 11: Rangehood Installation Height
INSTALLATION Rangehood Installation Height Minimum height from the cooktop surface to the underside face of the rangehood: 600mm electric cooktop 650mm Gas cooktop* *Measurement are from the top of the trivets, to the lowest part of the rangehood. Note: if the instructions for the gas cooktop specify a greater distance, this must be taken into account. -
Page 12: Ducting Options
INSTALLATION Ducting Options • Before beginning the installation of your rangehood, the method of ducting should be determined. The guide below illustrates the various ducting options to be considered. Ducting out through the roof Ducting out through the eave Ducting out through the wall Note: this rangehood model can be fitted with charcoal filters which absorb the odour and grease and allow for air to be recirculated back into the room although it is still... -
Page 13: Rangehood Installation (Ducted Method)
INSTALLATION Rangehood Installation (Ducted Method) • Check the area where the rangehood is to be fitted, to ensure that it is structurally sound and will support the weight of the appliance. Do not install direct onto plaster board using ‘Wall mates’ or other similar anchors. •... - Page 14 INSTALLATION Directly above the flue extension bracket, cut a 155mm diameter hole in the ceiling for ducting to pass through. The edge of the hole should start no further than 10mm away from the wall to ensure it is covered by the flue extension, once in place. Feed 150mm ducting down through the hole in the ceiling and leave loose until ready to connect to the outlet on the rangehood.
- Page 15 INSTALLATION Place the main flue with the stability bracket secured, onto the rangehood and mark (x), figure 5 on the wall the points where the bracket should be fixed and then remove the flue and set aside, ready for the next step. If required, place suitable fixings where the holes were marked, ready for installation of the stability bracket in step 10.
- Page 16 INSTALLATION Feed the ducting down from the ceiling and connect onto the outlet of the rangehood. The main flue will need to be maneuvered upwards in order to gain access to the outlet on the rangehood. Secure with a cable tie or duct tape, figure Secure both the stability bracket and the rangehood to the wall via figure...
-
Page 17: Rangehood Installation (Recirculating Method)
INSTALLATION Rangehood Installation (Recirculating Method) Note: IA150BRK Recirculation kit is required for the below steps • Check the area where the rangehood is to be fitted, to ensure that it is structurally sound and will support the weight of the appliance. Do not install direct onto plaster board using ‘Wall mates’... - Page 18 INSTALLATION Hang the rangehood on the wall by tilting it on a slight angle and lifting it onto the bracket so that protruding hooks interlock with the mounting figure holes at the back of the rangehood, Secure the stability bracket to the main flue using the supplied fixing screws, figure Place the main flue with the stability bracket secured, onto the rangehood and mark (x), figure 5...
- Page 19 INSTALLATION Attach the flexible ducting (included with the recirculation kit) to the figure outlet on the rangehood and secure with the included cable tie, figure 7. Place the flue set onto Slide the flue extension into the main flue, the rangehood allowing it to sit loosely on top of the rangehood but not figure locked into position, Flue...
- Page 20 INSTALLATION Attach the loose end of the ducting to the inlet of the T-shape deflector using a cable tie. Now fix the deflector to the flue extension with 2 screws on figure 9. either side. Ensure ducting is pulled tight and the excess is removed, Secure both the stability bracket and the rangehood to the wall via figure 10.
- Page 21 INSTALLATION Plug in the rangehood to a pre-existing GPO. If a GPO is required, ensure one is installed by a qualified electrician and is placed within dimensions of the flue, so it is hidden from view. Finally slide the upper flue (extension) up into place and secure to the bracket installed in step 2 via a fixing screw each side of the flue, figure...
-
Page 22: Carbon Installation And Changeover
INSTALLATION Carbon Installation and Changeover (Recirculating Mode Only) Note: A set of the CF110 Carbon Filters is required for the below steps. • If the recirculating installation is utilised then a carbon filter must be fitted to aid in the removal of grease, smoke and cooking odours from the air before it is recirculated into the room. -
Page 23: Cleaning & Maintenance
CLEANING & MAINTENANCE Cleaning the Rangehood • To ensure the rangehood continues to operate effectively, regular maintenance and cleaning is required. • Before maintenance or cleaning is carried out, the rangehood should be disconnected from the mains power supply. Ensure that the rangehood is switched off at the wall socket and the plug removed. -
Page 24: Troubleshooting
TROUBLESHOOTING Problem Possible cause Solution Lights on but Motor has failed Contact service agent motor is not Possible PCB issue Contact service agent working Disconnect power and Fan is obstructed clear any obstructions Lights and motor House fuses blown Reset / replace fuses not working Mains power cable is Refit mains power... -
Page 25: Product Information
PRODUCT INFORMATION Climate class RFT6MB RFT9MB Ducted outlet size (mm) Carbon filter CF110 (sold separately) Recirculating kit IA150GRK (sold separately) Flue extensions IAFXMBE1 - 900mm (sold separately) Voltage 220 - 240V ~ / 50Hz Extraction 1000m Light power 1 x 3.5W LED strip 2x 3.5W LED strips... -
Page 26: Manufacturer Guarantee
New Zealand by Glen Dimplex New Zealand Limited NZBN 9429000069823 (Phone number 09 274 8265) in respect of the Euromaid product. 1. Euromaid Express Warranty Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within:... - Page 27 MANUFACTURER GUARANTEE 2. Warranty Exclusions This express warranty does not apply where: The product has been installed, used or operated otherwise than in accordance with the product manual or other similar documentation provided to you with the product; The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons,...
- Page 28 MANUFACTURER GUARANTEE 4. How to Make a Claim You may make a claim under this warranty through our website, contacting our customer care line or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at the end of this document. To make a valid claim under this warranty, you must: Lodge the claim with us as soon as possible and no later than 14 days after you first become aware of the breakdown;...
- Page 29 NOTES...
- Page 30 NOTES...
- Page 31 READ THE INSTRUCTION BOOKLET BEFORE INSTALLING & USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
- Page 32 | euromaid.co.nz...
