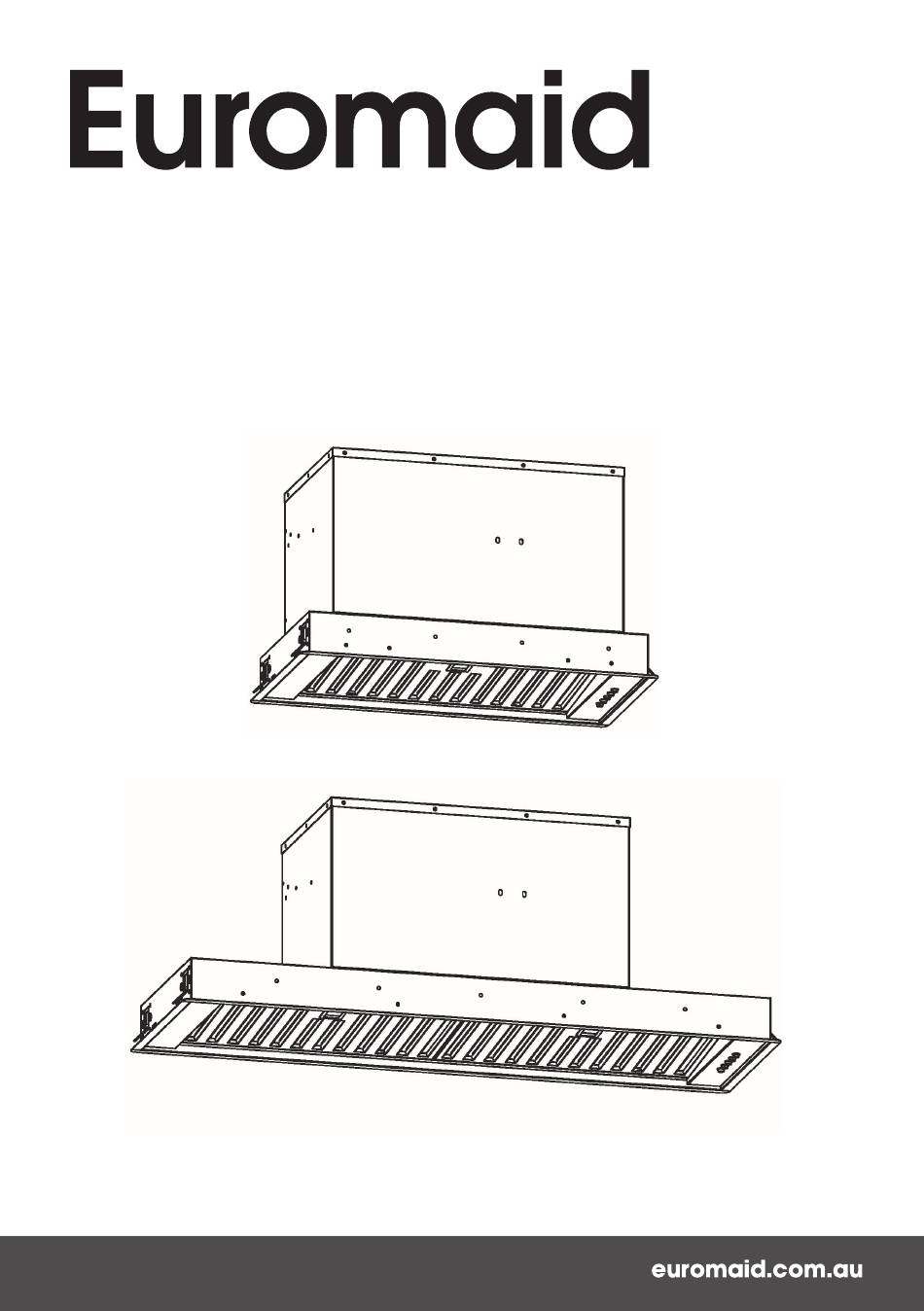

- Page 1 User Manual UCB52S - 52cm Stainless Steel Undermount UCB85S - 85cm Stainless Steel Undermount...
-
Page 2: Table Of Contents
Content 1…………………………………..………………………………Safety instructions 2…………………………………..………………………………Installation 3…………………………………..………………………………Start using your Rangehood 4…………………………………..………………………………Troubleshooting 5…………………………………..………………………………Maintenance and cleaning 6…………………………………..………………………………Environment protection... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS This manual explains the proper installation and use of your Rangehood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. These instructions shall also be available in an alternative format, e.g. on a website. Do not do the following: ●... - Page 4 ● ● There shall be adequate ventilation of the This appliance is not intended for use room when the range hood is used at the by persons (including children) with same time as appliances burning gas or reduced physical, sensory or mental other fuels.
- Page 5 3. Put the hood into the cupboard, tighten up the screws by screwdriver, and make sure the hood was fixed. 4. Install the expansion pipe:Dress the expansion pipe onto the outlet and tie it tight with cable tie,then lead it to outdoor.
- Page 6 WARNING: For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
-
Page 7: Start Using Your Rangehood
Start Using Your Rangehood Electronic button 1. Power on: Press power button one time, its indicator light will be lit, the hood works at low speed, indicator light of low speed will be bright Power off: Press power button again to close it, indicator light will off. All the function operation of the hood will be closed, the hood enters into standby mode. -
Page 8: Troubleshooting
TROUBLESHOOTING Fault Possible Cause Solution Fan switch turned off Select a fan switch position. Light on, but motor Fan switch failed Contact service center. does not work Motor failed Contact service center. House fuses blown Reset/Replace fuses. Light does not work, Refit cord to power outlet. - Page 9 Important Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee. GREASE MESH FILTERS The mesh filters can be cleaned by hand.
- Page 10 5. Connect the light wire and assemble the panel by screw. See pic below. • ILCOS D code for this lamp is: DSL-4-S-350 (52cm); DSL-7-S-650(85cm) – Max wattage: 4W(52cm);7 W(85cm) – Voltage range: DC 12V...
-
Page 11: Environment Protection
ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances. - Page 12 Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within: a) In the case of Euromaid products used for personal, domestic or household purposes, a period of 2 years from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand.
- Page 13 c) The repair relates to the replacement of consumable parts such as fuses and bulbs or any other parts of the product which require routine replacement; d) You are unable to provide us with reasonable proof of purchase for the product; e) the breakdown occurs after the expiry of the express warranty period set out in section 1 or the product was not purchased in Australia / New Zealand as a brand-new product.
- Page 14 5. Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
- Page 15 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________...
- Page 16 READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
