Arduino Uno Manual page 6

•
3 x 6 Header (White/Red/Black)
•
A0 / 5V / Ground
•
A1 / 5V / Ground
•
A2 / 5V / Ground
•
A3 / 5V / Ground
•
A4 / 5V / Ground
•
A5 / 5V / Ground

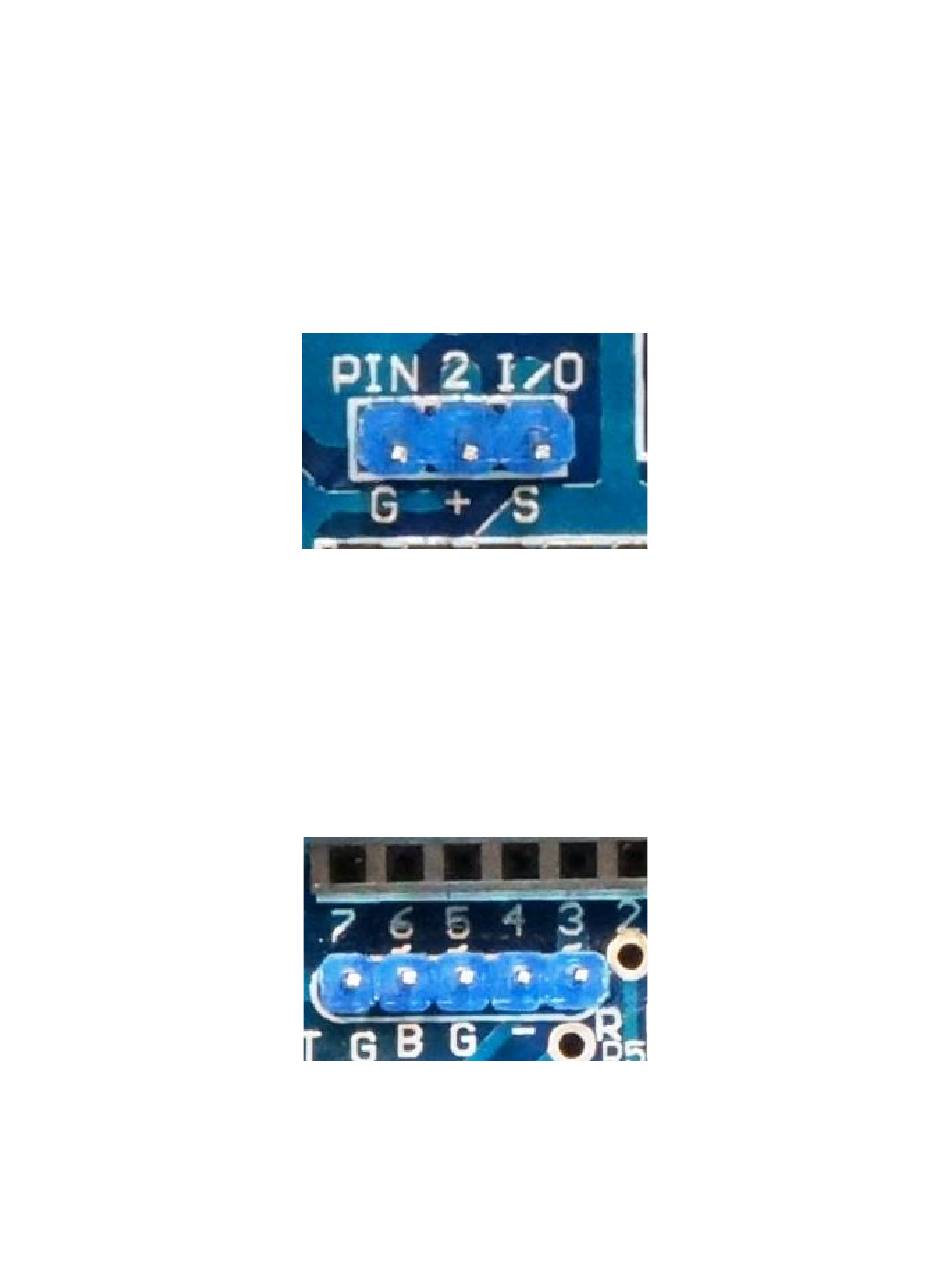

There is also a 3-pin blue header that that brings out 5V, ground and D2 that can be used for a digital sensor
or other remote connection
•
1 x 3 Header (Blue)
•
G = Ground
•
'+' = 5V
•
S = D2 – digital I/O
•
RGB LED
And for good measure, there is a 5-pin header that brings out D3, D5, D6, 5V and Ground. This puts 3
PWM outputs along with power and ground on a single connector which can be handy for several things
like driving an RGB LED.
•
1 x 5 Header (Blue)
•
' ' = 5V – This pin is unmarked but sits next to D7
•
B = D6 – B could be used for Blue on RGB LED
•
G = D5 – G could be used for Green on RGB LED
•
'-' = Ground
