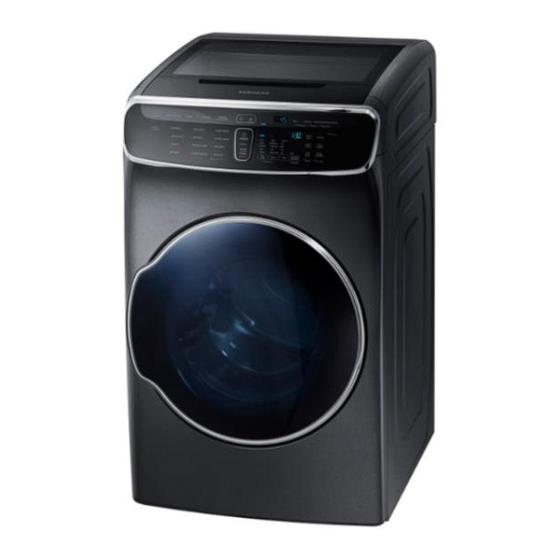

Samsung M9900 Training Manual

Hide thumbs

Table Of Contents

Quick Links

DV*60M9900*

DV*55M9600*

This document can not be used without Samsung's authorization"

M9900/M9600

Training Manual

BASIC MODEL

DM9900M

DM9600M

SAMSUNG

PJT(DRYER)

MODEL CODE

MODEL NAME

DVE60M9900V/A3

DVE60M9900V

DVE60M9900W/A3

DVE60M9900W

DVG60M9900V/A3

DVG60M9900V

DVG60M9900W/A3

DVG60M9900W

DVE60M9900V/AC

DVE60M9900V

DVE55M9600V/A3

DVE55M9600V

DVE55M9600W/A3

DVE55M9600W

DVG55M9600V/A3

DVG55M9600V

DVG55M9600W/A3

DVG55M9600W

DVE55M9600V/AC

DVE55M9600V

Table of Contents

Need help?

Do you have a question about the M9900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Samsung M9900

Page 1 BASIC MODEL MODEL CODE MODEL NAME DVE60M9900V/A3 DVE60M9900V DVE60M9900W/A3 DVE60M9900W DVG60M9900V/A3 DVG60M9900V DM9900M DVG60M9900W/A3 DVG60M9900W DVE60M9900V/AC DVE60M9900V DVE55M9600V/A3 DVE55M9600V DVE55M9600W/A3 DVE55M9600W DVG55M9600V/A3 DVG55M9600V DM9600M DVG55M9600W/A3 DVG55M9600W DVE55M9600V/AC DVE55M9600V DV*60M9900* DV*55M9600* “ This document can not be used without Samsung's authorization”...
Page 2: Table Of Contents
Contents Safety Warning Product Introduction: 8-14 Changed Part list: 15-17 Instruction Of Function: 18-26 Test Mode & Error Check: 27-34 Reference Information: 35-54 Disassembly & Reassembly: 56-72 “ This document can not be used without Samsung's authorization”...
Page 3: Safety Warning
Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire. • To reduce the risk of severe injury or death, follow all installation instructions. “ This document can not be used without Samsung's authorization”...
Page 4 • Do not dry items containing foam rubber (may be labeled latex foam) or similarly textured rubber- like materials on a heat setting. Heated foam rubber materials can, under certain circumstances, produce fire by spontaneous combustion. “ This document can not be used without Samsung's authorization”...
Page 5 • If you cannot reach your gas supplier, call the fire department. • Installation and service must be performed by a qualified installer, service agency, or the gas supplier. “ This document can not be used without Samsung's authorization”...
Page 6 10. Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or published in the user-repair instructions that you understand and have the skills to carry out. “ This document can not be used without Samsung's authorization”...
Page 7 20. Gas leaks may occur in your system, resulting in a dangerous situation. 21. Gas leaks may not be detected by smell alone. 22. Gas suppliers recommend you purchase and install a UL-approved gas detector. “ This document can not be used without Samsung's authorization”...
Page 8: Product Introduction
 Smart Care  Vent Sensor  Steam Cycle Main  Sanitize Cycle Feature  Energy Saving  Time Saving  Easy Reversible Door  4-way Vent(Elec.)  Wi-fi Embedded “ This document can not be used without Samsung's authorization”...
Page 9 You can install the exhaust vent in the following four (4) positions: back, either side, 4-way Vent(Elec.) bottom. You can use “Delicate dry” with tumble dry. Samsung dryer can save your clothes damage by high Delicate Dry temperature heat. “...
Page 10 27 X 32.5 X 46.9 27 X 32.4 X 38.7 Cycle time Performance 75 min 75 min (AHAM 8lbs) Door Crystal Blue (TOC) Chrome Trim Control Panel Appearance Display Color Black Caviar Black Caviar “ This document can not be used without Samsung's authorization”...
Page 11 Vent Exhaust (Electric / Gas) 4 ways / 3 ways 4 ways / 3 ways Heater (Elec dryer only) Dual Dual Panel Deco Chrome Door Crystal Blue(Blue TOC) White TOC “ This document can not be used without Samsung's authorization”...
Page 12 Delicates Time Dry Manual Air Fluff Eco Dry Adjust Time (Up) Adjust Time (Down) Anti Static Mixed Load Bell Smart Control/Monitor Smart Care Drum Light Child Lock Sound Wrinkle Prevent “ This document can not be used without Samsung's authorization”...
Page 13 Upper: 600W / Lower: 5300 W Heater Rating Gas (BTU/hr) 22000 Note: “A. Height” Spec can vary from 46.9 to 47.4 inches (119.2- 120.4 cm) depending on the leveling feet adjustments. “ This document can not be used without Samsung's authorization”...
Page 14 2. Product introduction Options Specifications Item Code Remarks Manual-Users DC68-03381F DM9900M Manual-Users DC68-03382C (TECH) “Y”-connector Short inlet hose * Wi-fi Embedded DC97-15103 DC97-15249A “ This document can not be used without Samsung's authorization”...
Page 15: Changed Part List
3. Changed Parts List Control Panel DV6500K DM9900M Remark Assy Panel Control “ This document can not be used without Samsung's authorization”...
Page 16 3. Changed Parts List Assy Frame Case DV6500K DM9900M Remark “ This document can not be used without Samsung's authorization”...
Page 17 3. Changed Parts List Assy Frame DV6500K DM9900M Remark Assy Frame “ This document can not be used without Samsung's authorization”...
Page 18 3. Changed Parts List Assy Frame Front DV6500K DM9900M Remark “ This document can not be used without Samsung's authorization”...
Page 19 3. Changed Parts List Assy Basket DV6500K DM9900M Remark “ This document can not be used without Samsung's authorization”...
Page 20 3. Changed Parts List Assy Die Rack Dry DV6500K DM9900M Remark “ This document can not be used without Samsung's authorization”...
Page 21 3. Changed Parts List Assy Duct Exhaust(Dual) DV6500K DM9900M Remark “ This document can not be used without Samsung's authorization”...
Page 22 3. Changed Parts List Assy Duct Heater (Dual) DV6500K DM9900M Remark “ This document can not be used without Samsung's authorization”...
Page 23 3. Changed Parts List Assy Door DV6500K DM9900M Remark “ This document can not be used without Samsung's authorization”...
Page 24: Instruction Of Function
• The Damp dry level is designed to partially dry items. Use for items that lay flat or hang to dry. NOTE This option is not available with: ACTIVE WEAR, and STEAM SANITIZE. “ This document can not be used without Samsung's authorization”...
Page 25 12 Adjust Time change the cycle time, press Adjust Time or Adjust Time until the desired time is displayed. After you have inserted the Smart Home Adapter and connected the lower dryer to your home network using the Samsung 13 Smart Smart Home app, you can control the dryer remotely.
Page 26 TIME DRY - You can specify a cycle time in minutes. If TIME DRY is selected, the Eco Dry function is enabled by default. For more information, see Eco Dry in the Control panel section. AIR FLUFF- The AIR FLUFF cycle tumbles the load in room temperature air. “ This document can not be used without Samsung's authorization”...
Page 27 • The Damp dry level is designed to partially dry items. Use for items that lay flat or hang to dry. Press Temp. to change the temperature of the current cycle. 06 Air Dry High: For sturdy cottons or those labeled Tumble Dry. “ This document can not be used without Samsung's authorization”...
Page 28 Adjust Time until the desired time is displayed. After connecting the Tumble Dryer to your home network using the Samsung Smart Home app, 13 Smart Control you can control or monitor the dryer remotely. When started, the Smart Control (Smart Monitor) Elec,) / Smart indicator blinks and the door locks.
Page 29 UNDERGARMENT - For heat-sensitive items at a low drying temperature such as underwear, blouses, and lingerie Cycle Selector SWEATER - For washable sweaters (block to shape and lay flat on rack). ACCESSORY - For stuffed toys (cotton or polyester fiber-filled). “ This document can not be used without Samsung's authorization”...
Page 30 • Press and hold Dry Level and Temp. (or Time+ and Air Dry for the Delicate Dryer) for 3 seconds to deactivate, and then press and hold the buttons again for 3 seconds to release Child Lock. The door unlocks and the Child Lock indicator turns off. “ This document can not be used without Samsung's authorization”...
Page 31 • To mute the alarm sound or beep from the dryer, press and hold Mixed Load Bell for 3 seconds. To unmute, press and hold the button for 3 seconds again. “ This document can not be used without Samsung's authorization”...
Page 32 The Smart Care function helps you diagnose and troubleshoot your dryer if it has an issue to check. To enable this function, you must first download the Samsung Smart Dryer app from the Play Store or the Apple Store, and install it on a mobile device that has a builtin camera. The Smart Care function has been optimized for: Galaxy and iPhone series devices.
Page 33 4. Instruction of Function Smart Control (monitor) Using Samsung Smart Home, you can control your dryer from your smart device remotely. For improved performance, the content and design of the app is subject to change without notice. [Getting Started] 1. Launch the Samsung Smart Home App on your smartphone.
Page 34: Test Mode & Error Check
- Check if the display PCB is loose or short. - Check if you are using regular power source 1 FC Invalid power source frequency. frequencies. - Check the power frequency sensor circuit. “ This document can not be used without Samsung's authorization”...
Page 35 PBA ↔Tumble Dryer MAIN PBA)] - Make sure the gas valve is unlocked. - Make sure the filter is unclogged. Gas ignition fails. - Make sure the plumbing is not disconnected or clogged. “ This document can not be used without Samsung's authorization”...
Page 36: Reference Information
• Check that the dryer is draining properly to extract adequate water from the load. • Load may be too small to tumble properly. Add a few towels. “ This document can not be used without Samsung's authorization”...
Page 37 Has an odor. tumbler, and exhausts it outside. • When these odors linger in the air, ventilate the room completely before using the dryer. “ This document can not be used without Samsung's authorization”...
Page 38 • This is steam condensation. The dripping water will stop after a short time. when Steam-Care starts Sprayed water is not visible • Sprayed water is difficult to see when the door is closed. during Steam-Care “ This document can not be used without Samsung's authorization”...
Page 39 6. Reference Information Wiring Diagram Elec Models Gas Models “ This document can not be used without Samsung's authorization”...
Page 40 Less than 1 Ω Belt Switch Check across terminals switch closed Check across terminals switch open Infinity BE L T C U T -O F F S /W 125V , 15A “ This document can not be used without Samsung's authorization”...
Page 41 (Gas) Thermostat Cut Off Less than 1 Ω Thermostat 3 Unplug connector and measure its resistance 320°F/160°C, 25A 10 Ω Heater 230V / 4700W Unplug connectors and test Heater terminals “ This document can not be used without Samsung's authorization”...
Page 42 ⑤ ① PIN1 → PIN3 PIN6 → PIN1 PIN8 → PIN1 ⑩ ⑥ PIN7 → PIN1 PIN6 → PIN1 ② ⑦ PIN1 → PIN3 PIN4 → PIN6 ⑧ ③ ⑨ “ This document can not be used without Samsung's authorization”...
Page 43 C om m unic a tion C onne c tor T he conne c tor us e d for Uppe r Ma in (U A R T ) com m unic a tion “ This document can not be used without Samsung's authorization”...
Page 44 6. Reference Information Schematic Diagram of Lower Main PBA “ This document can not be used without Samsung's authorization”...
Page 45 6. Comm_option_02 1. Steam Valve 1 2. NC 3. Steam Valve 1 4. NC 5. Steam Valve 2 RY402 RY403 6. NC Heater 1 Relay Switch Heater 2 Relay Switch “ This document can not be used without Samsung's authorization”...
Page 46 6. Reference Information Upper Main PBA Layout ⑤ PIN8 → PIN1 ④ PIN7 → PIN1 ③ ① ② PIN6 → PIN1 PIN1 → PIN3 PIN2 → PIN1 PIN4 → PIN6...
Page 47 C N 2 0 1 S m a rt T e s t C onne c tor T he conne c tor us e d for S m a rt te s t “ This document can not be used without Samsung's authorization”...
Page 48 6. Reference Information Schematic Diagram of Upper Main PBA Layout “ This document can not be used without Samsung's authorization”...
Page 49 1. AC MOTOR LV3 3. GND 1. NE 2. N.C 4. 5V_MAIN 2. NE-RELAY 5. TX 3. AC MOTOR LV1 4. PTC 6. RX 5. N.C 6. AC MOTOR LV2 “ This document can not be used without Samsung's authorization”...
Page 50 6. Reference Information Sub PBA Layout ⑤ PIN4 → PIN1 PIN8 → PIN1 ② ④ PIN10 → PIN1 PIN3 → PIN1 ③ ⑥ PIN5 → PIN1 ① “ This document can not be used without Samsung's authorization”...
Page 51 Wi-F i C O MMU N IC A T IO N T his port ca n conne c t S m a rt H om e ada pte r. C N 8 0 2 “ This document can not be used without Samsung's authorization”...
Page 52 6. Reference Information Schematic Diagram of Sub PBA “ This document can not be used without Samsung's authorization”...
Page 53 7. Power Key 2 10. N.C Main 8. N.C CN301 1. Drum Light 2. N.C 3. +12V CN802 1. Wi-Fi RXD 2. Wi-Fi TXD 3. Wi-Fi RESET 4. GND 5. +12V “ This document can not be used without Samsung's authorization”...
Page 54 Q. My dryer seems to run longer than I careful to avoid overloading your dryer. For best drying expect. Why? results, avoid mixing heavy and lightweight items in the same load. “ This document can not be used without Samsung's authorization”...
Page 55 6. Reference Information Nomenclature “ This document can not be used without Samsung's authorization”...
Page 56: Disassembly & Reassembly
1. Remove ASSY LID T.C and GUIDE PIN 2. On backside of dryer, remove 3 screws from the COVER T.C COVER T.C 3. Lift up backside of COVER T.C upside, and slide COVER T.C forward simultaneously “ This document can not be used without Samsung's authorization”...
Page 57 7. Remove 2 screws as shown. 8. Disconnect all connections between wire and electrical device. 9. Then you can pull out ASSY MOTOR from dryer. 10. Remove 12 screws as Figure shown. 11. Remove MOTOR “ This document can not be used without Samsung's authorization”...
Page 58 1. Remove 4 screws on backside of dryer 2. Remove 2ea of CAP SCREW and screws on PANEL ASSY DUAL MODULE 3. Pull PANEL CONTROL forward 4. Disconnect all connections and remove PANEL CONTROL “ This document can not be used without Samsung's authorization”...
Page 59 7. Disassembly & Reassembly PART NAME DESCRIPTION FIGURE 5. Open the door and remove 8 screws as shown 6. Close the door 7. Tilt Frame front forward Note) If you remove Frame front with door-opened, it can damage dryer or wire 8.
Page 60 PART NAME DESCRIPTION FIGURE 10. Remove 6 screws on FRAME PLATE-UP ASSY DUAL MODULE 11. Remove all connections from right side wire branch. 12. Remove ASSY DUAL MODULE as shown. “ This document can not be used without Samsung's authorization”...
Page 61 2. Remove all connection and 2 screws 1. Remove ASSY DUAL MODULE PLATE TOP & FRAME PLATE LOW 2. Remove 8 screws as shown. 3. Remove PLATE TOP and FRAME PLATE-LOW “ This document can not be used without Samsung's authorization”...
Page 62 7. Disassembly & Reassembly PART NAME DESCRIPTION FIGURE 1. Remove 4 screws between BASKET-BRACKET FRAME BASKET 2. Remove FRAME PLATE-UP. 3. Remove BRACKET FRAME from the hook (on both side) “ This document can not be used without Samsung's authorization”...
Page 63 7. Disassembly & Reassembly PART NAME DESCRIPTION FIGURE 4. Remove ASSY HOLDER RACK-FLIP with flat head screwdriver (on both side) BASKET 5. Lift up and remove BASKET “ This document can not be used without Samsung's authorization”...
Page 64 Moisture Sensor & 4.Remove Front Panel. Incandescent Lamp 5.Remove 1 fixing screws from Touch Sensor & Removal Touch Sensor. ■ After reassembly check the Touch Sensor work properly through test mode. “ This document can not be used without Samsung's authorization”...
Page 65 * Carefully spread the cabinet as needed to get extra clearance. But, take care not to deform the cabinet. Front & Rear Roller 1.After remove Holder-Shaft, separate each Roller. (After removing Rear Bulkhead) “ This document can not be used without Samsung's authorization”...
Page 66 1.After remove Drum, do the following. 2.Remove the 2 screws from Duct Connector. 3.Separate Duct Connector Motor/Blower 4.Remove 1 Housing Motor Assembly (1) 5.Remove 2 Housing Belt Cut Off Switch 6.Remove 3 Screw from Motor-Bracket “ This document can not be used without Samsung's authorization”...
Page 67 Assembly (2) 12.Remove 2 Spring Plate Using a long-nose plier. 13.Remove 1 Screw Belt Cut Off Switch 14.Remove Holder Shaft and Roller-Idler. ■ After reassembly check the Motor work properly “ This document can not be used without Samsung's authorization”...
Page 68 1.Remove 9 screws at the back of the unit and 2 screws at the Valve-Water. 2.Separate the Cover-Valve 3.Remove the terminal from the valve-Water Drum-back 4.Separate Assy-Drum Back in Frame. “ This document can not be used without Samsung's authorization”...
Page 69 Vent Duct 3.Remove the Duct-Exhaust. 1.Remove each securing screws to remove Sensors each of the sensors. (Thermostat, For differences between Gas and Electric, Thermistor, refer to 5-3. Component Check. Radiant/Flame) “ This document can not be used without Samsung's authorization”...
Page 70 7. Disassembly & Reassembly PART NAME DESCRIPTION FIGURE 1.After separate Motor, Duct-Fan, do the following. 2.Remove 6 Housing Heater-Terminals Heater Assembly (ELECTRIC MODEL) 3.Remove 1 screw from Heater Die. 4.Separate Heater in Drum-Back. “ This document can not be used without Samsung's authorization”...
Page 71 1. Remove 10 screws Holder-Glass 2. Remove Door Cover 3. Remove 4 screw Support-Hinge Disassembly 4. Remove Support-Hinge, Hinge-Door. 5. Remove Door Seal ■ After reassembly check the door opened and closed properly. “ This document can not be used without Samsung's authorization”...
