Eden 94150EDAMZ Manual

41.5"
(105cm)
27.5"
(70cm)
Quick Connect Starter Set
ts standard garden
hoses and watering tools

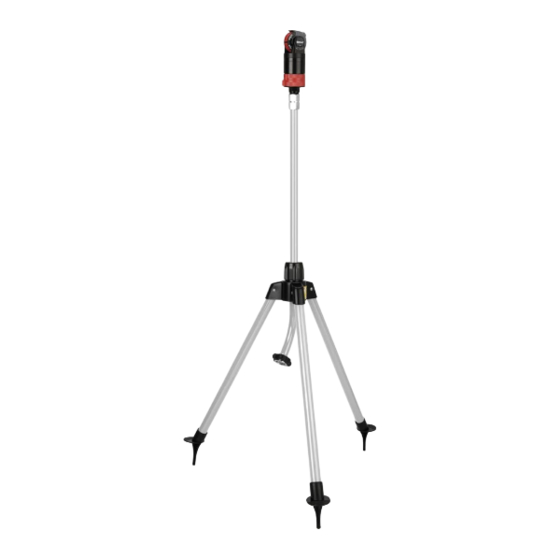

MULTI-PATTERN SPRINKLER PLUS MISTING SYSTEM
Step 1
Place the tripod in the area
where you want to water.
Push down on the tripod legs
until the spikes are well
seated in the ground.
(Follow the yellow warning
sign on the tripod to avoid
pinching your thumb)
Step 2
Simply attach the sprinkler head to the top of the Tripod
(do not overtighen).
Step 3
Use the Quick Connect to easily connect and disconnect the sprinkler from the hose.
Connect the Product Adapter to the base of the sprinkler. Attach the lockable Quick Connect
to the end of the hose, then simply snap in the hose to the sprinkler to begin using.
Note: If you are not using
the Quick Connect System,
simply connect the sprinkler
directly to the hose.
Spray Coverage and
Distance Adjustment
Adjust the range tabs and angle cap to change
the spray coverage(from 5° up to 360°) and
spraying angle to water just where you need.
Spray Pattern Adjustments
Depending on your watering needs, you can manually select from the
various pattern settings:
FLAT - The at pattern will provide a at wave of water.
FAN - The fan pattern disperses water in a wide fan shape.
MIST - This pattern is useful to cool down a small area.
LARGE - This provides a larger watering spray area.
MULTI - This is a combination of the Flat, Fan and Large patterns.
94150EDAMZ
