Eden 94123-EDAMZ Quick Start Manual

4 spray patterns to meet all
your watering needs -
at, fan, mini and large
Flow through design allows
for additional units to be
connected in series
(Max. suggested sprinklers in
tandem: 3)
Wide H shape
platform design
for more stability
For setup, you can choose Method A or B
Method A
Simply attach the gear drive sprinkler to the top of the
base and connect to your hose.
Method B
Connect the adapter to
the base, attach the hose
with the quick lockable
connector , then simply
snap in the water hose to
assembled sprinkler.
To extend, simply remove the back stop end-cap and
attach another hose and connect another sprinkler.

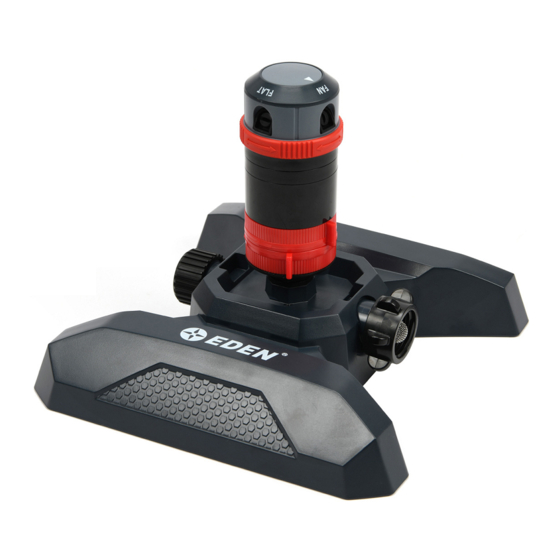

4-PATTERN MOBILE ROTARY
GEAR DRVIE SPRINKLER
Spray coverage - adjust the
range tabs to change the
spray from 5° to 360°
Hose connection -
added lter to prevent
water sediment
LOCK
WATER
Quick Connect Adapter ts
all standard garden hoses
+
94123-EDAMZ
