Eden 94152EDAMZ Quick Start Manual

Eden 94152EDAMZ Quick Start Manual

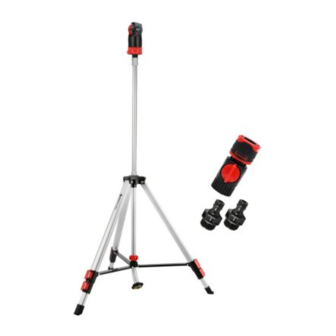

Multi-pattern sprinkler plus misting system with telescoping tripod

Advertisement

Quick Links

63.7"
(162cm)
43.7"
(111cm)
18.7"
(47.5cm)
Premium Quick Connect
Starter Set
ts standard garden
hoses and watering tools
MULTI-PATTERN SPRINKLER PLUS MISTING SYSTEM
WITH TELESCOPING TRIPOD
Step 1
Place the tripod in the area
where you want to water.
Open the latches to release
the legs. Push down on the
tripod legs until the legs are
well seated in the ground.
Step 2
Attach the Extension Tube to the tripod, then
connect the sprinkler head to the top of the
Tripod or Extension Tube (do not overtighen).
Step 3
Use the Quick Connect to easily connect and disconnect the sprinkler from the hose.
Connect the Product Adapter to the base of the sprinkler. Attach the lockable Quick Connect
to the end of the hose, then simply snap in the hose to the sprinkler to begin using.
Note: If you are not using
the Quick Connect System,
simply connect the sprinkler
directly to the hose.
Spray Coverage and
Distance Adjustment
Adjust the range tabs and angle cap to change
the spray coverage(from 5° up to 360°) and
spraying angle to water just where you need.
Spray Pattern Adjustments
Depending on your watering needs, you can manually select from the
various pattern settings:
FLAT - The at pattern will provide a at wave of water.
FAN - The fan pattern disperses water in a wide fan shape.
MIST - This pattern is useful to cool down a small area.
LARGE - This provides a larger watering spray area.
MULTI - This is a combination of the Flat, Fan and Large patterns.
MINI - Provides delicate plant watering
94152EDAMZ

Advertisement

loading
Need help?

Need help?

Do you have a question about the 94152EDAMZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Eden 94152EDAMZ

  • Page 1 94152EDAMZ MULTI-PATTERN SPRINKLER PLUS MISTING SYSTEM WITH TELESCOPING TRIPOD 63.7” (162cm) Step 1 Place the tripod in the area where you want to water. Open the latches to release the legs. Push down on the tripod legs until the legs are well seated in the ground.
  • Page 2 94152EDAMZ Level Adjustment Indicator Move the angle cap to control the distance of your watering area. The higher level will create a higher arc for greater water coverage. The lower level will reduce the watering area. Convenient indicators help you remember your settings for next time.
