Eden 95124EDAMZ Quick Start Manual

Spraying width tabs (2)-
control the width of the
watering area
Water ow control knob-
adjusts overall watering area
Wide "H" shape platform
design with added weight
for more stability
Assembly
Simply attach the sprinkler head to the top of the base.
Hold the bottom of the sprinkler head and base of the
sprinkler to tighten by hand (do not overtighten).
Connect the Hose
Use the Quick Connect System to easily connect and
disconnect the sprinkler from the hose. Connect the
Product Adapter to the base of the sprinkler. Attach the
lockable Quick Connect to the end of the hose, then
simply snap in the hose to the sprinkler to begin using.
Use the additional included Product Adapter for your
nozzles, wands, or other watering tools to switch
between tools, even with the water running.
Note: If you are not using the Quick Connect System,
simply connect the sprinkler directly to the hose.

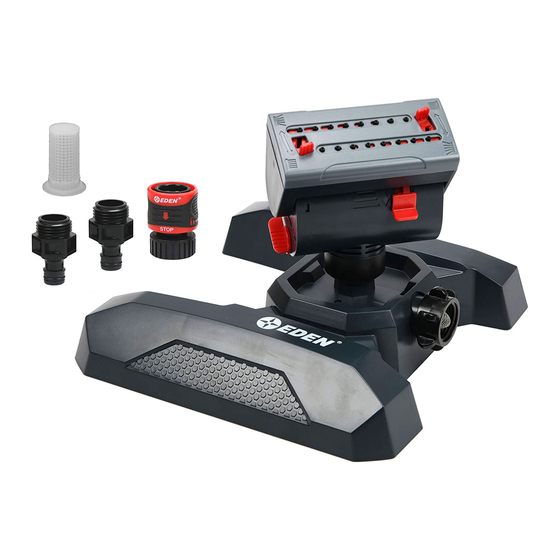

MINI OSCILLATING SPRINKLER
with HEAVYWEIGHT BASE
16 Spray nozzles for even watering
Spraying range tabs (2)-
control the length of the
watering area
360° rotating head controls spray direction
Hose end connector with
added lter to prevent water
sediment and dirt from
reaching sprinkler
95124EDAMZ
Added replacement lter
Quick Connect Starter Set
ts all standard garden hoses
and watering tools
LOCK
+
WATER
