Eden 94154EDAMZ Quick Start Manual

4-WAY ADJUSTABLE MINI OSCILLATING SPRINKLER
Tripod
length
63.7"
(162cm)
Step 1
Place the tripod in the area where you
want to water. Open the latches to
release the legs. Push down on the
tripod legs until the legs are well seated
in the ground.
43.7"
(111cm)
18.7"
(47.5cm)
Spray Width tabs (2) control
the width of the watering area
20 clog-resistant spray nozzles for even watering
Spray Range tabs (2) control the length of
the watering area
360° adjustable radius neck controls spray direction
Water ow control knob
adjusts the overall watering area
Step 2
Attach the Extension Tube to the tripod, then
connect the sprinkler head to the top of the
Tripod or Extension Tube (do not overtighen).
Step 3
Use the Quick Connect to easily connect and disconnect the sprinkler from the hose.
Connect the Product Adapter to the base of the sprinkler. Attach the lockable Quick Connect
to the end of the hose, then simply snap in the hose to the sprinkler to begin using.
Note: If you are not using the
Quick Connect System,
simply connect the sprinkler
directly to the hose.

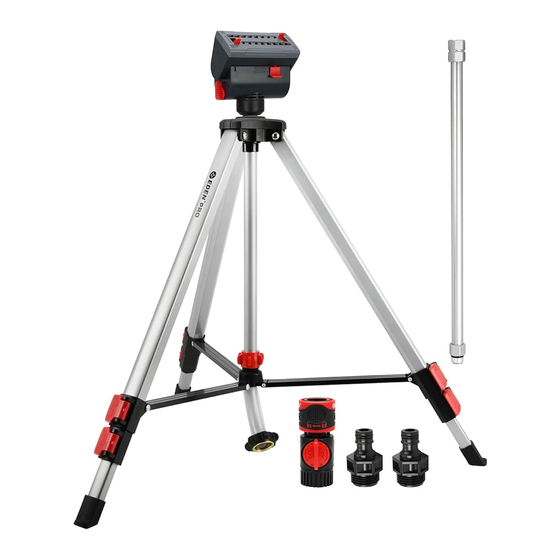

WITH TELESCOPING TRIPOD
Premium Quick Connect
Starter Set
ts standard garden
hoses and watering tools
94154EDAMZ
