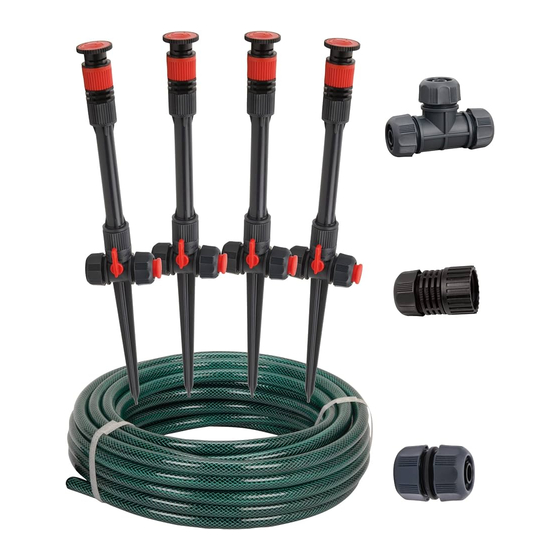

Flex design sprinkler & hose set with hose mender

Advertisement

Flex Design Sprinkler & Hose Set with Hose Mender
Place your multi-adjustable sprinklers
throughout your garden to get water right
where you want it. Once the system is in
place, use a programmable water timer to set
a watering schedule and let your system do
all the work. The system is completely
modular and can grow with your needs.

Get Started:

Attach the garden hose
to the Hose Connector

Connect the Sprinklers:

Cut the hose to match the
distance between sprinklers
Hose connector for
unit-to-unit connections
Connect the hose
Place the sprinklers in the
to your faucet or
area you want to water
water timer
Attach the hoses to the
sprinkler by unscrewing the
side hose connector
Adjustable spray angle and direction
5" extensions to water over taller plants
Flow control and shut o at each sprinkler
Convenient STOP end cap
Sturdy spikes can be easily
placed into the soil
1/2" 50 ft. garden hose
Space sprinklers 3 - 13 ft. (1 - 4m) apart for best
coverage. Each sprinkler waters up to 32 ft.
diameter (10m)
Best Distance 3-13ft (1-4m)
Insert the hose into the
side hose connection then
tighten the connector
98063EDAMZ
T-Connector
Hose Connector
Hose Extender /
Hose Repair
Apply STOP End Cap
at the end of circuit
STOP End Cap
