- Page 1 WTX500 Service Manual Part Number: 4031.006 NEVER COMPROMISE...
- Page 2 WTX500 Service Manual Table of Contents Section 1 Overview Page 3 Section 2 Specifications Page 4 Section 3 Schematic Page 5 Section 4 PC Board Layout Page 6-7 Section 5 Parts List Page 8-11 NEVER COMPROMISE...

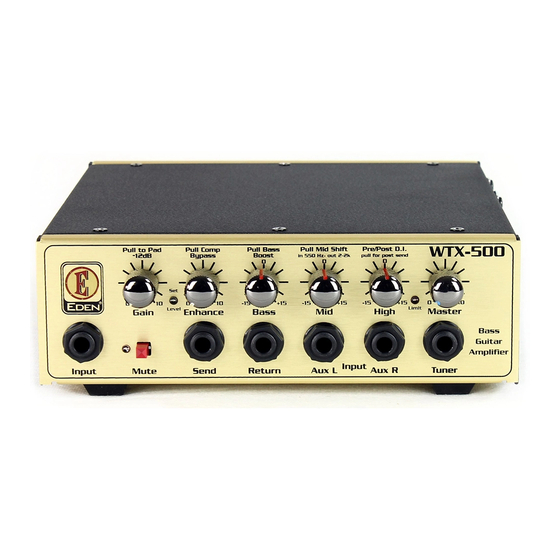

- Page 3 2. Gain - Controls the preamp level of your amplifier. Pull to activate the Pad circuit. 3. Set Level LED - Indicates when the auto-compressor would be active if not bypassed. 4. Enhance - Eden tailored EQ modifier, adjust this to shape your overall EQ. Pull to bypass the internal compressor circuit.
- Page 4 WTX500 Service Manual Section 2 Specifications Output Power: 500 watts @ 4 ohms (45vrms) 10% THD Input: -44.5dB Aux In: -19.5dB Return: -25.5dB Tuner Out: -43.5dB Send: -25.5dB Bandwidth: 35Hz - 20KHz (+/-3dB) Phones Output: 100mv @ 8 ohms Weight: 4.3lbs Dimensions: 8”W x 2.5”H x 9”D Below Tests conditions: Input 1KHz Square wave, controls all centered except the control being tested.
- Page 5 WTX500 Service Manual NEVER COMPROMISE...
- Page 6 WTX500 Service Manual Section 4 Preamp PC Board Layout NEVER COMPROMISE...
- Page 7 WTX500 Service Manual Section 4 Preamp PC Board Layout NEVER COMPROMISE...
- Page 8 1-16-000461 Screw, Machine English 6*25BM 1-17-000497 Shield WTX500-4 KITS-70404 Rubber Feet SF-006 3M KITS-70405 Knob RKN-42 1-24-000066 Plexiglass logo WT-3 EDEN 14mm, 22*22mm KITS-70457 Cable Ties 3*100mm ASSY-70016 PC Board, Rear Panel E110092 KITS-70002 Potentiometer RA16N1-W10K-L15KC/DCS/41PC/NS/GN VR1 DI Output Level 1-01-000514 Resistor, Power 270! 5 Watt ±5%...
- Page 9 WTX500 Service Manual MODEL: WTX500 PARTS LIST Item # Part no. Material Name Specifications Qty Unit Remark KITS-70186 Capacitor, Ceramic 0.01uF 1Kvdc +80/-20% 1-04-000151 Jack, XLR DY-04 90°/CT3-06M-EP J2,3,4,5 Spkr Outs, Phones, KITS-70290 Jack, 1/4" P/6180 LJB0661-G06/K6J50-AA-6-G Footswitch KITS-70321 Switch, Push KAN2-Z2 ASSY-70022 PC Board, Upper Preamp E110090 WTX500...
- Page 10 WTX500 Service Manual MODEL: WTX500 PARTS LIST Item # Part no. Material Name Specifications Qty Unit Remark KITS-70166 Capacitor, Electrolytic 0.47uF 50vdc ±20% 5!*11mm C25,26 KITS-70167 Capacitor, Electrolytic 1uF 50vdc ±20% 5!*11mm C17,27 KITS-70168 Capacitor, Electrolytic 2.2uF 50vdc ±20% 5!*11mm C4,5,6,11,38,39 KITS-70169 Capacitor, Electrolytic 3.3uF 50vdc ±20% 5!*11mm...
- Page 11 WTX500 Service Manual MODEL: WTX500 PARTS LIST Item # Part no. Material Name Specifications Qty Unit Remark KITS-70058 Resistor, Carbon Film 1K! 1/4 Watt ±5% R5,49 KITS-70065 Resistor, Carbon Film 3.3K! 1/4 Watt ±5% R1A,R4 KITS-70070 Resistor, Carbon Film 6.8K! 1/4 Watt ±5% R188 KITS-70072 Resistor, Carbon Film 10K! 1/4 Watt ±5%...
