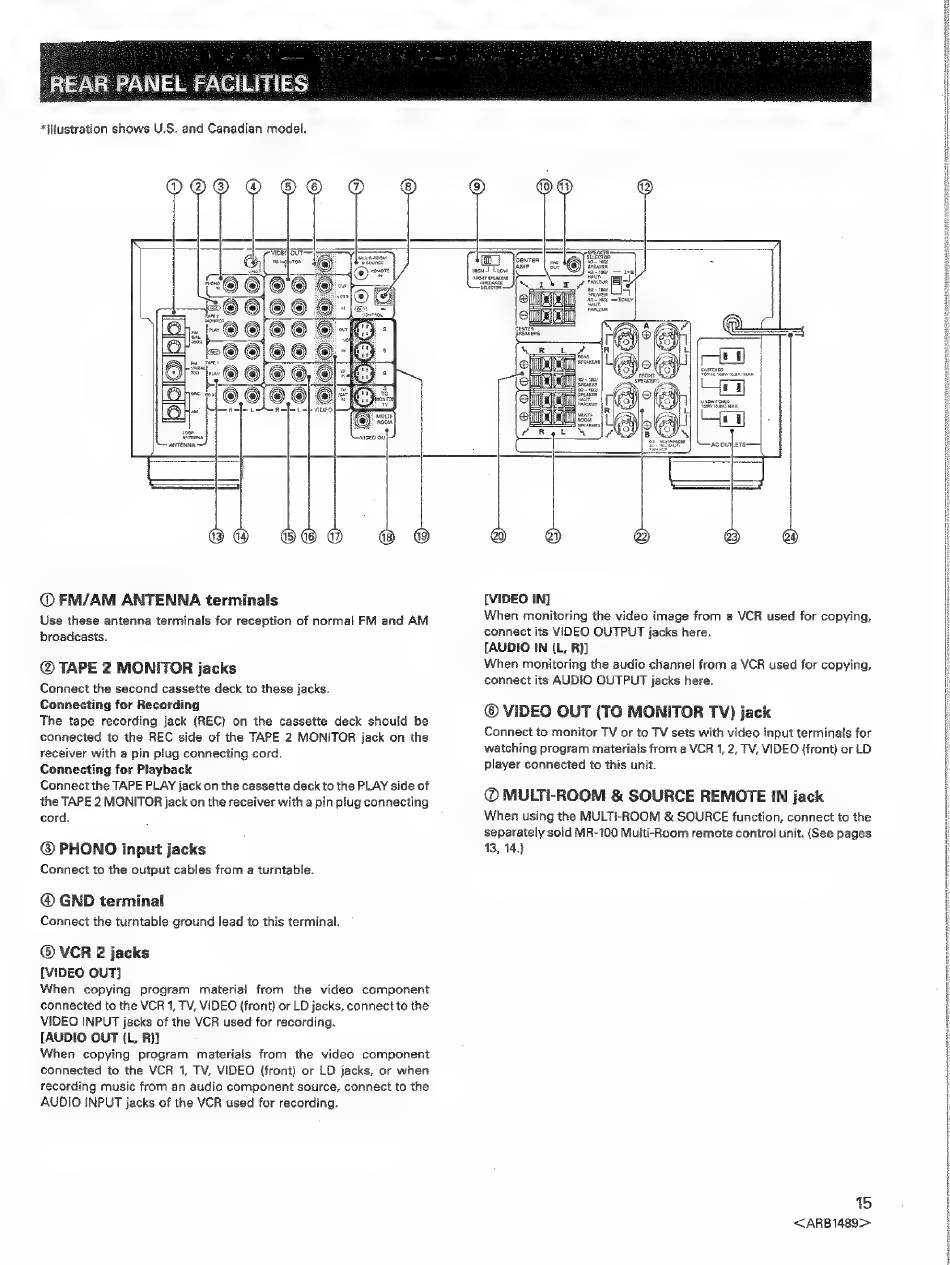

REAR PANEL FACILITIES
*Iustration shows U.S. and Canadian model.
@ FM/AM ANTENNA terminals
Use these antenna terminals for reception of normal FM and AM
broadcasts.
@ TAPE 2 MONITOR jacks
Connect the second cassette deck to these jacks.
Connecting for Recording
The tape recording jack (REC) on the cassette deck should be
connected to the REC side of the TAPE 2 MONITOR
jack on the
receiver with a pin plug connecting cord.
Connecting for Playback
Connect the TAPE PLAY jack on the cassette deck to the PLAY side of
the TAPE 2 MONITOR jack on the receiver with a pin plug connecting
cord.
@ PHONO input jacks
Connect to the output cables from a turntable.
@ GND terminal
Connect the turntable ground lead to this terminal.
® VCR 2 jacks
[VIDEO OUT]
When
copying
program
material
from
the
video
component
connected to the VCR 14, TV, VIDEO {front} or LD jacks, connect to the
VIDEO INPUT jacks of the VCR used for recording.
[AUDIO OUT (L, R)}
When
copying
program
materials from the video component
connected to the VCR 1, TV, VIDEO (front) or LD jacks, or when
recording music from an audio component source, connect to the
AUDIO INPUT jacks of the VCR used for recording.
==
i)
i)
SS wcoamaune f
L_fa7g]
[VIDEO IN]
When monitoring the video image from a VCR used for copying,
connect its VIDEO OUTPUT jacks here.
[AUDIO IN (L, R}]
When monitoring the audio channel from a VCR used for copying,
connect its AUDIO OUTPUT jacks here.
© VIDEO OUT (TO MONITOR TV) jack
Connect to monitor TV or to TV sets with video input terminals for
watching program materiais from a VCR 1, 2, TV, VIDEO (front) or LD
player connected to this unit.
@ MULTI-ROOM & SOURCE REMOTE IN jack
When using the MULTI-ROOM & SOURCE function, connect to the
separately sold MR-100 Muiti-Room remote control unit. (See pages
13, 14.)
15
<ARB1489>
