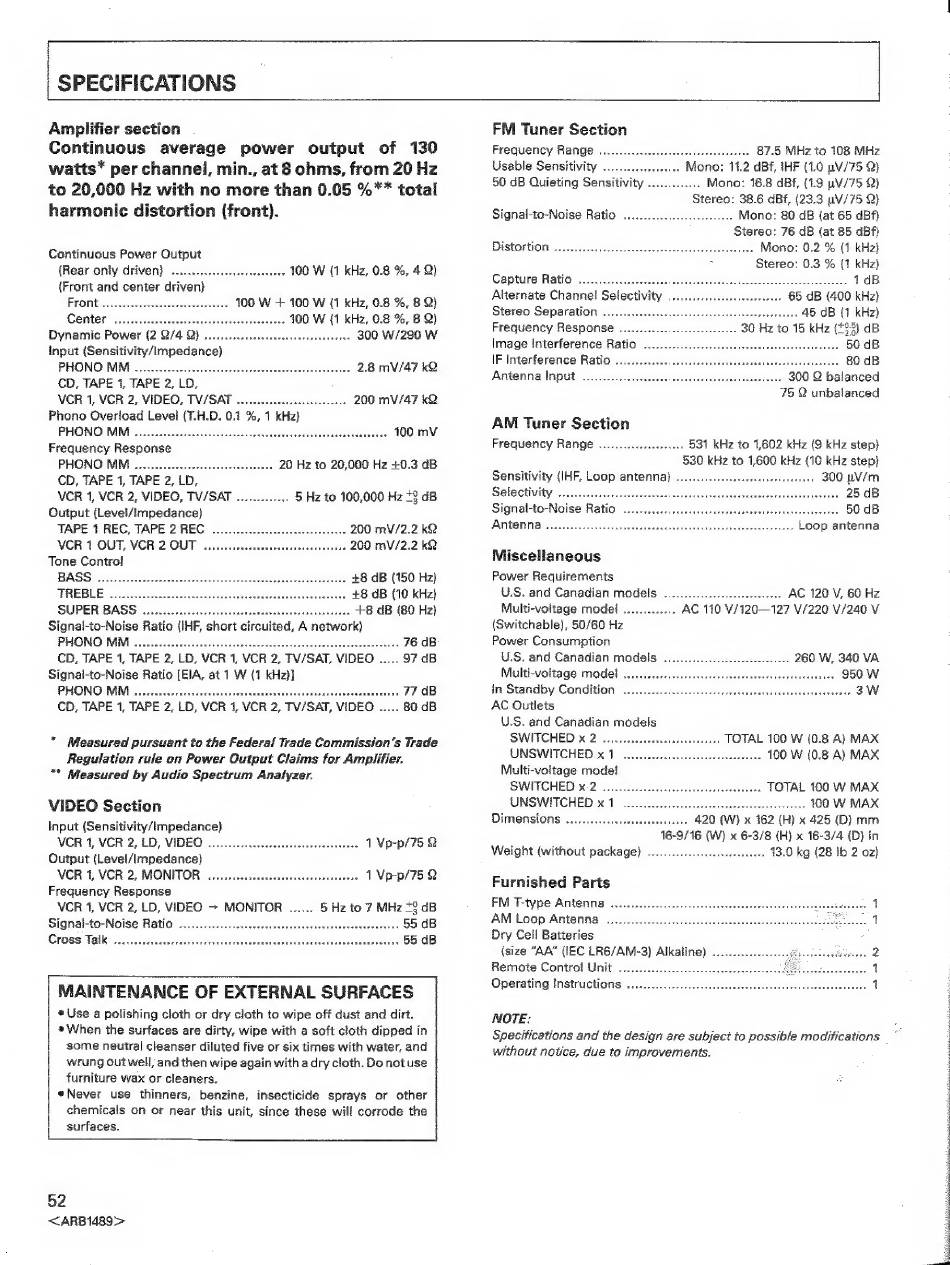

SPECIFICATIONS
Amplifier section
Continuous average power output of 130
watts* per channel, min., at 8 ohms, from 20 Hz
to 20,000 Hz with no more than 0.05 %** total
harmonic distortion (front).
Continuous Power Output
{Rear only driven) ooo... ceeeeensereeeeneee 100 W (1 kHz, 0.8 %, 4 Q)
(Front and center driven}
Front .... . 100 W + 100 W (1 kHz, 0.8 %, 8 Q)
Center . 400 W (1 kHz, 0.8 %, 8 Q)
Dynamic Power (2 82/4 Q) .. . 300 W/290 W
Input (Sensitivity/Impedance)
PHONO MM ..... 0... ecceesereereresneererseseernreeceneneee 2.8 mV/47 kQ
CD, TAPE 1, TAPE 2, LD,
VCR 1, VCR 2, VIDEO, TV/SAT ... ce ceeeceeceeeeee 200 mV/47 kQ
Phono Overload Level (T.H.D. 0.1 %, 1 kHz}
BHONO:MIM soci ascpusstesietst its is 22. 2etyecwegteptecntatectastessrtss 100 mV
Frequency Response
PHONO MM ......ccccesseeresssererreeeeeenee 20 Hz to 20,000 Hz +0.3 dB
CD, TAPE 1, TAPE 2, LD,
VCR 1, VCR 2, VIDEO, TV/SAT .........--. 5 Hz to 100,000 Hz +8 dB
Output (Level/impedance)
TAPE 1 REC, TAPE 2 REC 200 mV/2.2 kQ
VCR 1 OUT, VCR 2 OUT .. - 200 mV/2.2 kQ
Tone Control
BASS +8 dB (150 Hz}
TREBLE .. +8 dB (10 kHz)
SUPER BASS scisnccsisecctuecevsvssdedvavénsanideadeauetaderent +8 dB (80 Hz)
Signal-to-Noise Ratio (IHF, short circuited, A network)
PHONG! ssdcicicavincscattesecevatedas coisas seccasvasdcnsegeacageodstises 76 dB
CD, TAPE 1, TAPE 2, LD, VCR 1, VCR 2, TV/SAT, VIDEO ..... 97 dB
Signal-to-Noise Ratio [EIA, at 1 W (1 kHz)]
PHONO MM ..
CD, TAPE 1, TAI
.
Measured pursuant to the Federal Trade Commission's Trade
Regulation rule on Pewer Output Claims for Amplifier.
** Measured by Audio Spectrum Analyzer.
VIDEO Section
Input (Sensitivity/Impedance)
VCR 1, VCR 2, LD, VIDEO ooo... csccccseerensenreetsernes 1 Vp-p/75 Q
Output (Level/Impedance)
VCR 1, VCR 2, MONITOR ooo... cccsssecccestereceesreseetene 1 Vp-p/75 2
Frequency Response
VCR 1, VCR 2, LD, VIDEO ~ MONITOR
Signal-to-Noise Ratio
Cross Taik
. 5 Hz to 7 MHz +2 dB
MAINTENANCE OF EXTERNAL SURFACES
® Use a polishing cloth or dry cloth to wipe off dust and dirt.
When the surfaces are dirty, wipe with a soft cloth dipped in
some neutral cleanser diluted five or six times with water, and
wrung out well, and then wipe again with a dry cloth. Do not use
furniture wax or cleaners.
Never use thinners, benzine, insecticide sprays or other
chemicals on or near this unit, since these will corrode the
surfaces,
52
<ARB1489>
FM Tuner Section
Frequency Range ..
Usable Sensitivity .
87.5 MHz to 108 MHz
. Mono: 11.2 dBf, IHF (1.0 uV/75 Q)
50 dB Quieting Sensitivity ............. Mono: 16.8 dBf, (1.9 wV/75 Q)
Stereo: 38.6 dBf, (23.3 wV/75 Q)
Signai-to-Noise Ratio ..............ceeeee Mono: 80 dB (at 65 dBf}
Stereo: 76 dB (at 85 dBf}
DISHOMION: sos. castes tev teens tis oie deed nensiecaess Mono: 0.2 % (1 kHz}
. Stereo: 0.3 % (1 kHz)
Capture Ratio
Alternate Channel Sele
Stereo Separation .
Frequency Response
Image Interference Ratio
IF Interference Ratio .
Antenna Input
1dB
65 dB (400 kHz)
.- 45 dB (7 kHz)
30 Hz to 15 kHz (+25) dB
50 dB
80 dB
300 Q balanced
75 Q unbalanced
AM Tuner Section
Frequency Range ......cceeee eee 531 kHz to 1,602 kHz (9 kHz step)
530 kHz to 1,600 kHz (10 kHz step)
Sensitivity (IHF, Loop antenna) .................. » 300 pV/m
Selectivity ......... . 25 dB
Signal-to-Noise R: . 5008
Antenna Loop antenna
Miscellaneous
Power Requirements
U.S. and Canadian models ...........00:cceeeeeeee AC 120 V, 60 Hz
Multi-voltage model ............. AC 110 V/120—127 V/220 V/240 V
(Switchable), 50/60 Hz
Power Consumption
U.S. and Canadian models . 260 W, 340 VA
Multi-voltage model .. , 950 W
in Standby Condition ..
AC Outlets
U.S. and Canadian models
SWITCHED x 2 ....
UNSWITCHED x 1 ..
Multi-voitage model
SWITCHED x2. TOTAL 100 W MAX
UNSWITCHED 54. 2oesc.s jos stseness vtsasseveassiaeeoetee 100 W MAX
Dimensions 420 {(W) x 162 (H) x 425 (DB) mm
16-9/16 (W) x 6-3/8 (H) x 16-3/4 (D) in
Weight (without package) 00.00... eereeeee 13.0 kg (28 tb 2 oz)
.. TOTAL 100 W (0.8 A) MAX
100 W (0.8 A) MAX
Furnished Parts
PM T-type: Antenna? stiicesase secs chee lenh i itecsed deselect RRA 1
AM Loop Antenna .........eecscccscsscsessssssesssscssseavesssssence See 1
Dry Cell Batteries
(size "AA" (IEC LR6/AM-3) Alkaline) ....... car's
Remote Control Unit ...
Operating Instructions .
NOTE:
Specifications and the design are subject to possible modifications _
without notice, due to improvements.
