7 USB Connector

The UNO R4 WiFi has one USB-C® port, used to power and program your board as well as sending & receiving
serial communication.
Note: The board should not be powered with more than 5 V via the USB-C® port.

8 LED Matrix

The UNO R4 WiFi features a 12x8 matrix of red LEDs (U_LEDMATRIX), connected using the technique known as
charlieplexing.
The following pins on the RA4M1 MCU are used for the matrix:
P003
P004
P011
P012
P013
P015
P204
P205
P206
P212
P213
12 / 23

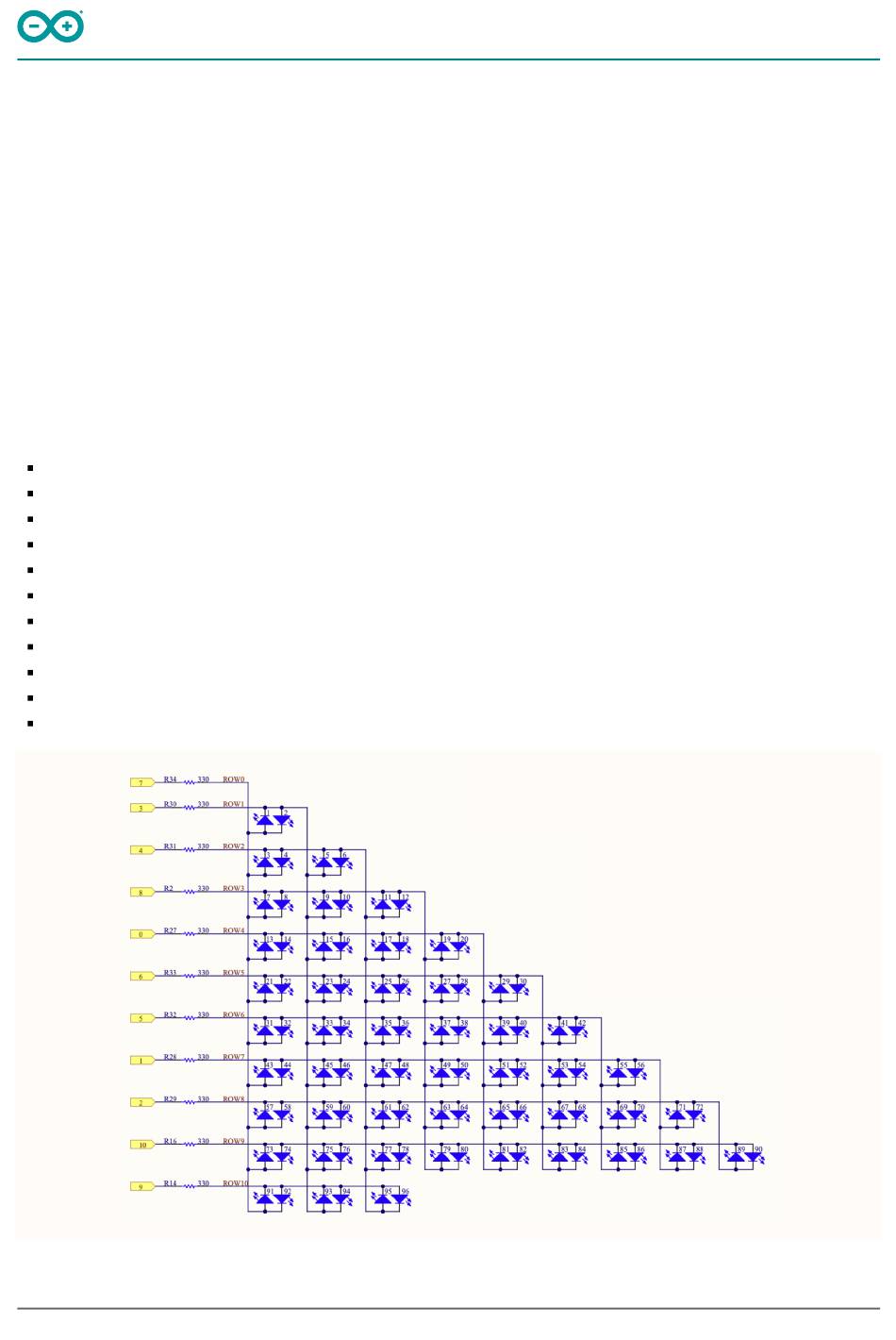

LED matrix schematics.
