Midea 1217G1S Instruction Manual

Midea 1217G1S Instruction Manual

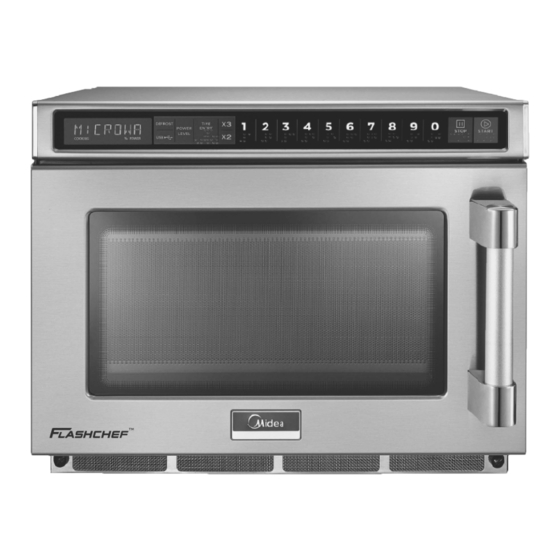

Commercial microwave oven
Hide thumbs Also See for 1217G1S:
Table of Contents

Advertisement

Quick Links

Download this manual

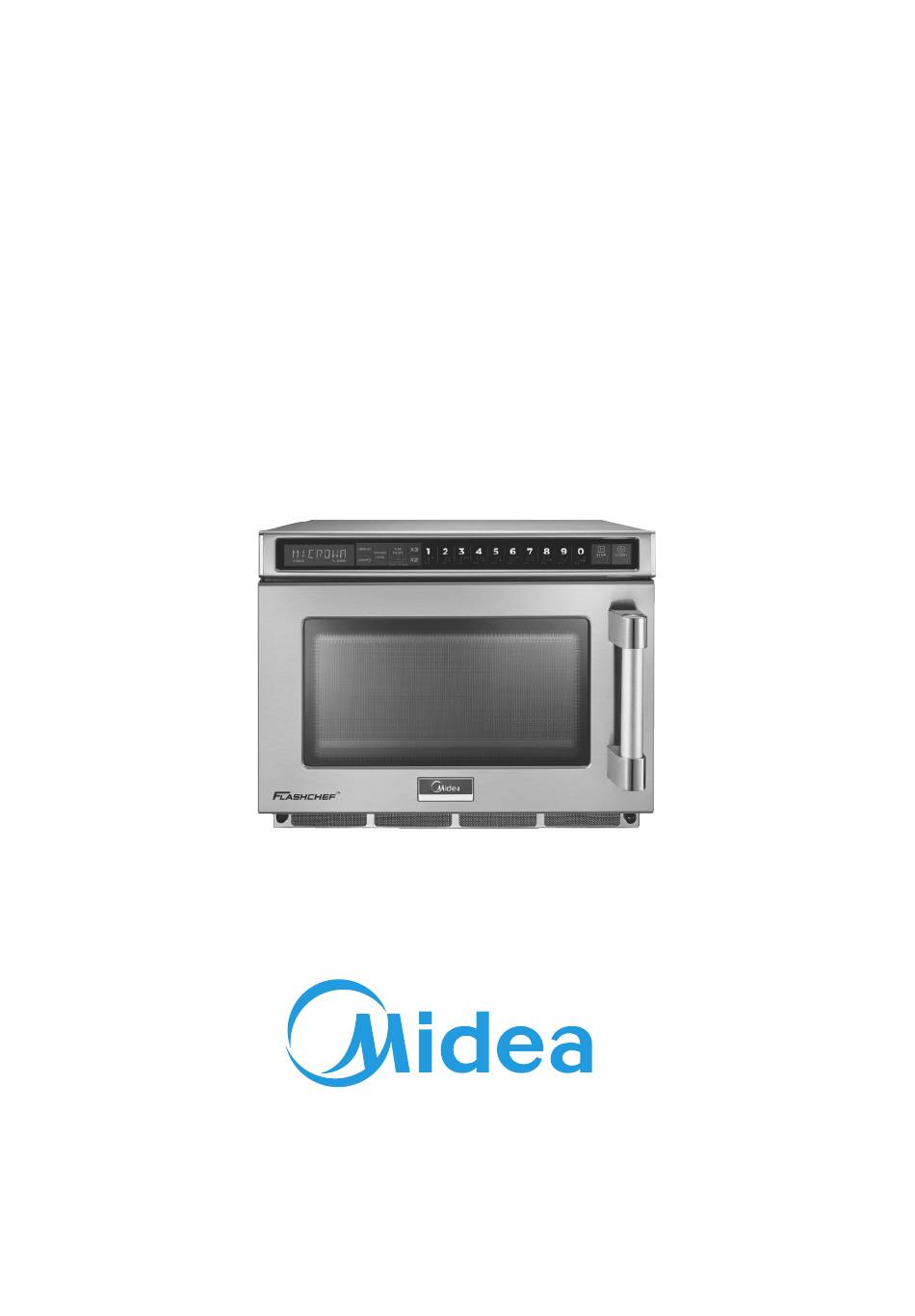

Commercial
Microwave Oven
INSTRUCTION MANUAL
Model :
12
17G1
S
Read these instructions carefully before using your microwave oven, and keep it for refer nce
e
If you follow the instructions, your oven will provide you with many years of dependable service.
REA
D
CAREFULLY

Advertisement

Table of Contents
loading

Related Manuals for Midea 1217G1S

Summary of Contents for Midea 1217G1S

  • Page 1 Commercial Microwave Oven INSTRUCTION MANUAL Model : 17G1 Read these instructions carefully before using your microwave oven, and keep it for refer nce If you follow the instructions, your oven will provide you with many years of dependable service. CAREFULLY...

  • Page 3: Table Of Contents

    CONTENTS IMPORTANT SAFEGUARDS PRECAUTIONS IMPORTANT SAFETY INSTRUCTIONS GROUNDING INSTRUCTIONS RADIO INTERFERENCE SAFETY BEFORE THE FIRST USE UTENSILS PARTS & FEATURES INSTALLATION OPERATION INSTRUCTION CONTROL PANEL DEFAULT COOK TIMES USER OPTION FUNCTION INST CTION CLEANING & MAINTENANCE HOW TO SET THE U DISK CLEANING INSTRUCTION MAINTENANCE SPECIFICATIONS...

  • Page 4: Precautions

    PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY Do not attempt to operate this oven with the door open sincere open-door operation can result in harmful exposure to microwave energy.It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allows soil or cleaner residue to accumulate on sealing surfaces.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment. Do not cover or block any openings on the appliance. Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.

  • Page 6: Grounding Instructions

    WARNING - Improper use of the grounding can result in a risk of electric shock. 1217G1S Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

  • Page 7: Radio Interference

    RADIO INTERFERENCE Operation of the microwave oven may cause interference to your radio, TV or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures: 1). Clean door and sealing surface of the oven. 2).

  • Page 8: Utensils

    1 . 0 To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself, stir liquid before placing the container in the oven and again halfway through cooking time. Let stand in the oven for a short time and stir again before removing the container.
  • Page 9 Materials you can use in microwave oven UTENSILS REMARKS Follow manufacturer* instructions. The bottom of browning dish must be Browning dish at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
  • Page 10 SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Instruction Manual Warranty card A) Control panel B) Observation window C) Safety interlock system D) Ceramic bottom plate E) Filter...

  • Page 11: Installation

    Countertop Instructions INSTALLATION 1. Select a level surface that provide 2. Stacking and installation of the microwave enough open space for the intake oven. The maximum height of stacking shall be and/or outlet vents unit s. Specific stacking installation is as follows Fig 1 (A) Unscrew and remove the mounting plate,...

  • Page 12: Operation Instruction

    CONTROL PANEL Control Panel(with braille) and Features (1) Defrost Button (10) (2) (3) (4) (5) (8) (9) (2) USB Buttons (3) Power Level Button (4) Time Entry Button (5) Double Quantity Button (6) Triple Quantity Button (7) Number Buttons (8) Stop Button (9) Start Button 10 Display OPERATION INSTRUCTION...

  • Page 13: User Option

    OPERATION INSTRUCTION Appendix. User Options Items bolded below are the default values. OPTION SETTING DISCRIPTION 3 seconds beep OP:10 OP:11 Continuous beep 1 EOC Tone OP:12 5 quick beeps,Repeating OP:20 Beeper Off 2 BeeperVolume OP:21 OP:21 OP:22 Medium OP:23 High OP:30 Keybeep Off...

  • Page 14: Function Inst Ru Ction

    OPERATION INSTRUCTION Power Up 1) When the door is closed, the oven is powered on initially. The LED is always on and “ ” “-- --” displayed, and then the initial power-on state is entered; Press the button, the microwave oven enters the idle mode; 2) When the door is opened, the microwave oven will enter the open door mode (scan code type enters the scan mode).
  • Page 15 OPERATION INSTRUCTION Scan Mode (Proprietary function for scan model) 1) The initial power will be on and the microwave oven will enter scan mode hen when the oven door is open; the scanner will light up and enter the scan mode if open the oven door in idle or standby mode;...
  • Page 16 OPERATION INSTRUCTION Pause Mode 1) While cooking , if the door is opened and then closed, or if the " " pad is pressed, the oven will enter Pause Mode. 2) While paused,the screen will display the remaining cook time. 3) In Pause Mode,if the "...
  • Page 17 OPERATION INSTRUCTION 3) Press "Power Level" button, "100%POWER" displays. Press number buttons to select power level you want, and the corresponding power will light. If you want to choose full power level, press "1" and "0" successively.Then the screen will display "100%POWER"...
  • Page 18 OPERATION INSTRUCTION For example: set the program as memory cooking. Power level 70% and cooking time is 1 minute and 25 seconds. Step1: Open the door, press number button "1" for 5 seconds,"PROGRAM" displays. Step 2: Press number button "3", the screen will display "P:03",After two seconds, the screen will display the related time "...
  • Page 19 OPERATION INSTRUCTION a. Open the door,press number button "1" for 5 seconds,"PROGRAM" displays. b. Press number button "3", the screen will display "P:03",After two seconds, the screen will display the related time. c. Press "1","2","5" to input the cooking time. "1:25" displays. d.
  • Page 20 OPERATION INSTRUCTION 3) If you do not need to clean the filter , press " " button and hold for 3 seconds to clear out the reminder information. Otherwise, the oven will remind youa ll the time during Idle Mode. Factory-default setting In Ready Mode, presssing "...

  • Page 21: How To Set The U Disk

    How to set the U disk 1.Insert U disk, select "FlashTune 1.1.2" unzip installation. 2. Select the appropriate installer package according to the computer system, the windows installer packages are shown as follows: 3. Double click on the ft icon to install the software.
  • Page 22 How to set the U disk 4. Click on the icon after installation to open the software. I. Edit auto recipe: 5. Auto recipe setup: The cooking time and heat power may be set in this auto recipe, it provides multistage cooking function and allows setup of up to 3 stages.
  • Page 23 How to set the U disk 7. Click “Clean Auto” button in ft software and one confirmation dialog box will pop up, click “Yes” button to delete all auto recipes.
  • Page 24 How to set the U disk II. Edit barcode menu 8 Barcode menu setup: Press “Barcode” label to enter manual menu setup page, a custom name may be assigned to the menu, input infor- mation in “EAN/UPC” column(also the information may be input by connecting the barcode scanner to the computer),the column can only accommodate 8-13 digits number, set up multistage cooking func- tions,Once one menu setup is completed, the system will add the next...
  • Page 25 How to set the U disk The method of updating menu by QR code: 9. Tick the menus to be exported (up to 20 menus may be ticked) and press “QR code” button to generate QR code. QR code specification 25mm- 100mm(15mil) Transmit those QR codes to scanner of the microwave oven for scanning and if they can be read successfully, the menu is updated successfully.
  • Page 26 How to set the U disk 10. Click “Export All” button to export all menus to U disk and the files are automatically stored in “COOKDATA” file folder, click “Select Folder” button to save and place the “COOKDATA” file folder under the root directory of U disk that is used for menu update.
  • Page 27 How to set the U disk 11. Select “Save/Save as” option under “File” menu to save the edited menu files and next time the “open” option may be selected to import them. 12. Restore ex-factory state of the program In standby mode, press “Start” key and the number key 0 simultaneously to restore the ex-factory state of the program a) Press “start”...
  • Page 28 How to set the U disk 13. The product demonstration is listed as follows: 1. Power on and ECO will be displayed. 2. Open the door and scan QR code, if “SUCCESS” characters are displayed, the menu is imported successfully.
  • Page 29 How to set the U disk 3. Scan the barcode in the menu and start to work.
  • Page 30 How to set the U disk 4. Insert the U disk into USB interface and “LOADING” ,” SUCCESS” charac- ters will be displayed successively, now the import is successful.

  • Page 31: Cleaning Instruction

    Cleaning Instructions Always keep the oven clean 1. Cleaning the glass viewing window, the inner door panel and oven front face. For best performance and to maintain the high degree of safety, the inner door panel and oven front face should be free of food or grease build-up.
  • Page 32 Filter cleaning Arrows Filter Filter screws Caution! Make sure the splash shield Filter screws is installed correctly before use of the microwave oven! The front filter serves as the air inlet; the filter should be cleaned regularly, depending on the kitchen conditions.
  • Page 33 Installation(supplement) 1. The switching operation of this microwave oven can cause voltage fluctuations on the supply line. The operation of this oven under unfavorable voltage supply conditions can have adverse effects. This device is intended for the connection to a power supply system with a maximum permissible system impedance Zmax of 0.3 Ohms at the interface point of the user’s supply.
  • Page 34 or call the help center at 1-855-238-5604. damp with mild sanitizer. with cover e. Cook food covered. Call support center. with cover cover d. e. Cook food...
