Summary of Contents for Midea 2117G1A

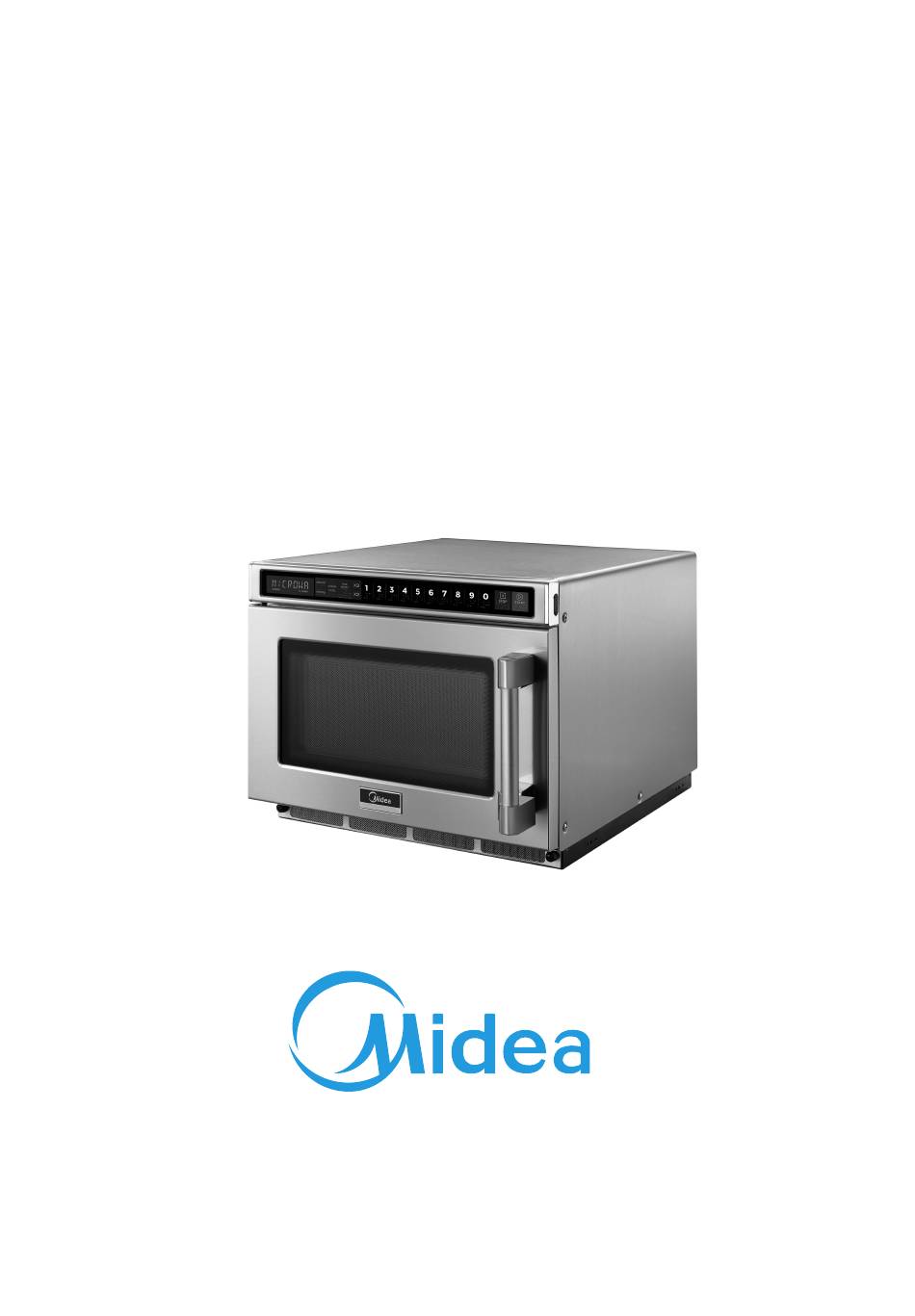

- Page 1 Microwave Oven INSTRUCTION MANUAL Model : 1817G1A 2117G1A 17G1A Read these instructions carefully before using your microwave oven, and keep it for refer nce If you follow the instructions, your oven will provide you with many years of dependable service.
-
Page 3: Table Of Contents
208/230V~60Hz External dimensions: 16.5x22.2x13.4 inch Rated Input Power: 2800 W Net Weight: Approx. 66.1 lbs Rated Output Power: 1800 W Model: 2117G1A Oven Capacity: 0.6 Cu.ft. Rated Voltage: 208/230V~60Hz External dimensions: 16.5x22.2x13.4 inch Rated Input Power: 3200 W Net Weight: Approx. -
Page 4: Important Safety Instructions
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY Do not attempt to operate this oven with the door open sincere open-door operation can result in harmful exposure to microwave energy.It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allows soil or cleaner residue to accumulate on sealing surfaces. - Page 5 IMPORTANT SAFETY INSTRUCTIONS This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment. Do not cover or block any openings on the appliance. Do not store this appliance outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.
-
Page 6: Grounding Instructions
GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. -
Page 7: Radio Interference
RADIO INTERFERENCE Operation of the microwave oven may cause interference to your radio, TV or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures: 1). Clean door and sealing surface of the oven. 2). -
Page 8: Utensils
To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself, stir liquid before placing the container in the oven and again halfway through cooking time. Let stand in the oven for a short time and stir again before removing the container. - Page 9 Materials you can use in microwave oven UTENSILS REMARKS Shielding only. Small smooth pieces can be used to cover thin parts of meat Aluminum foil or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Follow manufacturer* instructions.
- Page 10 SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Instruction Manual Warranty card A) Control panel B) Observation window C) Safety interlock system D) Ceramic bottom plate E) Filter...
-
Page 11: Installation
Countertop Instructions INSTALLATION 1. Select a level surface that provide 2. Stacking and installation of the microwave enough open space for the intake oven. The maximum height of stacking shall be and/or outlet vents unit s. Specific stacking installation is as follows Fig 1 (A) Unscrew and remove the mounting plate,... -
Page 12: Operation Instruction
CONTROL PANEL Control Panel(with braille) and Features (1) Defrost Button (10) (2) (3) (4) (5) (8) (9) (2) USB Buttons (3) Power Level Button (4) Time Entry Button (5) Double Quantity Button (6) Triple Quantity Button (7) Number Buttons (8) Stop Button (9) Start Button 10 Display OPERATION INSTRUCTION... - Page 13 OPERATION INSTRUCTION Appendix. User Options Items bolded below are the default values. OPTION SETTING DISCRIPTION 3 seconds beep OP:10 OP:11 Continuous beep 1 EOC Tone OP:12 5 quick beeps,Repeating OP:20 Beeper Off 2 BeeperVolume OP:21 OP:22 Medium OP:30 Keybeep Off 3 BeeperOn/Off...
- Page 14 OPERATION INSTRUCTION Power Up (1817G1A & 2117G1A ONLY) 1) When the oven is electrified for the first time, the voltage will display for " 230V then "TOUCH 1 208V TOUCH 2 ". 2) Choose the oltage by pressing number button "1" or "2". Then screen will display "230V"...
- Page 15 OPERATION INSTRUCTION Pause Mode 1) While cooking , if the door is opened and then closed, or if the " " pad is pressed, the oven will enter Pause Mode. 2) While paused,the screen will display the remaining cook time. 3) In Pause Mode,if the "...
- Page 16 OPERATION INSTRUCTION 3) Press "Power Level" button, "%POWER" displays. Press number buttons to select power level you want, and the corresponding power will light. If you want to choose full power level, press "1" and "0" successively.Then the screen will display "%POWER"...
- Page 17 OPERATION INSTRUCTION For example: set the program as memory cooking. Power level 70% and cooking time is 1 minute and 25 seconds. Step1: Open the door, press number button "1" for 5 seconds,"PROGRAM" displays. Step 2: Press number button "3", the screen will display "P:03",After two seconds, the screen will display the related time "...
- Page 18 OPERATION INSTRUCTION a. Open the door,press number button "1" for 5 seconds,"PROGRAM" displays. b. Press number button "3", the screen will display "P:03",After two seconds, the screen will display the related time. c. Press "1","2","5" to input the cooking time. "1:25" displays. d.
- Page 19 OPERATION INSTRUCTION 3) If you do not need to clean the filter , press " " button and hold for 3 seconds to clear out the reminder information. Otherwise, the oven will remind youa ll the time during Idle Mode. Factory-default setting In Ready Mode, presssing "...
- Page 20 How to set the U disk Always keep the oven clean Insert the U disk to computer and open the file calleds Double-click “MenuEdit” to enter editable interfac e . (Recommendation: Right-click and choose "Run as administrator ") Set the maximum cooking time of single menu.
- Page 21 How to set the U disk Set the first menu, maximum of t wo stages of cooking can be set. And you can set the cooking time and power. Click “New Line ” to creat the second menu,the third menu, the forth menu�And 20 menus can be maximumly set.
- Page 22 How to set the U disk 6. Click “ Export File ”to export the file to U disk he file will be named “ UTABLE.C”. Then click “Save” to finish the setting.
- Page 23 Cleaning Instructions Always keep the oven clean 1. Cleaning the glass viewing window, the inner door panel and oven front face. For best performance and to maintain the high degree of safety, the inner door panel and oven front face should be free of food or grease build-up.
- Page 24 Filter cleaning Arrows Filter Filter screws Caution! Make sure the splash shield Filter screws is installed correctly before use of the microwave oven! The front filter serves as the air inlet; the filter should be cleaned regularly, depending on the kitchen conditions.
- Page 25 Installation(supplement) 1. The switching operation of this microwave oven can cause voltage fluctuations on the supply line. The operation of this oven under unfavorable voltage supply conditions can have adverse effects. This device is intended for the connection to a power supply system with a maximum permissible system impedance Zmax of 0.3 Ohms at the interface point of the user’s supply.
- Page 26 or call the help center at 1-855-238-5604. damp with mild sanitizer. with cover e. Cook food covered. Call support center. with cover e. Cook food cover d. PN:16170000A60746...
