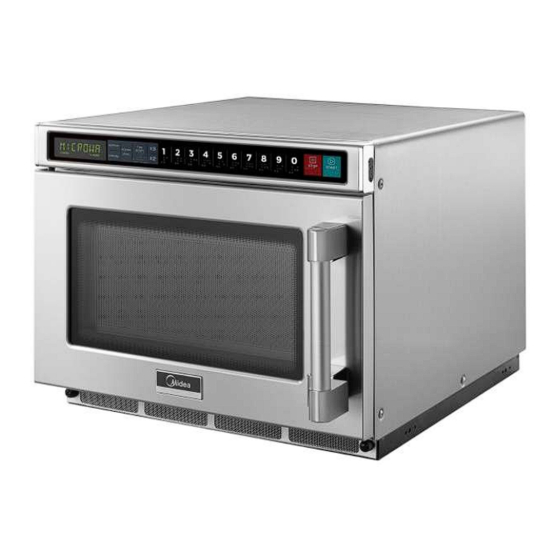

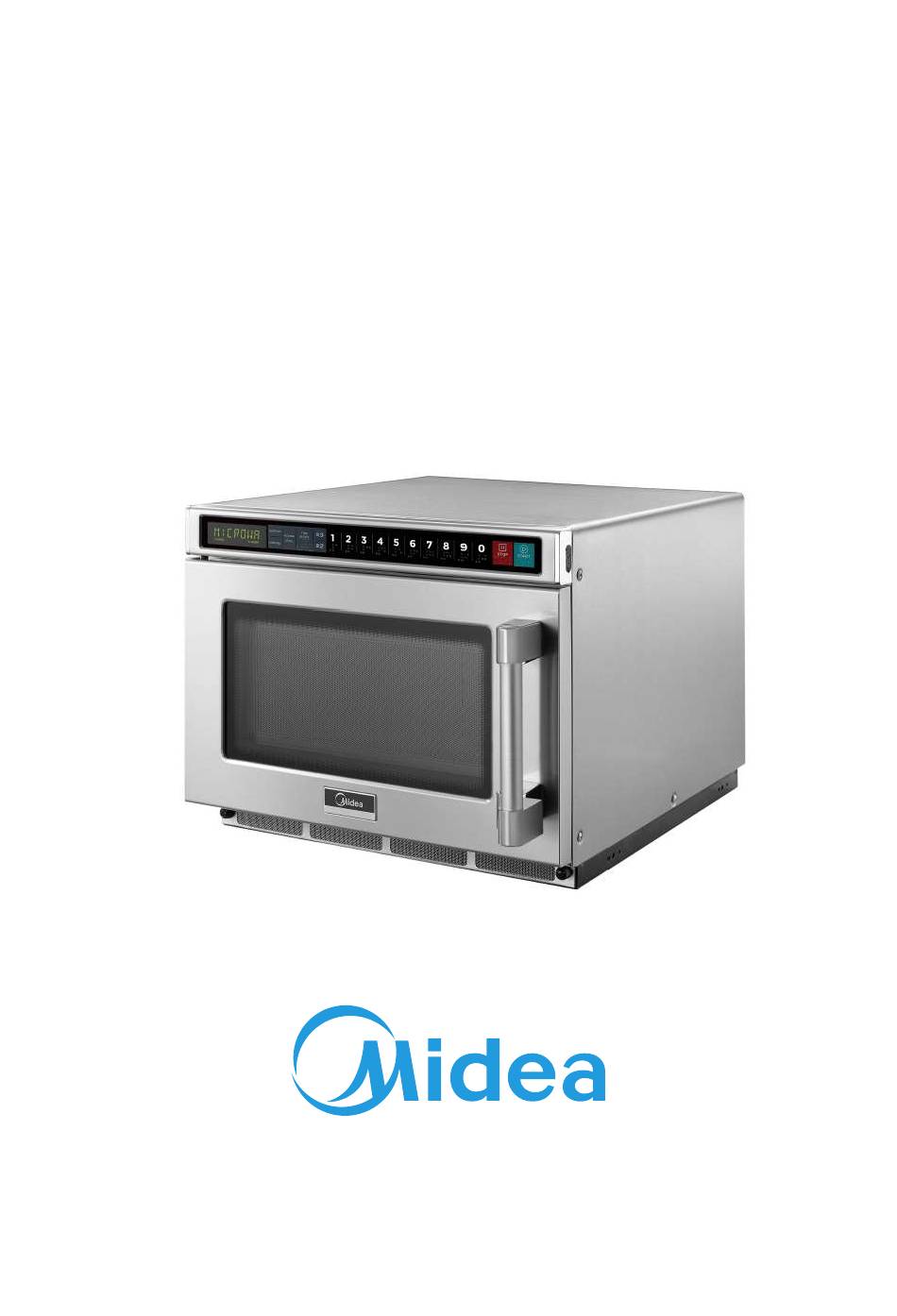

- Page 1 Microwave Oven INSTRUCTION MANUAL Model: 1817G1F-BS Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY...
-
Page 3: Table Of Contents
SETTING UP YOUR OVEN COUNTERTOP INSTALLATION CLEANING INSTRUCTIONS OPERATION OPERATION INSTRUCTION HOW TO SET THE U DISK FILTER CLEANING SPLASH SHIELD CLEANING INSTALLATION (SUPPLEMENT) TROUBLE SHOOTING SPECIFICATIONS Model: 1817G1F-BS Rated Voltage: 240V~ 50Hz Rated Input Power (Microwave): 3000W Rated Output Power (Microwave): 1800W... -
Page 4: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. -
Page 5: Important Safety Instructions Warning
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a... - Page 6 IMPORTANT SAFETY INSTRUCTIONS WARNING 11. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. 12. The oven should be cleaned regularly and any food deposits should be removed.
-
Page 7: Grounding Installation
GROUNDING INSTALLATION DANGER - Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING - Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. - Page 8 GROUNDING INSTALLATION CLEANING Be sure to unplug the appliance from the power supply. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
-
Page 9: Utensils
UTENSILS CAUTION - Personal Injury Hazard It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."... - Page 10 MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
-
Page 11: Setting Up Your Oven
SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Instruction Manual 1 A) Control panel B) Observation window C) Safety interlock system D) Ceramic board E) Filter F) Plug... -
Page 12: Countertop Installation
COUNTERTOP INSTALLATION Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Installation Warning: T he plug socket, electric appliances or the 1. -
Page 13: Cleaning Instructions
CLEANING INSTRUCTIONS Always keep the oven clean 1. Cleaning the glass viewing window, the inner door panel and oven front face. For best performance and to maintain the high degree of safety, the inner door panel and oven front face should be free of food or grease build-up. -
Page 14: Operation
OPERATION Control Panel (with braille) and Features 1. Cleaning the glass viewing window, the inner door panel and oven front face. For best performance and to maintain the high degree of safety, the inner door panel and oven front face should be free of food or grease build-up. -
Page 15: Operation Instruction
OPERATION INSTRUCTION Appendix. A User Options Items bolded below are the default values. Option Setting Discription OP:10 3 seconds beep OP:11 Continuous beep EOC Tone OP:12 5 quick beeps,Repeating OP:20 Beeper Off OP:21 Beeper OP:22 Medium Volume OP:23 High OP:30 Keybeep Off 3 Beeper On/Off... - Page 16 OPERATION INSTRUCTION Appendix. B Default Cook Times The oven shall ship with the following Preset Cook Times unless otherwise noted in the product Specification. Button Display (Time) Power 0:10 100% 0:20 100% 0:30 100% 0:45 100% 1:00 100% 1:30 100% 2:00 100% 2:30...
- Page 17 OPERATION INSTRUCTION 1. Power Up When the oven is electrified for the first time, " " will display. If " " button pressed, the oven will change to idle mode. Note: Under idle mode, any button press will no response. 2.
- Page 18 OPERATION INSTRUCTION 2) During this mode, the screen is blank. If the door is open during cooking state, "DOOR" and "OPEN" will diplay in order for once. Then the screen will display the remaining cooking time. And the fan and oven lamp work. 3) When the door is closed, the oven shall be enter Ready Mode.
- Page 19 OPERATION INSTRUCTION 3) During this mode, "00:00" displays, input the time you need. 4) Press "Power Level" button, "%POWER" displays. Press number buttons to select power level you want, and the corresponding power will light. If you want to choose full power level, press "1" and "0" successively.Then the screen will display"%POWER".
- Page 20 OPERATION INSTRUCTION 9. Preset Program Cook Mode 1) This mode allows cooking of food items through a one pad touch operation. While in Ready Mode, pressing number buttons will cause the oven to run the Preset Program associated with that number button.
- Page 21 OPERATION INSTRUCTION 12. Programming Mode This mode allows the user to assign cook times and power levels to the once touche button. 1) Open the door and press "1" pad for 5 seconds, the buzzer will sound once and enter to Programming Mode. 2) "PROGRAM"...
- Page 22 OPERATION INSTRUCTION Step1: Open the door, press number button "1" for 5 seconds,"PROGRAM" displays. Step 2: Press number button "3", the screen will display "P:03",After two seconds, the screen will display the related time ": 30". Step 3: Press number buttons "1", "2" and "5" to input the cooking time. Step 4: Press "7 "...
- Page 23 OPERATION INSTRUCTION 14. Stage Cooking Programming This allows the user to cook food items at manual cook mode and programming mode. 1) Three stages can be set at most under cooking mode or programming mode. Aftet setting the power and time for the first stage, press "Time Entry" to set the second stage.
- Page 24 OPERATION INSTRUCTION 15. Filter Cleaning Function 1) If User Option OP:01 is selected and the setting time arrives, the oven will remind the user to cleaning the filter. Note: The oven must be electrified. 2) The screen will display "CLEAN FILTER". At this time, pressing " "...
- Page 25 OPERATION INSTRUCTION 5) During setting process, press " " to enter Door Open Mode. Close the door will enter Ready Mode. 6) If " " button not pressed at the last step, the program cannot be saved but stay at previous way. 18.
- Page 26 HOW TO SET THE U DISK 1. Insert the U disk to computer and open the file calledS “Setup” 2. Double-click “MenuEdit” to enter edit able interface. (Recommendation: Right-click and choose "Run as administrator ") 3. Set the maximum cooking time of single menu.
-
Page 27: How To Set The U Disk
HOW TO SET THE U DISK 4. Set the first menu, two stages of cooking can be maximumly set. And you can set the cooking time and power. 5. Click “New Line” to creat the second menu,the third menu , the forth menu …... - Page 28 HOW TO SET THE U DISK 6. Click “Export File” to export the file to U disk.And the file will be named “UTABLE.C”. Then click “Save” to finish the setting.
-
Page 29: Filter Cleaning
FILTER CLEANING Caution! Make sure the splash shield is installed correctly before use Filter Filter screws of the microwave oven! The front filter serves as the air inlet; the filter should be cleaned on time to keep the chamber clean. 1. -
Page 30: Splash Shield Cleaning
SPLASH SHIELD CLEANING 1. Detaching: Hold the two buckle positions in front of the splash shield with your hands (as shown by the arrows). Exert your strength following the direction of the arrows and pull downwards after you have pulled out the buckles. 2. -
Page 31: Installation (Supplement)
INSTALLATION (SUPPLEMENT) 1. The switching operation of this microwave oven can cause voltage fluctuations on the supply line. The operation of this oven under unfavorable voltage supply conditions can have adverse effects. This device is intended for the connection to a power supply system with a maximum permissible system impedance Zmax of 0.3 Ohms at the interface point of the user’s supply. -
Page 32: Trouble Shooting
TROUBLE SHOOTING Normal Radio and TV reception may be interfered when Microwave oven interfering microwave oven operating. lt is similar to the TV reception interference of small electrical appliances.like mixer. vacuum cleancer. and electric fan. lt is normal. In low power microwave cooking. oven light may Dim oven light become dim.
