PLS0300
LAT PULLDOWN
MODEL PLS0300
(MAN-PLS0300 REV01)
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLS0300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True PLS0300

Summary of Contents for True PLS0300

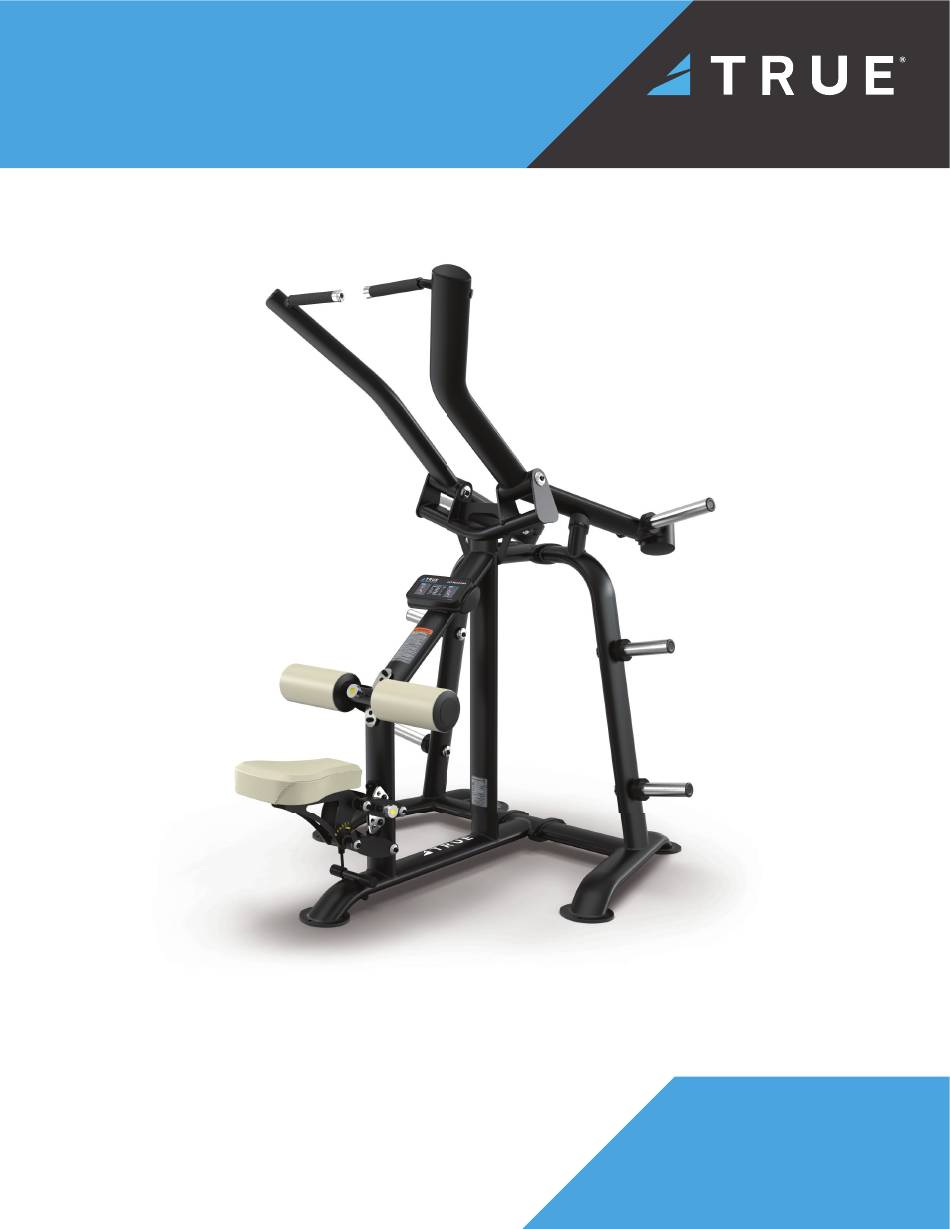

  • Page 1 PLS0300 LAT PULLDOWN OWNER’S MANUAL MODEL PLS0300 (MAN-PLS0300 REV01)
  • Page 3 Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann variieren. Produkt- Spezifi kationen, Funktionen und Software können sich ohne vorherige Ankündigung ändern. In den meisten Fällen bis zu Bedienungsanleitung Bisher besuchen und für Dokumente in weiteren Sprachen fi nden Sie unter https://truefi tness.com/ support/user-manuals/ BELANGRIJK! Alle getoonde producten zijn prototype.
  • Page 4 You can count on TRUE Fitness for the best service in the industry, provided by a team focused on optimizing the life of your equipment.
  • Page 5 You may receive a shipment that looks intact and discover once the box has been opened that there are hidden damages. Please notify the carrier immediately. TRUE will not be able to fi le a claim if the carrier is not notifi ed in a timely manner.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS................7 GENERAL CARE AND MAINTENANCE..........................9 COMMERCIAL MAINTENANCE SCHEDULE........................10 COMPLIANCES..................................10 DIMENSIONS AND WEIGHTS.............................11 LABEL LOCATIONS................................12 WARNING AND INTENDED USE LABELS...........................12 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST...............................14 ASSEMBLY STEPS................................16 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE...........................22 WEEKLY INSPECTION AND MAINTENANCE........................22 OTHER SCHEDULED PREVENTATIVE MAINTENANCE....................22 CLEANING THE EQUIPMENT.............................23...

  • Page 7: Safety Instructions

    ● If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine.
  • Page 8 Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at fi rst signs of wear. Use only TRUE supplied components. ● Replace any warning label at the fi rst sign of wear. Labels and the facility safety sign may be obtained from TRUE.

  • Page 9: General Care And Maintenance

    When replacing any component, use only TRUE supplied parts. ● Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE product support (service@truefi tness.com // 800.883.8783).

  • Page 10: Commercial Maintenance Schedule

    Clean and condition upholstery. Clean and polish frame. Clean and polish chrome. Lubricate pivot bearings and linear bearings. Replace cables if equipped. COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truefi tness.com.

  • Page 11: Dimensions And Weights

    DIMENSIONS AND WEIGHTS ● ASSEMBLED DIMENSIONS (W X D X H) 55" x 69.75” x 78.5” / 139.7 cm x 177.2 cm x 199.4 cm HEIGHT 78.5” 199.4 cm WIDTH DEPTH 55” 69.75” 139.7 cm 177.2 cm ● PRODUCT WEIGHT 373 lbs / 169 kg ●...

  • Page 12: Label Locations

    SPL-00-LBLSN (Serial Number) WARNING AND INTENDED USE LABELS WARNING: Replace all labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefi tness.com // 800.883.8783). Description Image LBL-ADJ-SPL013 (Adjustment Knob) LBL-ADJ-SPL010 (Adjustment Arrow)
  • Page 13 LBL-ADJ-PLS027 (Seat Adjustment) LBL-WRN-PLS002 (Plate Weight) B2065 (Pop Pin Warning) LBL-PRO-PLS300 (Placard) LBL-WRN-PLS001 (General Warning) LBL-MTN-PLS001 (Maintenance) LBL-LOG-010BK (Logo) SPL-00-LBLSN (Serial Number) TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA MODEL NO: PLS0300 SERIAL NO: 23-PLS030001X...

  • Page 14: Assembly Instructions

    DO NOT use a box cutter. DO NOT slice into the packaging. VERIFY BOX CONTENTS IMPORTANT! Please verify all box contents. If you have questions, or if there are any missing parts, contact product support (service@truefi tness.com // 800.883.8783). TOOLS NEEDED FOR ASSEMBLY Wire Cutters or Scissors...
  • Page 15 BOX CONTENTS BOX CONTENTS Item Image Item Image Left Arm Assembly Center Frame Assembly Active Weight Post Assemblies (Long) Storage Weight Post Assemblies (Short) Seat Pad Assembly Roller Pad Right Side Frame Assembly Assembly Pad Kit Hardware Manual Left Side Frame Assembly Right Arm Assembly...

  • Page 16: Assembly Steps

    STEP 1—ASSEMBLE FRAME Tools Used in this Step Parts Used in this Step 3/8" Allen Wrench PART# DESCRIPTION PLS-03-MFR110X ASSEMBLY, PLS0300 MAINFRAME LEFT PLS-03-MFR010X ASSEMBLY, PLS0300 MAINFRAME RIGHT PLS-03-MFR370X ASSEMBLY, PLS0300 CENTER FRAME C 640A SHCS, 1/2"-13 X 1", BLK C 750B LOCK WASHER, 1/2MED.SPLIT, BLACK BED...
  • Page 17 STEP 1—ASSEMBLE FRAME CONTINUED 3. When all eight socket head cap screws and lock washers are fi nger tight, use a 3/8" allen wrench to fully tighten.
  • Page 18 STEP 2—ATTACH PADS TO SEAT FRAME Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench PART# DESCRIPTION PLS0300 PAD KIT PAD KIT PLS PAD KIT HARDWARE C 624A SHCS, 3/8"-16, 1-1/4" BLACK C 749B LOCK WASHER, 3/8", BLK ZP C 754B WASHER, FLAT, 3/8"...
  • Page 19 STEP 3—ATTACH ARMS Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench PART# DESCRIPTION PLS-03-ARM160X ASSEMBLY, PLS0300 USER LEFT ARM PLS-03-ARM060X ASSEMBLY, PLS0300 USER RIGHT ARM PLS-01-AXL001 AXLE, PIVOT PLS-00-CAP005 ALM BOLT CAP Rubber Mallet C 622A SHCS, 3/8"-16 X 3/4"...
  • Page 20 STEP 4—ATTACH WEIGHT POST ASSEMBLIES Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench PART# DESCRIPTION PLS-00-PST000X ASSEMBLY, PLS WEIGHT HORN (ACTIVE-LONG) PLS-00-PST020X ASSEMBLY, WEIGHT HORN (STORAGE-SHORT) PLS-00-CAP005 ALM BOLT CAP C 749B LOCK WASHER, 3/8", BLK ZP Rubber Mallet C 622A SHCS, 3/8"-16 X 3/4"...
  • Page 21 STEP 5—VERIFY ALL ADJUSTMENTS FUNCTION AS INTENDED Pull the pop pin out and place it into each of the adjustment holes for both the center pad assembly and the seat assembly. NOTE: The pad and seat assembly both have six adjustment holes. IMPORTANT! Verify the pin inserts in and out of each hole completely.

  • Page 22: Preventative Maintenance

    The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE is not responsible for performing or scheduling regular maintenance or inspections.

  • Page 23: Cleaning The Equipment

    Shrouds—Use a mild soap solution to clean dirt and grease marks. CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

  • Page 24: Warranty Information

    *This limited warranty on the structural frame does not purchaser and the parts of the TRUE product (the include paint or coatings. The frame is defi ned as the “Product”) listed below, under normal use and service,...
  • Page 25 PLS0300 LIMITED WARRANTY Save Time and Register Online! Activate Multiple Warranties at truefi tness.com THE TRUE LIMITED WARRANTY IS SUBJECT TO AND WILL BE IN ACCORDANCE WITH THE CONDITIONS SET FORTH BELOW: This limited warranty is valid for the United States and 13.
  • Page 26 SERIAL NO: 23-PLSXX00000 Thank you for purchasing a TRUE product. To validate the TRUE product warranty the fast and easy way, please go on- line now to truefi tness.com and register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose.
  • Page 28 T R U E F I T N E S S . C O M I N T E G R I T Y M A T T E R S TRUE Fitness Technology, Inc | 865 Hoff Road, St. Louis, MO 63366 © 2023 TRUE. All Rights Reserved.
