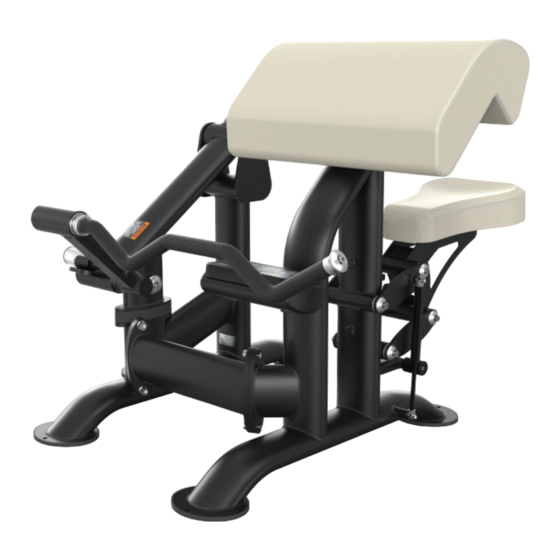

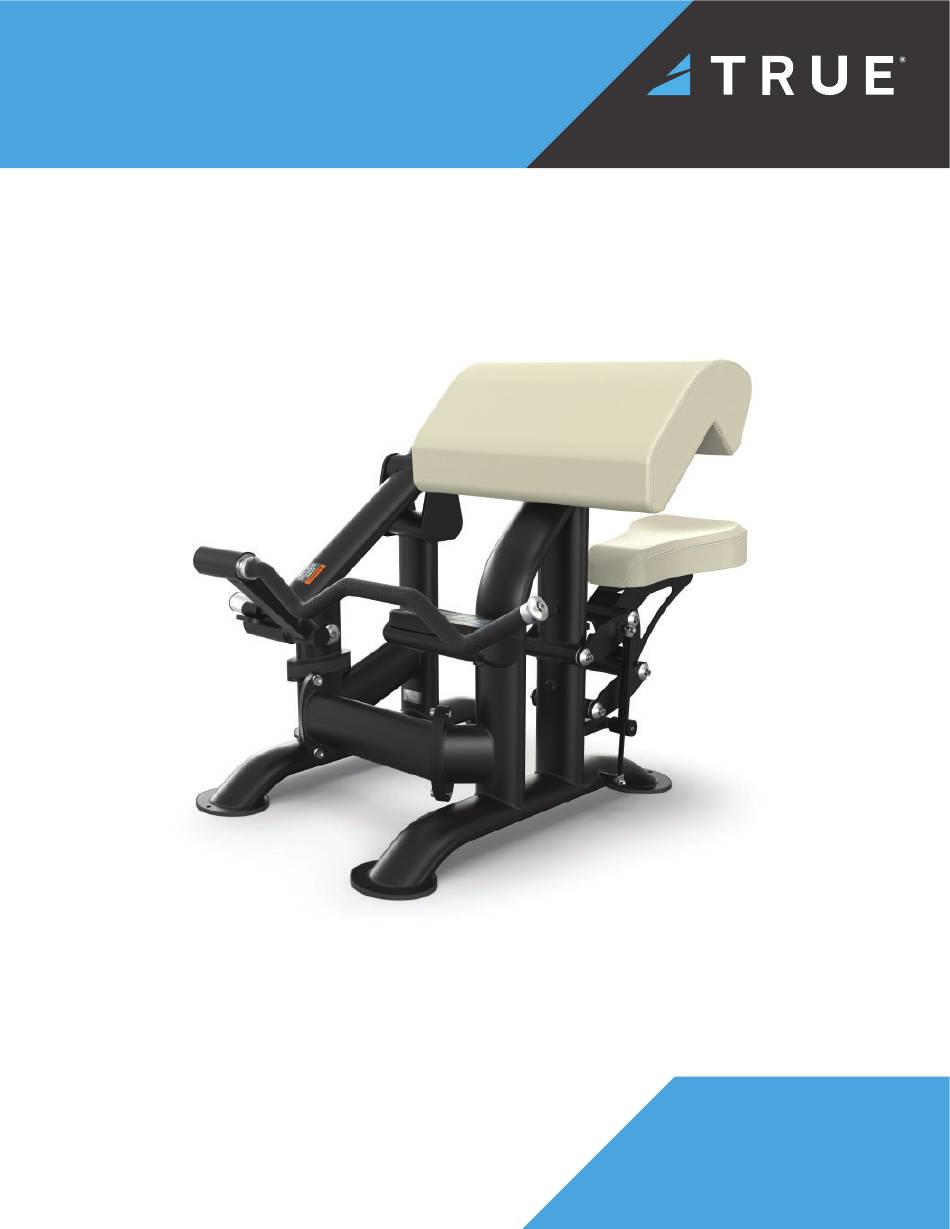

- Page 1 PLS0600 BICEPS CURL OWNER’S MANUAL MODEL PLS0600 (MAN-PLS0600 REV01)
- Page 3 Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann variieren. Produkt- Spezifi kationen, Funktionen und Software können sich ohne vorherige Ankündigung ändern. In den meisten Fällen bis zu Bedienungsanleitung Bisher besuchen und für Dokumente in weiteren Sprachen fi nden Sie unter https://truefi tness.com/ support/user-manuals/ BELANGRIJK! Alle getoonde producten zijn prototype.
- Page 4 You can count on TRUE Fitness for the best service in the industry, provided by a team focused on optimizing the life of your equipment.
- Page 5 You may receive a shipment that looks intact and discover once the box has been opened that there are hidden damages. Please notify the carrier immediately. TRUE will not be able to fi le a claim if the carrier is not notifi ed in a timely manner.
-
Page 6: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS................7 GENERAL CARE AND MAINTENANCE..........................9 COMMERCIAL MAINTENANCE SCHEDULE........................10 COMPLIANCES..................................10 DIMENSIONS AND WEIGHTS.............................11 LABEL LOCATIONS................................12 WARNING AND INTENDED USE LABELS...........................12 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST..............................14 ASSEMBLY STEPS................................16 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE...........................22 WEEKLY INSPECTION AND MAINTENANCE........................22 OTHER SCHEDULED PREVENTATIVE MAINTENANCE....................22 CLEANING THE EQUIPMENT.............................23... -
Page 7: Safety Instructions
● If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine. - Page 8 Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at fi rst signs of wear. Use only TRUE supplied components. ● Replace any warning label at the fi rst sign of wear. Labels and the facility safety sign may be obtained from TRUE.
-
Page 9: General Care And Maintenance
When replacing any component, use only TRUE supplied parts. ● Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE product support (service@truefi tness.com // 800.883.8783). -
Page 10: Commercial Maintenance Schedule
Clean and condition upholstery. Clean and polish frame. Clean and polish chrome. Lubricate pivot bearings and linear bearings. Replace cables if equipped. COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truefi tness.com. -
Page 11: Dimensions And Weights
DIMENSIONS AND WEIGHTS ● ASSEMBLED DIMENSIONS (W X D X H) 49" x 42.5” x 36.75” / 124 cm x 108 cm x 93.4 cm HEIGHT 36.75" 93.4 cm DEPTH WIDTH 42.5" 49” 108 cm 124 cm ● PRODUCT WEIGHT 277 lbs / 125.7 kg ●... -
Page 12: Label Locations
SPL-00-LBLSN (Serial Number) WARNING AND INTENDED USE LABELS WARNING: Replace all labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefi tness.com // 800.883.8783). Description Image LBL-ADJ-SPL013 (Adjustment Knob) LBL-ADJ-SPL010 (Adjustment Arrow) - Page 13 LBL-ADJ-PLS027 (Seat Adjustment) LBL-WRN-PLS003 (Plate Weight) B2065 (Pop Pin Warning) LBL-PRO-PLS600 (Placard) LBL-WRN-PLS001 (General Warning) LBL-MTN-PLS001 (Maintenance) LBL-LOG-010BK (Logo 10") SPL-00-LBLSN (Serial Number) TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA MODEL NO: PLS0600 SERIAL NO: 23-PLS060001X...
-
Page 14: Assembly Instructions
DO NOT use a box cutter. DO NOT slice into the packaging. VERIFY BOX CONTENTS IMPORTANT! Please verify all box contents. If you have questions, or if there are any missing parts, contact product support (service@truefi tness.com // 800.883.8783). TOOLS NEEDED FOR ASSEMBLY Wire Cutters or Scissors... - Page 15 BOX CONTENTS BOX CONTENTS Item Image Item Image Active Weight Post Center Cross Assembly Brace Assembly Seat Pad Assembly Main Frame Assembly Arm Pad Assembly Pad Kit Hardware Bag with Retaining Ring for Handle Bar Assembly Manual Center Frame Assembly Handle Bar Assembly...
-
Page 16: Assembly Steps
Parts Used in this Step 3/8" Allen Wrench PART# DESCRIPTION PLS-06-MFR210X ASSEMBLY, PLS0600 MAINFRAME PLS-06-MFR190X ASSEMBLY, PLS0600 CENTER FRAME PLS-06-MFR050X ASSEMBLY, FRONT CROSS BRACE C 640A SHCS, 1/2"-13 X 1", BLK C 750B LOCK WASHER, 1/2MED.SPLIT, BLACK BED 1. Remove and set aside the preassembled socket 2. - Page 17 STEP 2—ATTACH PADS TO FRAME Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench PART# DESCRIPTION PLS0600 PAD KIT PAD KIT PLS PAD KIT HARDWARE C 624A SHCS, 3/8"-16, 1-1/4" BLACK C 749B LOCK WASHER, 3/8", BLK ZP C 754B WASHER, FLAT, 3/8"...
- Page 18 STEP 3—ATTACH HANDLE BAR ASSEMBLY TO FRAME Tools Used in this Step Parts Used in this Step Retaining Ring PART# DESCRIPTION Pliers PLS-06-HND000X ASSEMBLY, HANDLE BAR C 622A SHCS, 3/8"-16 X 3/4", BLK C 749B LOCK WASHER, 3/8", BLK ZP SPL-00-CAP009 CAP, BOLT, ALUMINUM 5/16"...
- Page 19 STEP 4—ATTACH WEIGHT POST ASSEMBLY Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench PART# DESCRIPTION PLS-00-PST030X ASSEMBLY, WEIGHT HORN (ACTIVE) PLS-00-CAP005 ARM BOLT CAP C 749B LOCK WASHER, 3/8", BLK ZP C 622A SHCS, 3/8"-16 X 3/4" Rubber Mallet 1.
- Page 20 STEP 5—VERIFY THE ADJUSTMENT FUNCTIONS AS INTENDED Pull the pop pin out and place it into each of the six adjustment holes for the seat assembly. IMPORTANT! Verify the pin inserts in and out of each hole completely. pop pin STEP 6—REMOVE PROTECTIVE FILM FROM LOGO...
-
Page 22: Preventative Maintenance
The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE is not responsible for performing or scheduling regular maintenance or inspections. -
Page 23: Cleaning The Equipment
Shrouds—Use a mild soap solution to clean dirt and grease marks. CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using. -
Page 24: Warranty Information
*This limited warranty on the structural frame does not purchaser and the parts of the TRUE product (the include paint or coatings. The frame is defi ned as the “Product”) listed below, under normal use and service,... - Page 25 PLS0600 LIMITED WARRANTY Save Time and Register Online! Activate Multiple Warranties at truefi tness.com THE TRUE LIMITED WARRANTY IS SUBJECT TO AND WILL BE IN ACCORDANCE WITH THE CONDITIONS SET FORTH BELOW: This limited warranty is valid for the United States and 13.
- Page 26 SERIAL NO: 23-PLSXX00000 Thank you for purchasing a TRUE product. To validate the TRUE product warranty the fast and easy way, please go on- line now to truefi tness.com and register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose.
- Page 28 T R U E F I T N E S S . C O M I N T E G R I T Y M A T T E R S TRUE Fitness Technology, Inc | 865 Hoff Road, St. Louis, MO 63366 © 2023 TRUE. All Rights Reserved.
