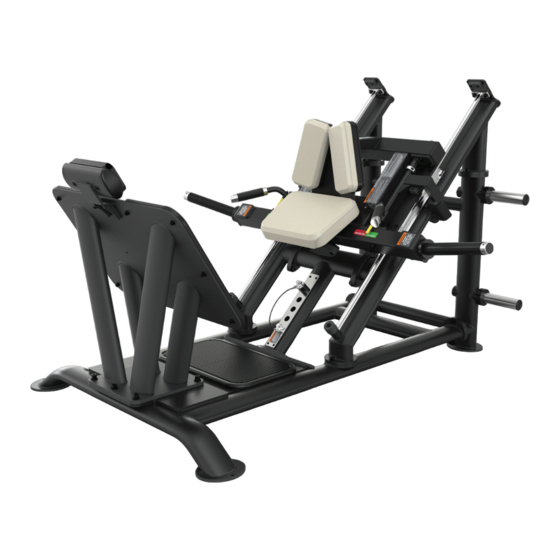

HACK SQUAT
MODEL PLS1000
(MAN-PLS1000 REV02)
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLS1000 and is the answer not in the manual?

Questions and answers

Related Manuals for True PLS1000

Summary of Contents for True PLS1000

  • Page 1 PLS1000 HACK SQUAT OWNER’S MANUAL MODEL PLS1000 (MAN-PLS1000 REV02)
  • Page 3 Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann variieren. Produkt- Spezifi kationen, Funktionen und Software können sich ohne vorherige Ankündigung ändern. In den meisten Fällen bis zu Bedienungsanleitung Bisher besuchen und für Dokumente in weiteren Sprachen fi nden Sie unter https://truefi tness.com/ support/user-manuals/ BELANGRIJK! Alle getoonde producten zijn prototype.
  • Page 4 You can count on TRUE Fitness for the best service in the industry, provided by a team focused on optimizing the life of your equipment.
  • Page 5 You may receive a shipment that looks intact and discover once the box has been opened that there are hidden damages. Please notify the carrier immediately. TRUE will not be able to fi le a claim if the carrier is not notifi ed in a timely manner.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS................7 GENERAL CARE AND MAINTENANCE..........................9 COMMERCIAL MAINTENANCE SCHEDULE........................10 COMPLIANCES..................................10 DIMENSIONS AND WEIGHTS.............................11 LABEL LOCATIONS................................12 WARNING AND INTENDED USE LABELS...........................12 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST..............................14 ASSEMBLY STEPS................................16 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE...........................26 WEEKLY INSPECTION AND MAINTENANCE........................26 OTHER SCHEDULED PREVENTATIVE MAINTENANCE....................26 CLEANING THE EQUIPMENT.............................27...

  • Page 7: Safety Instructions

    ● If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine.
  • Page 8 Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at fi rst signs of wear. Use only TRUE supplied components. ● Replace any warning label at the fi rst sign of wear. Labels and the facility safety sign may be obtained from TRUE.

  • Page 9: General Care And Maintenance

    When replacing any component, use only TRUE supplied parts. ● Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE product support (service@truefi tness.com // 800.883.8783).

  • Page 10: Commercial Maintenance Schedule

    Clean and condition upholstery. Clean and polish frame. Clean and polish chrome. Lubricate pivot bearings and linear bearings. Replace cables if equipped. COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truefi tness.com.

  • Page 11: Dimensions And Weights

    DIMENSIONS AND WEIGHTS ● ASSEMBLED DIMENSIONS (W X D X H) 70.5" x 76” x 49” / 179.1 cm x 193 cm x 124.5 cm HEIGHT 49” 124.5 cm DEPTH 76” WIDTH 193 cm 70.5" 179.1 cm ● PRODUCT WEIGHT 670 lbs / 304 kg ●...

  • Page 12: Label Locations

    SPL-00-LBLSN (Serial Number) WARNING AND INTENDED USE LABELS WARNING: Replace all labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefi tness.com // 800.883.8783). Description Image LBL-ADJ-PLS1000R (Seat Adjustment Lock)
  • Page 13 START SQUAT L BL- PR O-PL S1 000 LBL-WRN-PLS1000 (General Warning) SERIOUS CRIPPLING INJURY CAN OCCUR IF THE LIFTING CARRIAGE DROPS SUDDENLY. TO AVOID INJURY FOLLOW THESE PRECAUTIONS. 1. BEFORE USING: Read all of the warnings and obtain instruction on the use of this 8.

  • Page 14: Assembly Instructions

    DO NOT use a box cutter. DO NOT slice into the packaging. VERIFY BOX CONTENTS IMPORTANT! Please verify all box contents. If you have questions, or if there are any missing parts, contact product support (service@truefi tness.com // 800.883.8783). TOOLS NEEDED FOR ASSEMBLY Wire Cutters or Scissors...
  • Page 15 BOX CONTENTS BOX CONTENTS Item Image Item Image Base Frame Assembly Left Rail Assembly Center Frame Assembly Right Rail Assembly Rear Frame Wood Rail Spacers Assembly Storage Weight Post Assemblies Seat Pad Assembly Foot Plate Assembly Back Pad Assemblies Pad Kit Hardware Seat Frame Assembly Manual...

  • Page 16: Assembly Steps

    Tools Used in this Step Parts Used in this Step 3/8" Allen Wrench PART# DESCRIPTION (ball end PLS-10-BFR100X PLS1000 BASE FRAME ASSEMBLY recommended) PLS-10-RFR100X ASSEMBLY, PLS1000 REAR FRAME C 640A SHCS, 1/2"-13 X 1", BLK C 750B LOCK WASHER, 1/2MED.SPLIT, BLACK BED 1.
  • Page 17 Tools Used in this Step Parts Used in this Step 3/8" Allen Wrench PART# DESCRIPTION (ball end recommended) PLS-10-BFR100X PLS1000 BASE FRAME ASSEMBLY PLS-10-CBR210X CTR BRACE X ASSY C 640A SHCS, 1/2"-13 X 1", BLK C 750B LOCK WASHER, 1/2MED.SPLIT, BLACK BED...
  • Page 18 PLS1000 BASE FRAME ASSEMBLY recommended) PLS-10-CBR210X CTR BRACE X ASSY PLS-10-RFR100X ASSEMBLY, PLS1000 REAR FRAME PLS-10-MFR210X ASSEMBLY, PLS1000 USER LEFT LINEAR RAIL PLS-10-MFR260X ASSEMBLY, PLS1000 USER RIGHT LINEAR RAIL PLS-10-ALG000 ASSEMBLY, PLS1000 RAIL ALIGNMENT C 640A SHCS, 1/2"-13 X 1", BLK C 750B LOCK WASHER, 1/2MED.SPLIT, BLACK BED...
  • Page 19 STEP 3—ASSEMBLE SIDE RAIL ASSEMBLIES TO CENTER, REAR, AND BASE FRAME CONTINUED... 3. Once all the hardware is fi nger tight and both of the wooden alignment pieces are on each rail, use a 3/8" ball end allen wrench to fully tighten all frame hardware.
  • Page 20 3/16” Allen Wrench PART# DESCRIPTION (long extension, ball SEAT FRAME ASSEMBLY end bit, and ratchet PLS-10-MFR210X ASSEMBLY, PLS1000 USER LEFT LINEAR RAIL recommended) PLS-10-MFR260X ASSEMBLY, PLS1000 USER RIGHT LINEAR RAIL PLS-10-ALG000 ASSEMBLY, PLS1000 RAIL ALIGNMENT D 312M BEARING, PILLOW BLOCK 25MM...
  • Page 21 STEP 4—ASSEMBLE SEAT FRAME TO RAIL ASSEMBLIES CONTINUED 3. Using at least two people, carefully set the seat 4. Using at least two people, remove the wooden frame assembly onto the rails, making sure to rest alignment piece and slide the bearing assemblies the seat on the bottom bumpers.
  • Page 22 STEP 5—ATTACH PADS TO SEAT FRAME Parts Used in this Step Tools Used in this Step PART# DESCRIPTION 5/16" Allen Wrench (ball end PLS1000 PAD KIT PAD KIT recommended) PAD KIT HARDWARE C 749B LOCK WASHER, 3/8", BLK ZP C 754B WASHER, FLAT, 3/8"...
  • Page 23 Tools Used in this Step Parts Used in this Step 3/8" Allen Wrench PART# DESCRIPTION (ball end PLS-10-BFR100X PLS1000 BASE FRAME ASSEMBLY recommended) PLS-10-FPT000X ASSEMBLY, FOOT PLATE C 640A SHCS, 1/2"-13 X 1", BLK C 755B WASHER, FLAT, 1/2" SAE Z.P.
  • Page 24 STEP 7—ATTACH WEIGHT POST ASSEMBLIES Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench PART# DESCRIPTION (ball end PLS-00-PST030X ASSEMBLY, WEIGHT HORN (STORAGE) recommended) PLS-00-CAP005 ARM BOLT CAP C 749B LOCK WASHER, 3/8", BLK ZP C 622A SHCS, 3/8"-16 X 3/4"...
  • Page 25 STEP 8—GREASE RAILS Tools Used in this Step Magnalube ® Grease and Cloth (recommended) Grease the Rails Apply grease to both the right and left rails and use a clean cloth to wipe away excess. left rail right rail...
  • Page 26 STEP 9—VERIFY ALL ADJUSTMENTS FUNCTION AS INTENDED Verify Adjustments • Rotate both the right and left side adjustment handles to place them in the unlocked or locked position. • Grab both handles and place them in the unlocked position when you want to perform the exercise. •...

  • Page 27: Preventative Maintenance

    The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE is not responsible for performing or scheduling regular maintenance or inspections.

  • Page 28: Cleaning The Equipment

    Shrouds—Use a mild soap solution to clean dirt and grease marks. CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

  • Page 29: Warranty Information

    *This limited warranty on the structural frame does not purchaser and the parts of the TRUE product (the include paint or coatings. The frame is defi ned as the “Product”) listed below, under normal use and service,...
  • Page 30 PLS1000 LIMITED WARRANTY Save Time and Register Online! Activate Multiple Warranties at truefi tness.com THE TRUE LIMITED WARRANTY IS SUBJECT TO AND WILL BE IN ACCORDANCE WITH THE CONDITIONS SET FORTH BELOW: This limited warranty is valid for the United States and 13.
  • Page 31 SERIAL NO: 23-PLSXX00000 Thank you for purchasing a TRUE product. To validate the TRUE product warranty the fast and easy way, please go on- line now to truefi tness.com and register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose.
  • Page 32 T R U E F I T N E S S . C O M I N T E G R I T Y M A T T E R S TRUE Fitness Technology, Inc | 865 Hoff Road, St. Louis, MO 63366 © 2023 TRUE. All Rights Reserved.
