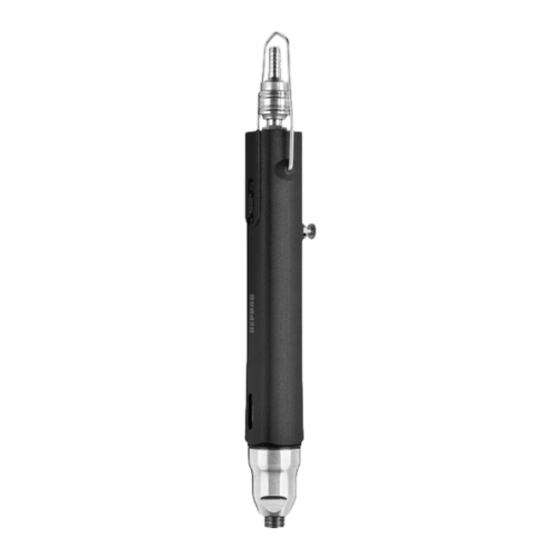

- Page 1 011655EN Operating Instruction Booklet Screwdriver Spindle 347-228-31U 386373 A 347-328-31U 386373 B 347-528-31U 386373 C MINIMAT-ULTRA...
-
Page 2: Table Of Contents
If you need additional information, please contact your DEPRAG Representative, one of our international support offices or us direct at DEPRAG. We will be happy to answer any questions. Please visit our web site: www.deprag.com Content 1 SAFETY TIPS ........................3... -
Page 3: Safety Tips
Safety Tips 1.1. General Safety Tips Before operating tool make sure to carefully read and observe this operating instruction. Generally, the operator of the equipment and/or machinery is responsible for the equipment’s perfect condition and operation, while observing all necessary safety regulations. -
Page 4: General Safety Tips For Pneumatic Screwdriver Spindle
1.2. General Safety Tips for Pneumatic Screwdriver Spindle • Disconnect the tool from the air supply, when changing bits or when re-adjusting clutch. • Do not wear wide clothing or jewelry, for they can be seized by movable parts. Wear a hairnet if operator has long hair. •... -
Page 5: Operator Obligation
1.4. Operator Obligation Personnel, who is engaged in the operation of the equipment, must always be committed to • observe the basic safety and accident preventing regulations, • read and observe the safety and warning notifications of this operating instruction booklet. 1.5. -
Page 6: Symbol Description
1.6. Symbol Description Read and observe the Operating Instruction Booklet, prior to and during operation of tool. DANGER Reference to an immediate danger to a person. May lead to serious injuries or even death, if unobserved! Properly recycle environmentally damaging grease, cooling agents or detergents. - Page 7 ESD-protected area Equipment may be damaged or destroyed by an electrostatic discharge. Maintenance and repair on hydraulic and pneumatic equipment may only be performed by specially trained personnel! Disconnect equipment from air supply, prior to repair of pneumatic or hydraulic equipment. Provide regular preventive maintenance on hoses and airlines.
-
Page 8: Observe Environmental Regulations
1.7. Observe Environmental Regulations When working on or with the equipment, it is imperative to observe all requirements in regards to waste-disposal and proper recycling. Especially during installation, repair or maintenance, water damaging agents such as • lubricating grease and oil •... -
Page 9: Installation
The hose length should not exceed 2 meters. • All DEPRAG Screwdrivers, may be operated either with or without lubricated air. (see paragraph: Maintenance and Upkeep) When operating with oilfree air, a performance reduction of up to 20% occurs and maintenance requirements increases! •... - Page 10 Wir empfehlen als die optimale Lösung für den Betrieb von Schraubern in Vorrichtungen, Maschinen etc. mit Steuerung, die Variante b) mit Dosieröler. • Überprüfen Sie den Fließdruck an der Maschine. Mit dem Druckregler muss ein Fließdruck zwischen 5 und 6,3 bar eingestellt werden. Ein höherer Fließdruck führt zu erhöhtem Verschleiß.
-
Page 11: Operation
Operating the clutch using a clutch spring which exceeds its allowable torque, leads to a reduction of the torque accuracy. The necessary torque adjustment can be tested, using a DEPRAG Torque Wrench or Dynamometer (see DEPRAG catalogs D3020 and D 3022). This equipment can also be used to re-adjust the torque of the Screwdriver Spindle. -
Page 12: Range And Exchange Of Clutch Spring
4.1. Range and Exchange of Clutch Spring The torque range of the DEPRAG Screwdriver is adjustable. Please see a listing for the torque ranges of the color-coded springs below. Torque Range of the individual clutch spring: -∅ PART COLOR TORQUE... -
Page 13: Torque Adjustment
half-round clutch spring adjustment nut bore 326111 Picture: Change of Clutch Spring Attention: The claw of the intermediate ring has to engage with the claw in the spindle! The clutch can be adjusted again externally (see section Torque Adjust- ment). Make sure to screw adjustment (adjusting) nut onto clutch bearing until one line of the thread is visible. -
Page 14: Bit Exchange
4.3. Bit Exchange Attention: Before exchange of bits, clutch bearing has to be in place and driver needs to be disconnected from air supply. To change bits, refer to picture Change of bits: • Unscrew spring sleeve 364672 A (Accessories - Optional equipment) (left- hand thread) –... - Page 15 Function Description / Driver Start Picture: Installation For reversible tools please note: • Right-hand direction of screwdriver will be started by a remote valve via the air connector on top of the screwdriver and screwdriver will shut off in this direction at the preset torque. •...
-
Page 16: Assembly - Disassembly
After repair or maintenance, verify that equipment runs to specification! Principally, use only DEPRAG original spare parts. Otherwise, a reduction in equipment power-output and an increased maintenance-requirement occurs. If NON-DEPRAG parts are installed, DEPRAG is justified to void any existing warranty and liability obligations. Attention:... -
Page 17: Correct Assembly Of Shut-Off Function On Clutch
Assembly: Use the DEPRAG Grease 807293 (100-g tube) to grease the ball bearing, needle bearing and gearing parts prior to reassembly. For assembly proceed logically in reverse order with reference to disassem- bly. Special Repair Tools (Optional Equipment) ESCRIPTION Plier (for clutch bearing 356293) -
Page 18: Spare Part Drawing
5.2. Spare Part Drawing... -
Page 21: Installation Tips For Screwdriver Spindle
5.3. Installation Tips for Screwdriver Spindle... -
Page 22: Maintenance And Upkeep
6 months (single shift). • Exchange broken or worn plug in tools immediately, for they can cause injury to the Operator. • If tool malfunctions, we recommend to send the machine to DEPRAG. 6.1. Wear Parts UANTITY... -
Page 23: Trouble Shooting
Maintain air pressure of 90 PSI shut-off or for required torque ratchets value Valve Pin is too long Check length of valve pin, either shorten or replace valve pin (picture: Actual Size of Valve Pin) If necessary, please send tool to DEPRAG for service. -
Page 24: Delivery Capacity
Picture: Actual Size of Valve Pin Attention: When connecting to compressed air supply valve pin may be catapulted out which may cause serious injuries. When verifying the actual size of the valve pin, make sure N O T to hold the screwdriver directed towards yourself or any other person. -
Page 25: Accessories Are Optional Equipment
Finder and bit are not included in the delivery capacity of the spring sleeve. You will find suitable inserting tools • in our brochure D 3320 E or • → Screwdriving in the internet as follows: www.deprag.de Technology→ Selection program: Inserting tools... - Page 26 A complete exhaust hose connection # 386924 A (vertical) or # 386924 B (horizontal) is available as an optional item. Please mount exhaust connection as follows: Disconnect driver form air supply. Clamp driver always with chucking jaws into a vice, utilizing the flats of the motor housing.
-
Page 27: Storage
10 Storage Unused machines should be stored in a dry, locked area. 11 Technical Data Manufacturer DEPRAG SCHULZ GMBH u. CO. Address Kurfürstenring 12 - 18 Postfach 1352 D-92224 Amberg D-92203 Amberg Phone 09621/371-0 09621/371-120 Technical Data: 347-228-31U 347-328-31U 347-528-31U... -
Page 28: Disposal
12 Disposal Unused machines should be stored in a dry, locked area. Disassemble the machine for the required disposal complete. Observe local and environmental regulations for the separation and recycling of materials. Recycle waste oil to avoid environmental contamination! Waste Oil... -
Page 29: Declaration Of Manufacturer
13 Declaration of Manufacturer EC-Declaration of Manufacturer in accordance with the CE-Machine-Guideline 98/37/EC, appendix II B DEPRAG SCHULZ GMBH u. CO. Kurfürstenring 12 – 18 Postfach 1352 D-92204 Amberg D-92203 Amberg declares, that the construction of the Stationary Screwdriver Spindle... -
