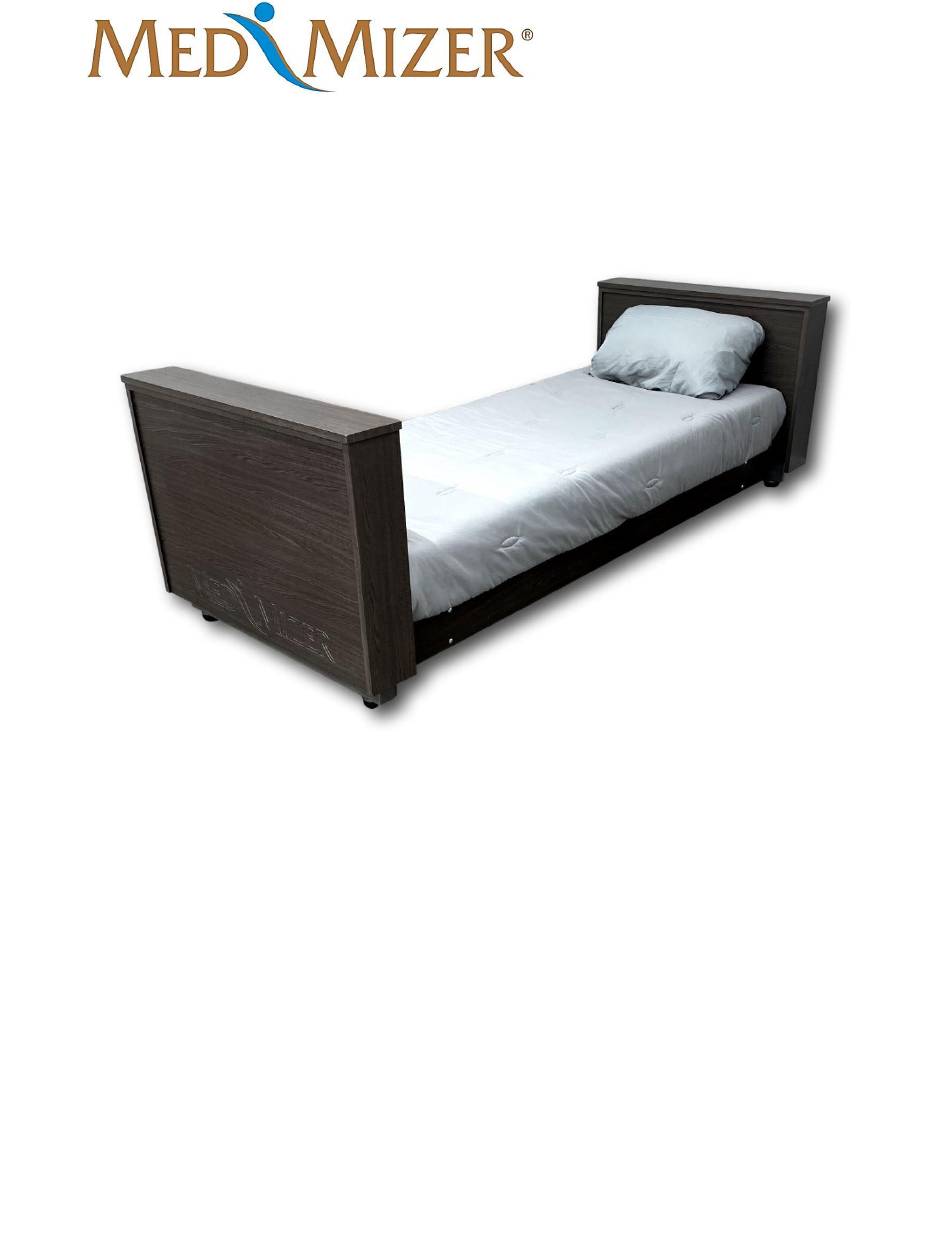

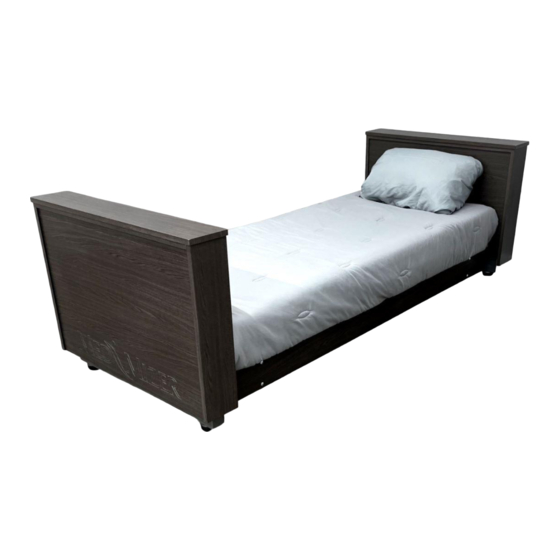

- Page 1 SelectCare User Manual Revision 01 SelectCare USER MANUAL For Parts or Technical Assistance - (877) 867-7365 MAN-SelectCare REV01 SelectCare USER MANUAL Page 1 of 19...
-
Page 2: Table Of Contents
SelectCare User Manual Revision 01 TABLE OF CONTENTS Overview Introduction Intended Use Safety Information Specifications Options and Accessories Delivery and Setup Unpacking Assembly Sleep Deck Disassembly Operation Control Options Bed Height Adjustment Head and Knee Adjustment Caster Mode Bed Deck Expansion & Retraction... -
Page 3: Overview
NOTICE: The information in this document is subject to change without notice. Intended Use The SelectCare Bed is intended to provide means for a single occupant to recline and sit, and to assist the occupant in moving between reclining, sitting and standing positions. - Page 4 SelectCare User Manual Revision 01 WARNING Close supervision by an adult who has read and understands this User Manual is required when the bed is used around children or others who have not or cannot read and/or understand this User Manual.
- Page 5 Options and Accessories Safety CAUTION Use only bed accessories and bed replacement parts supplied or approved by Med-Mizer® for this bed. Third party accessories and replacement parts that are not approved by Med-Mizer® may result in personal injury or equipment damage.
-
Page 6: Specifications
SelectCare User Manual Revision 01 Cleaning Safety WARNING Do not spill or spray liquid on the bed. Excessive liquid on the bed can result in an electric shock hazard. In the event of a liquid spill or excessive liquid on the bed, unplug the bed immediately. -
Page 7: Delivery And Setup
SelectCare User Manual Revision 01 Delivery and Setup Unpacking Tools needed • Side Cutter (cutting tool to remove shrink wrap and banding) • ½ socket • Ratchet or Impact to remove shipping bolts 1. Remove all shrink wrap and banding with cutting tool, then remove all contents from the boxes and place gently on floor to ensure all parts of the bed are received. -
Page 8: Assembly
SelectCare User Manual Revision 01 Head end Foot end shipping bolts shipping bolts Bed flat on casters Assembly Tools Needed • 5/8 Wrench • 5/8 Socket • Impact or Ratchet • 7/16 Wrench • Cutting tool (Cut zip ties) • #3 Phillips Screwdriver... - Page 9 SelectCare User Manual Revision 01 1. Attach high/low assemblies to the main sleep frame. a. Make sure to put the head high/low and foot high/low on the correct ends of the bed. b. Locate bed hardware. c. Attach high/low assemblies making sure the boss is under the boss on the bed frame.
- Page 10 SelectCare User Manual Revision 01 Hardware High/low boss under the bed frame boss Both ends attached to the bed frame 2. Remove all zip ties from sleep surface. Zip Ties MAN-SelectCare REV01 SelectCare USER MANUAL Page 10 of 19...
- Page 11 SelectCare User Manual Revision 01 3. Plug in the high/low actuators on both bed ends. a. Plug cable into actuator. b. Push locking clip in firmly (Clips are located with the user manual of the bed) c. Zip tie remaining cable to existing washers on frame. (Zip ties are...
- Page 12 SelectCare User Manual Revision 01 Zip tie remaining cable 4. Install head and foot boards. a. Place head/foot board (boards are identical) on the high/low assembly with the cut out facing the mattress. b. Locate board hardware and attach the bolts using your Phillips #3 screwdriver.
- Page 13 SelectCare User Manual Revision 01 5. Install side board runners. a. Locate hardware. b. Put carriage bolts through the holes on the boards and attach to bed caster mounts. Fasten with the jam nuts provided. Caster mounts with runner locating holes...
-
Page 14: Sleep Deck Disassembly
SelectCare User Manual Revision 01 Sleep Deck Disassembly Tools Needed • 5/8 Wrench • 5/8 Socket • Impact or Ratchet 1. Remove all parts of the bed from the sleep surface frame. Once removed, flip the bed from the casters onto the sleep surface. - Page 15 SelectCare User Manual Revision 01 3. Unplug cables #3 and #4. 3 and 4 unplugged 4. Using 5/8 wrench and socket, unbolt the two main bolts of sleep surface and slide sections apart. Remove bolts Recommended to furniture dolly to maneuver sections once apart.
-
Page 16: Operation
SelectCare User Manual Revision 01 Operation Control Options Handset (Standard with Bed) ACO Foot End Control Panel (Optional) Articulation Head, Deck Elevation, Auto-Contour, Knee and Trendenlenburgs – Hold the button down until the desired position is achieved. Cardiac Chair – Hold the button down until the desired position is achieved. However, the pre- determined position will take some time and each motor operated independently. -
Page 17: Bed Deck Expansion & Retraction
SelectCare User Manual Revision 01 NOTE: Caster mode is not intended to provide a means for transport of the occupant. Do not attempt to operate any bed functions while in caster mode. Bed Deck Expansion or Retraction To expand the deck push the two buttons simultaneously and pull the tube, release the button until the desired width is achieved. -
Page 18: Maintenance
Check that screws, bolts, pins and other fasteners are in Remove bed from service. Tighten loose bolts and screws. place, secured and properly tightened. Contact Med-Mizer® customer service to order missing or damaged fasteners. Inspect actuators for excessive wear and misalignment. -
Page 19: Service Part List
If requested by Med-Mizer, products or parts for which a warranty claim is made shall be returned prepaid to Med-Mizer’s factory. Any improper use or any alteration or repair by others in such manner as in Med- Mizer’s judgment affects the product materially and adversely shall void this warranty.
