Summary of Contents for Med-Mizer EX5000

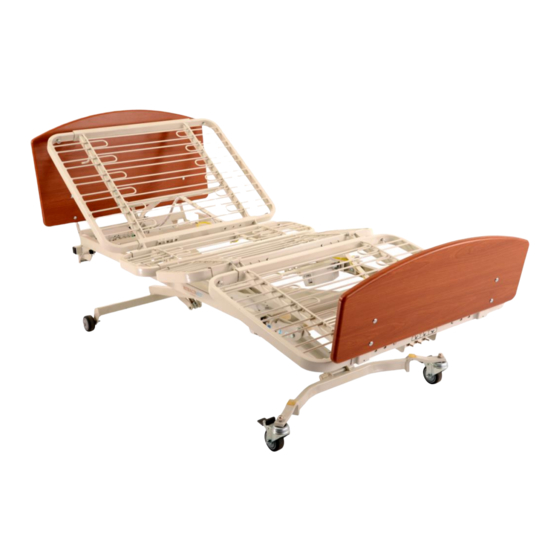

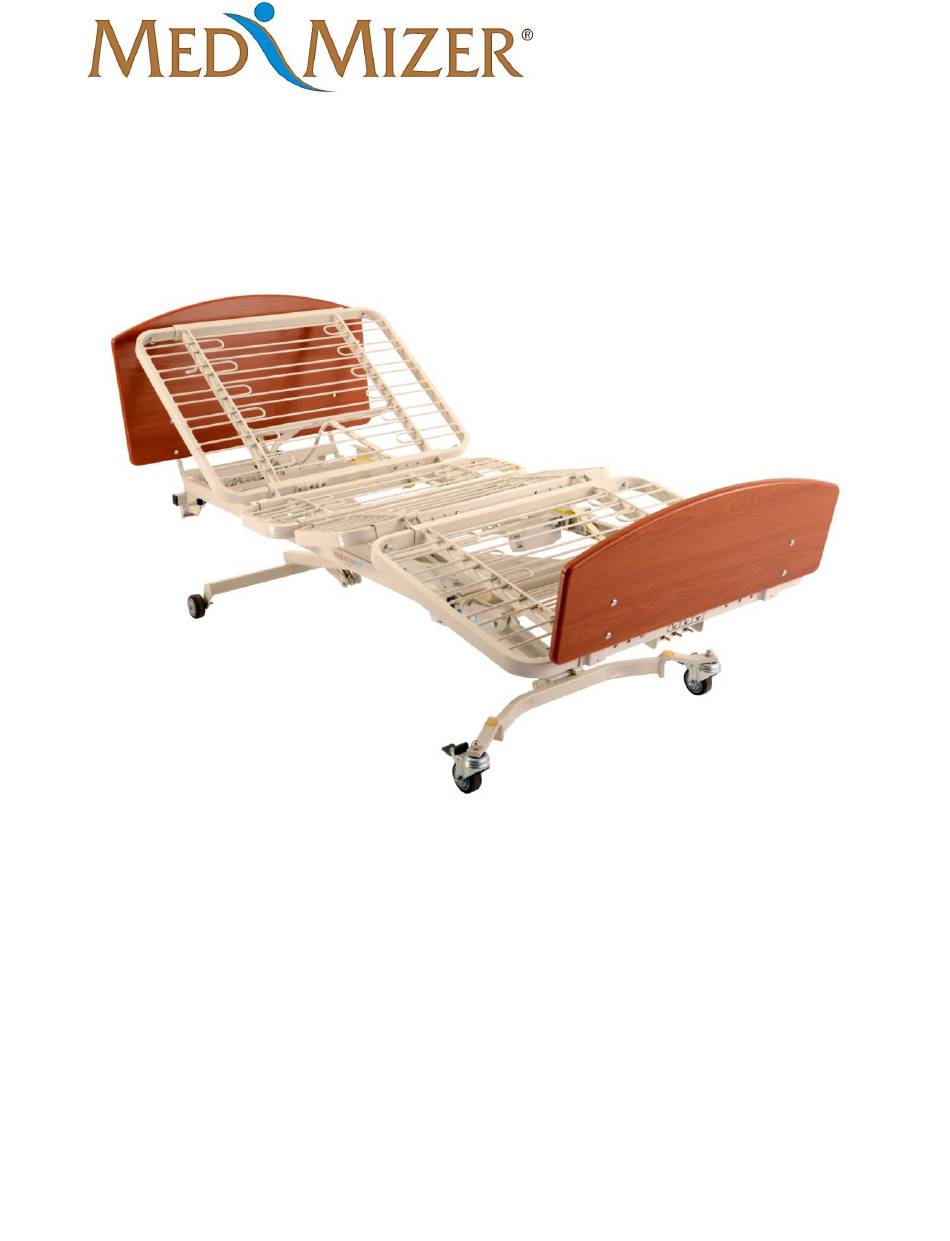

- Page 1 EX5000 User Manual Revision 01 EX5000 USER MANUAL For Parts or Technical Assistance - (877) 867-7365 MAN-EX5000 REV01 EX5000 USER MANUAL Page 1 of 13...
-
Page 2: Table Of Contents
EX5000 User Manual Revision 01 TABLE OF CONTENTS Overview Introduction Intended Use Safety Information Specifications Options and Accessories Preparation for Use Unpacking Assembly Operation Control Options Bed Height Adjustment Head and Knee Adjustment Foot Elevation Bed Transport Articulation Lockout Bed Deck Expansion & Retraction... -
Page 3: Overview
NOTICE: The information in this document is subject to change without notice. Intended Use The EX5000 Bed is intended to provide means for a single occupant to recline and sit, and to assist the occupant in moving between reclining, sitting and standing positions. - Page 4 EX5000 User Manual Revision 01 WARNING Close supervision by an adult user who has read and understands this User Manual is required when the bed is used around children or others who have not or cannot read and/or understand this User Manual.
- Page 5 Options and Accessories Safety CAUTION Use only bed accessories and bed replacement parts supplied or approved by Med-Mizer® for this bed. Third party accessories and replacement parts that are not approved by Med-Mizer® may result in personal injury or equipment damage.
-
Page 6: Specifications
EX5000 User Manual Revision 01 CAUTION Follow manufacturer’s instructions for proper use of cleaning agent. Improperly diluted or improperly applied cleaning agents can result in inadequate disinfection or a caustic burn hazard. Maintenance and Service Safety WARNING Before performing bed maintenance or service, unplug the power cord to avoid an electric shock hazard. -
Page 7: Preparation For Use
EX5000 User Manual Revision 01 End Board Options Headboard and Footboard Finish Options Custom Headboard and Footboards Available Factory Installed Options 4 Swivel Caster Upgrade Battery Backup Surelock or 1 Step Lock (See how to use in the Operations part of the manual.) -
Page 8: Assembly
EX5000 User Manual Revision 01 Assembly Tools Required: None To prepare bed for first use: 1. Attach the headboard to the bed by placing the headboard against in the slots located on the inner-mediate frame. Ensure that metal headboard bracket is firmly seated within the channels. -
Page 9: Head And Knee Adjustment
EX5000 User Manual Revision 01 Head and Knee Adjustment The head and knee elevation controls are located on the inside of side rail or assist bar and on the face of the hand held handset. The head-up arrow raises the head section, and the head-down arrow lowers the head section. -
Page 10: Articulation Lockout
EX5000 User Manual Revision 01 Articulation Lock-out Powered bed movement may be disabled by activating the lock-out switch, located under the foot section of the bed deck centered at the foot. Each individual operation can be locked out separately. Bed Deck Expansion or Retraction... -
Page 11: Surelock Operation
4. Inspect the casters for wear and tear. Preventative Maintenance Inspections Problem Resolution Inspect bed frame for cracks, tears or bending, Remove bed from service. Contact Med-Mizer® particularly at welds and joints. customer service. Inspect electrical enclosures for cracks or other Remove bed from service. -
Page 12: Service Part List
Remove bed from service. Contact Med-Mizer® customer service to replace non-locking casters. Verify that all bed control switches operate Contact Med-Mizer® customer service. correctly. Service Parts List Contact Med-Mizer® customer service at (877) 867-7365 to order parts Part Part Description Description 5004... -
Page 13: Warranty
Med-Mizer, found to be defective. This warranty does not cover failure due to negligence, accident, abuse or installation not in accordance with the company’s instructions or failure to follow maintenance instructions.
