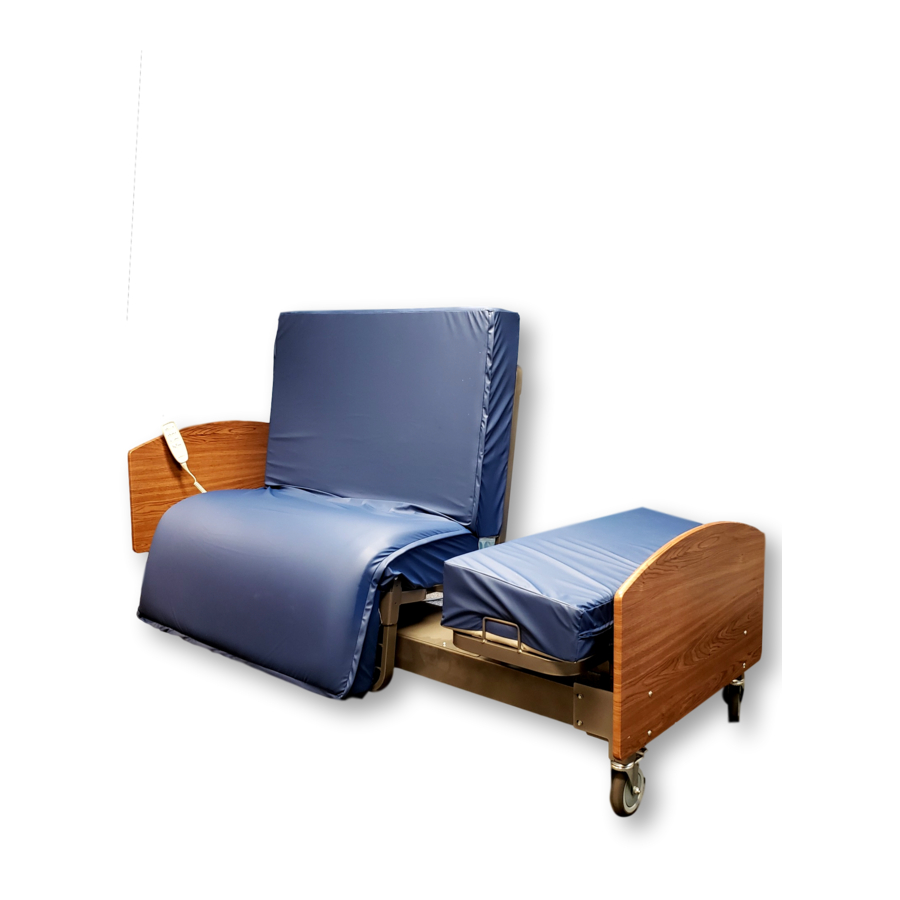

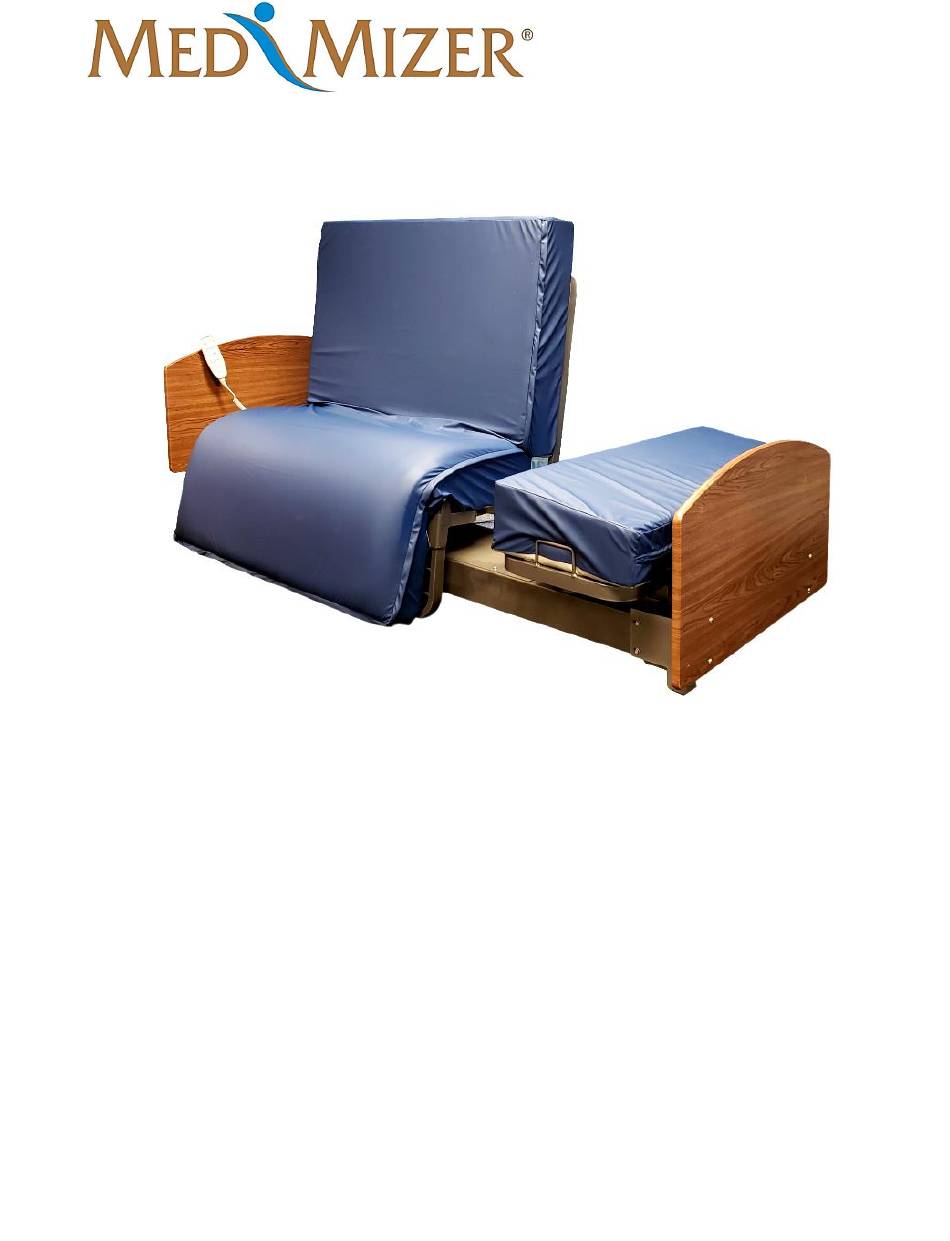

- Page 1 ActiveCare - Fixed User Manual ActiveCare-Fixed USER MANUAL For Parts or Technical Assistance - (877) 867-7365 MAN-ActiveCare REV02 ActiveCare Fixed USER MANUAL Page 1 of 25...
-
Page 2: Table Of Contents
ActiveCare - Fixed User Manual TABLE OF CONTENTS Overview Introduction Intended Use Safety Information General Use Safety Specifications Intended Users Bed Placement Dimensions Options and Accessories Preparation for Use Unpacking Assembly Pivot Bed Turn Left Operation Control Options Bed Transport Maintenance Cleaning Maintenance and Service... -
Page 3: Overview
ActiveCare - Fixed User Manual Overview Introduction This manual provides instructions for use of the ActiveCare Bed. Do not operate the bed without first reading and understanding the warnings and cautions provided herein. NOTICE: The information in this document is subject to change without notice. Intended Use The ActiveCare Bed is intended to provide means for a single occupant to recline and sit, and to assist the occupant in moving between reclining, sitting and standing positions. - Page 4 Manual is required when the bed is used around children or others who have not or cannot read and/or understand this User Manual. WARNING The bed mattress must be purchased from Med-Mizer Inc. to meet entrapment zone dimensional guidelines published by the Food and Drug Administration.
- Page 5 Options and Accessories Safety CAUTION Use only bed accessories and bed replacement parts supplied or approved by Med-Mizer® for this bed. Third party accessories and replacement parts that are not approved by Med-Mizer® may result in personal injury or equipment damage.
-
Page 6: Specifications
ActiveCare - Fixed User Manual Cleaning Safety WARNING Do not spill or spray liquid on the bed. Excessive liquid on the bed can result in an electric shock hazard. In the event of a liquid spill or excessive liquid on the bed, unplug the bed immediately. -
Page 7: Intended Users
ActiveCare - Fixed User Manual Intended Users Bed Placement Dimensions MAN-ActiveCare REV02 ActiveCare Fixed USER MANUAL Page 7 of 25... -
Page 8: Options And Accessories
ActiveCare - Fixed User Manual Options and Accessories • UD-MM (Up Down Rails) • MBAR-Left (Mobility Bar Left Side) • MBAR-Right (Mobility Bar Right Side) • 6045 (3” Caster option to raise bed height) • 6195 (5” Caster option to raise bed height) •... -
Page 9: Unpacking
ActiveCare - Fixed User Manual Unpacking (If Shipped LTL/Commercial) Tools Required: Utility knife Side-cutting shears 9/16” Wrench 1. Carefully remove shrink wrap with utility knife. (Do not puncture boxes or mattress) unwrapped Cut the straps holding the boxes, bed and mattress on the pallet. Cut straps MAN-ActiveCare REV02 ActiveCare Fixed USER MANUAL... - Page 10 ActiveCare - Fixed User Manual Remove the boxes and mattress and put off to the side, then lift all four corners to place the bed in its permanent location. 4. Remove tie cables. Cut straps MAN-ActiveCare REV02 ActiveCare Fixed USER MANUAL Page 10 of 25...
- Page 11 ActiveCare - Fixed User Manual 5. Remove white shipping bracket from frame. (use 9/16” wrench) White shipping bracket 6. Remove hand pendant from the box. Hand Pendant MAN-ActiveCare REV02 ActiveCare Fixed USER MANUAL Page 11 of 25...
-
Page 12: Assembly
ActiveCare - Fixed User Manual Assembly Tools Required: • 7/16” Ratchet • 7/16” Socket • Ratchet handle • Soft/Rubber hammer or mallet 1. Removed boards and hardware from box. Once removed, gently hammer in the carriage bolts predrilled holes on the board. Note: Head and foot boards are identical so you will need to do this twice. - Page 13 ActiveCare - Fixed User Manual 2. Locate mounting holes on the foot of the bed to install the board. Mounting holes 3. Install board and bolts onto the foot of the bed, then fasten the flange nuts and tighten with a 7/16” socket. Fastening nuts boards to bed MAN-ActiveCare REV02...
- Page 14 ActiveCare - Fixed User Manual 4. Install headboard to the mounting bracket. Front view of headboard Carriage bolts Rear view with nuts fastened MAN-ActiveCare REV02 ActiveCare Fixed USER MANUAL Page 14 of 25...
- Page 15 ActiveCare - Fixed User Manual Pivot Alignment (If Needed) Tools Required: • (2) ¾” wrenches 1. Go behind the headboard of the bed and find the adjustment bracket and the two bolts. Adjustment Bracket Bolts holding adjustment bracket MAN-ActiveCare REV02 ActiveCare Fixed USER MANUAL Page 15 of 25...
- Page 16 ActiveCare - Fixed User Manual 2. Using the two ¾” wrench loosen each bolt ¼ turn, do not fully disassemble. Once loose, straighten the bed out. View images below to see incorrect alignment and correct alignment. The pivoting and fixed sections of the bed should be parallel. Once straight retighten the bolts.
- Page 17 ActiveCare - Fixed User Manual Mattress Installation 1. Using the auto-contour button raise the head and leg section of the bed. Note: Mattress installation is the same for the fixed, standard, and deluxe models. 2. Locate the straps on the back of the mattress. Straps MAN-ActiveCare REV02 ActiveCare Fixed USER MANUAL...
- Page 18 ActiveCare - Fixed User Manual 3. Place mattress on bed and Velcro the straps to the sleep surface. 4. Install foot portion of the mattress with the slope going towards the foot board. MAN-ActiveCare REV02 ActiveCare Fixed USER MANUAL Page 18 of 25...
-
Page 19: Pivot Bed Turn Left
ActiveCare - Fixed User Manual Pivot Bed Turn Left (factory installed to turn right) Tools required • 17mm wrench • 17mm socket • Drill/Impact 1. In the bed position, raise the height of the bed and head of the bed to its highest point. Bed and head section raised all the way up 2. - Page 20 ActiveCare - Fixed User Manual Image from underneath the bed Corresponding locations to install Actuator mounted actuator Actuator in “Left turn Position” Install fasteners and spacers back in actuator. Tighten the fastener so that the bolt comes through the nylon nut but do not overtighten or the actuator will bind causing damage, Reinstall Spacers as seen in the picture...
-
Page 21: Control Options
ActiveCare - Fixed User Manual Control Options Hand Pendant Control Backrest Up Backrest Down Auto-Contour Up Auto-Contour Down Knee Up Knee Down Rotate Bed into Return Bed to Chair Position Normal Bed Position NOTE: Hold button to rotate entirely, once rotated entirely release button. -
Page 22: Bed Transport
Check that screws, bolts, pins and other fasteners are in Remove bed from service. Tighten loose bolts and screws. place, secured and properly tightened. Contact Med-Mizer® customer service to order missing or damaged fasteners. Inspect actuators for excessive wear and misalignment. -
Page 23: Service Part List
Verify that all bed control switches operate correctly. Contact Med-Mizer® customer service. Service Parts List Contact Med-Mizer® customer service at (877) 867-7365 to order parts PART DESCRIPTION 6201 LINAK POWER CHORD 11 FOOT W/ GROUND CABLE (912143) 6948 HI/LOW &... -
Page 24: Troubleshooting Guide
ActiveCare - Fixed User Manual Troubleshooting Potential Issue Potential Cause Correction The remote control is Reinstall the remote The bed does not Respond to the remote control. not connected into the female port properly. on control box. Defective Remote Replace remote with Control all cables needed. -
Page 25: Warranty
User Manual Warranty Med-Mizer, Inc. warrants to the original purchaser that its products shall be free of defects in material and workmanship for a period of Lifetime on welds: 15 years on the bed frame: 2 years on the drive system; 1 year on wood products, casters, handsets, and miscellaneous parts.
