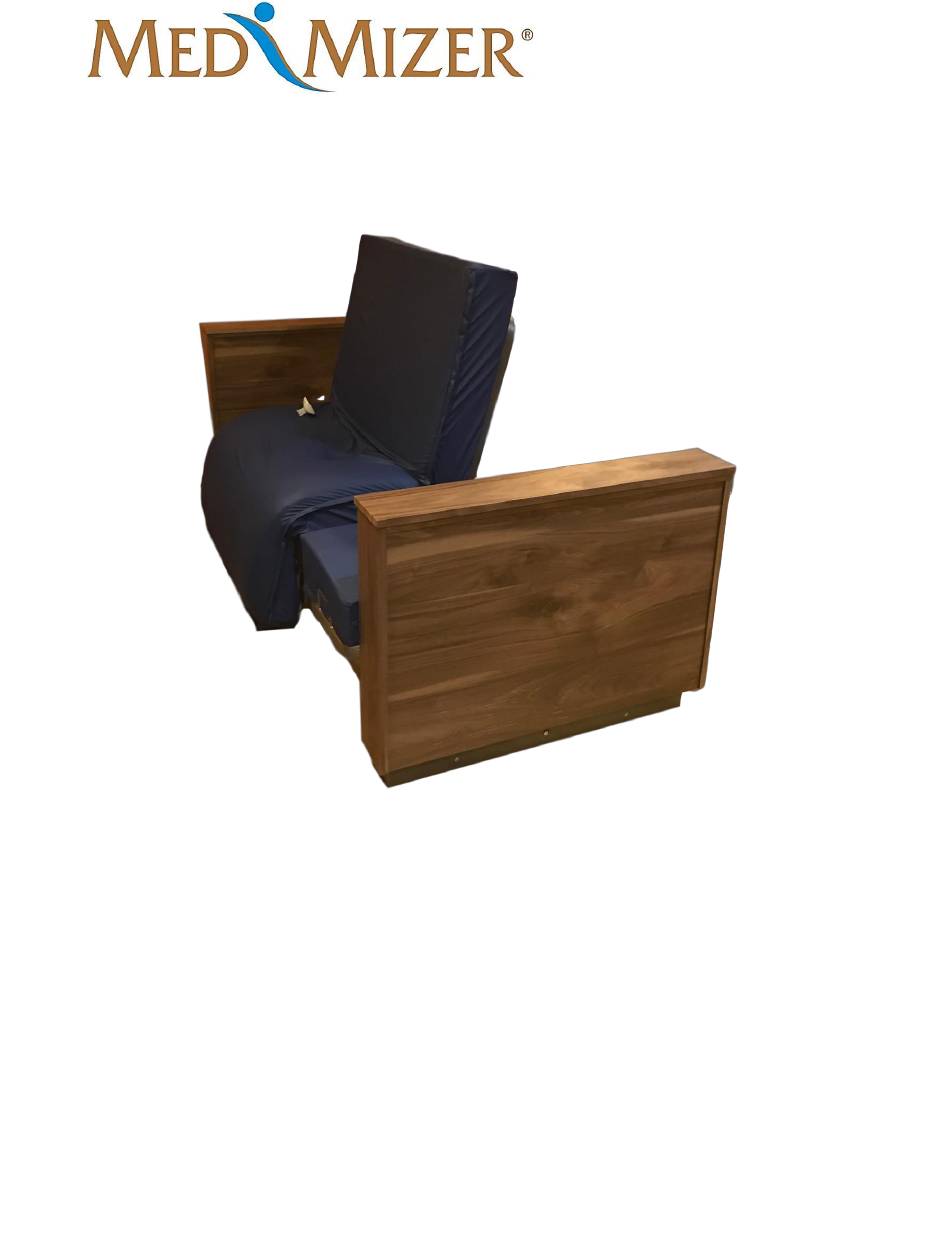

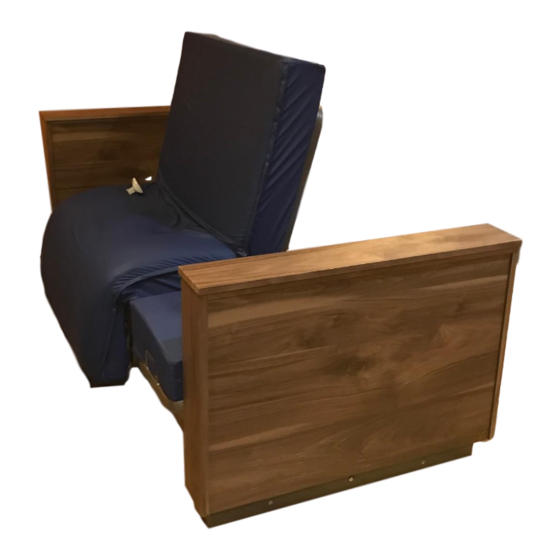

- Page 1 ActiveCare - Deluxe User Manual Revision 04 ActiveCare-Deluxe USER MANUAL For Parts or Technical Assistance - (877) 867-7365 MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 1 of 32...
-
Page 2: Table Of Contents
ActiveCare - Deluxe User Manual Revision 04 TABLE OF CONTENTS Overview Introduction Intended Use Safety Information Specifications Intended Users Bed Placement Dimensions Options and Accessories Preparation for Use Unpacking Assembly Pivot Alignment Mattress Installation Pivot Bed Turn Left Operation Control Options Bed Transport Maintenance Cleaning... -
Page 3: Overview
ActiveCare - Deluxe User Manual Revision 04 Overview Introduction This manual provides instructions for use of the ActiveCare Bed. Do not operate the bed without first reading and understanding the warnings and cautions provided herein. NOTICE: The information in this document is subject to change without notice. Intended Use The ActiveCare Bed is intended to provide means for a single occupant to recline and sit, and to assist the occupant in moving between reclining, sitting and standing positions. - Page 4 Manual is required when the bed is used around children or others who have not or cannot read and/or understand this User Manual. WARNING The bed mattress must be purchased from Med-Mizer Inc. to meet entrapment zone dimensional guidelines published by the Food and Drug Administration.
- Page 5 Options and Accessories Safety CAUTION Use only bed accessories and bed replacement parts supplied or approved by Med-Mizer® for this bed. Third party accessories and replacement parts that are not approved by Med-Mizer® may result in personal injury or equipment damage.
-
Page 6: Specifications
ActiveCare - Deluxe User Manual Revision 04 Cleaning Safety WARNING Do not spill or spray liquid on the bed. Excessive liquid on the bed can result in an electric shock hazard. In the event of a liquid spill or excessive liquid on the bed, unplug the bed immediately. -
Page 7: Intended Users
ActiveCare - Deluxe User Manual Revision 04 Intended Users Bed Placement Dimensions Bed must be 6” from the wall if you are using the Trendelenburg feature. MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 7 of 32... -
Page 8: Options And Accessories
ActiveCare - Deluxe User Manual Revision 04 Options and Accessories • UD-MM (Up Down Rails) • 1/4 Length Deluxe Rail with matching top cap (Standard with bed) • MBAR-Left (Mobility Bar Left Side) • MBAR-Right (Mobility Bar Right Side) • Trendelenburg Hand Pendant •... -
Page 9: Unpacking
ActiveCare - Deluxe User Manual Revision 04 Unpacking (If Shipped LTL/Commercial) Tools Required: • Utility knife/side cutting shears • ½” Socket with rachet/impact driver • 9/16” Wrench 1. Carefully remove outside box and shrink wrap with utility knife. And cut the three straps holding the boxes. - Page 10 ActiveCare - Deluxe User Manual Revision 04 3. Using your ½” socket and impact/drill remove the four anchor bolts at each end of the bed. 4. Lift bed off pallet and rest on the casters in its final location. MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 10 of 32...
- Page 11 ActiveCare - Deluxe User Manual Revision 04 5. Remove cable ties from frame. Cable tie locations 6. Remove white shipping bracket from frame. (use 9/16” wrench) White shipping bracket 7. Remove hand pendant from box. MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 11 of 32...
-
Page 12: Assembly
ActiveCare - Deluxe User Manual Revision 04 Assembly Tools required: • 5/8” Wrench • 5/8” Socket • Impact drill • 6” Impact extension • Side Cutters • 7/16” Wrench • #3 Phillips screwdriver or bit 1. Unbox the head and foot high/low assemblies as well as identify the main frame head and foot. - Page 13 ActiveCare - Deluxe User Manual Revision 04 2. Attach head assembly to the of the main frame. Line up the bosses and pull wires through the front slot of the assembly. Align Bosses Pull wires through front slot MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 13 of 32...
- Page 14 ActiveCare - Deluxe User Manual Revision 04 3. Place the high/low assembly on top of the frame bosses and slide the bolt though bosses. Note: Reference page15 image 4 for a side view. Install bolt into both bosses MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 14 of 32...
- Page 15 ActiveCare - Deluxe User Manual Revision 04 4. Fasten the nut and bolt together using a 5/8” wrench, impact/drill, impact extension, and 5/8” socket. Note: Very important to tighten nut on bolt thoroughly 5. Plug high/low actuator cable into actuator. Push in cable thoroughly, then press clip in to lock cable into place.
- Page 16 ActiveCare - Deluxe User Manual Revision 04 Press cable clip in to fasten cable 6. Attach cable cord to lift column using two zip ties provided with the bed. Cut excess when cord is attached. Attach zip ties MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 16 of 32...
- Page 17 ActiveCare - Deluxe User Manual Revision 04 7. Repeat steps 2 through 6 for the foot high/low assembly. 8. Unbox the end boards for the bed. Note: (End boards are identical for head and foot) 9. Locate tapped mounting holes on each end of the high/low assemblies. Tapped mounting holes MAN-ActiveCare REV04...
- Page 18 ActiveCare - Deluxe User Manual Revision 04 10. Slide end board over high/low assembly and screw the Philips pan head bolt into the tapped holes. Do this for both the head and foot assemblies. End boards fastened to bed 11. Plug bed into power source and raise all the way up to locate the holes for the side runners.
- Page 19 ActiveCare - Deluxe User Manual Revision 04 12. Install carriage bolt into outside of runners and attach to the bed while fastening the nut on the inside of the frame. Do this to both sides of the bed. Carriage Bolts MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 19 of 32...
- Page 20 ActiveCare - Deluxe User Manual Revision 04 13. Position the Under Bed Lights (UBL) properly on the runners of the bed. Slide the tab of the UBL hanger into the positioning hole on the runner as shown. The UBL is simply held in place using magnets.
-
Page 21: Pivot Alignment
ActiveCare - Deluxe User Manual Revision 04 Pivot Alignment (If Needed) Tools Required: • (2) ¾” wrenches 1. With the head high/low assembly and headboard removed you will find the adjustment bracket and two bolts under the head section. Adjustment Bracket Bolts holding adjustment bracket... - Page 22 ActiveCare - Deluxe User Manual Revision 04 2. Using the two ¾” wrench loosen each bolt (roughly) ¼ turn, do not fully disassemble. Once loose, straighten the bed out. View images below to see incorrect alignment and correct alignment. The pivoting and fixed sections of the bed should be parallel. Once straight retighten the bolts.
-
Page 23: Mattress Installation
ActiveCare - Deluxe User Manual Revision 04 Mattress Installation 1. Using the auto-contour (refer to control options) button raise the head and leg section of the bed. Note: Mattress installation is the same for the fixed, standard, deluxe model and widths. Tie down points for mattress straps 2. - Page 24 ActiveCare - Deluxe User Manual Revision 04 3. Place mattress on bed and Velcro the straps to the sleep surface. 4. Install foot portion of the mattress with the slope down going towards the foot board. MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 24 of 32...
-
Page 25: Pivot Bed Turn Left
ActiveCare - Deluxe User Manual Revision 04 Pivot Bed Turn Left (factory installed to turn right) Tools required • 17mm wrench • 17mm socket • Drill/Impact 1. In the bed position, raise the height of the bed and head of the bed to its highest point. Bed and head section raised all the way up 2. - Page 26 ActiveCare - Deluxe User Manual Revision 04 Image from underneath the bed Corresponding locations to install Actuator mounted actuator Actuator in “Left turn Position” Install fasteners and spacers back in actuator. Tighten the fastener so that the bolt comes through the nylon nut but do not overtighten or the actuator will bind causing damage, Reinstall Spacers as seen in the picture...
-
Page 27: Control Options
ActiveCare - Deluxe User Manual Revision 04 Control Options Hand Pendant Control Backrest Up Backrest Down Bed Height Up Bed Height Down Auto-Contour Up Auto-Contour Down Knee Up Knee Down Rotate Bed into Return Bed to Chair Position Normal Bed Position Transport Mode Under Bed Lights Switch... -
Page 28: Bed Transport
Check that screws, bolts, pins and other fasteners are in Remove bed from service. Tighten loose bolts and screws. place, secured and properly tightened. Contact Med-Mizer® customer service to order missing or damaged fasteners. Inspect actuators for excessive wear and misalignment. -
Page 29: Service Part List
Verify that all bed control switches operate correctly. Contact Med-Mizer® customer service. Service Parts List Contact Med-Mizer® customer service at (877) 867-7365 to order parts PART DESCRIPTION 6201 LINAK POWER CHORD 11 FOOT W/ GROUND CABLE (912143) 6947 HI/LO BARIATRIC ACTUATOR (400504000A0M0G26+12DB16134200) 6948 HI/LOW &... - Page 30 ActiveCare - Deluxe User Manual Revision 04 7167 SIDE RUNNER, ACTIVECARE DELUXE "RIFT GRAY" 7168 ACTIVECARE DELUXE HANDRAIL CAP "OBSIDIAN" 7169 END BOARD, ACTIVECARE DELUXE "OBSIDIAN" 7170 SIDE RUNNER, ACTIVECARE DELUXE "OBSIDIAN" 7171 ACTIVECARE DELUXE HANDRAIL CAP "GRAND WALNUT" 7172 END BOARD, ACTIVECARE DELUXE "GRAND WALNUT" 7173 SIDE RUNNER, ACTIVECARE DELUXE "GRAND WALNUT"...
-
Page 31: Troubleshooting
ActiveCare - Deluxe User Manual Revision 04 Troubleshooting Potential Potential Issue Cause Correction The power cord is Plug power cord not plugged into a into working working outlet. outlet. The remote does not back light and bed has no function. Reinstall the The remote control remote into the... -
Page 32: Control Box Reinitialization
Warranty Med-Mizer, Inc. warrants to the original purchaser that its products shall be free of defects in material and workmanship for a period of Lifetime on welds: 15 years on the bed frame: 2 years on the drive system;...
