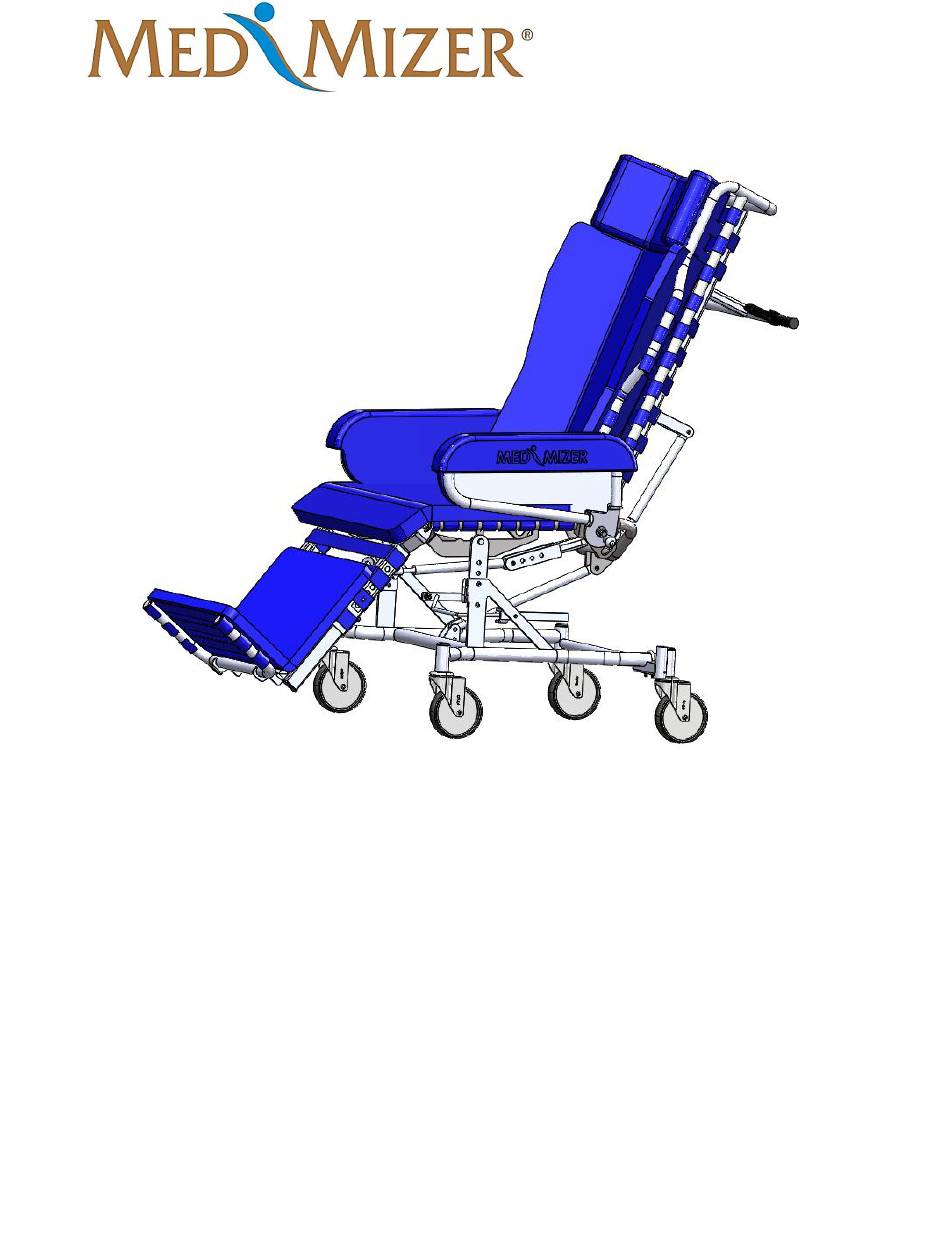

- Page 1 FlexTilt FT16-FT24 User Manual Revision 06 FlexTilt Model FT16, FT20, FT24 USER MANUAL For Parts or Technical Assistance - (877) 867-7365 MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 1 of 13...
-
Page 2: Table Of Contents
FlexTilt FT16-FT24 User Manual Revision 06 TABLE OF CONTENTS Overview Introduction Intended Use Safety Information Specifications Options and Accessories Preparation for Use Unpacking Operation Seat Tilt Recline Position Leg Elevation Foot Extension – Retraction Pivoting Side Rail Front Locking Casters Rear Directional Casters Adjustable Seat Height Backrest Adjustability... -
Page 3: Overview Introduction
FlexTilt FT16-FT24 User Manual Revision 06 Overview Introduction This manual provides instructions for use of the FlexTilt. Do not operate the chair without first reading and understanding the warnings and cautions provided herein. NOTICE: The information in this document is subject to change without notice. Intended Use The FlexTilt geriatric chair is intended to provide means for a single occupant to recline and sit, and to assist the occupant in moving between reclining, sitting and standing positions. - Page 4 Options and Accessories Safety CAUTION Use only chair accessories and chair replacement parts supplied or approved by Med-Mizer® for this chair. Third party accessories and replacement parts that are not approved by Med-Mizer® may result in personal injury or equipment damage.
-
Page 5: Specifications
FlexTilt FT16-FT24 User Manual Revision 06 Specifications FT16 FT20 FT24 Seat Width 16" 20” 24” Backrest Recline 34 Degrees 34 Degrees 28 Degrees Seat Tilt 27 Degrees 27 Degrees 25 Degrees Leg Raise 42 Degrees 42 Degrees 45 Degrees Backrest Adjustability/Seat Depth From Edge of Seat: 15.375”/16.0625”/17.125”/18”... -
Page 6: Recline Position
FlexTilt FT16-FT24 User Manual Revision 06 2. Back Recline - The back recline action on the chair is activated when you use the right lever on the back of the chair. Note: The leg rest elevates as the caregiver reclines the chair, the leg elevation can be adjusted once the caregiver has the chair in the desired recline position. -
Page 7: Foot Extension - Retraction
FlexTilt FT16-FT24 User Manual Revision 06 4. Foot Extension and Retraction – Push the buttons located on the lower foot rest to activate the foot extensions and retraction. Note : Retract foot extension prior to attempting patient egress from chair. Retract or extend lower foot section... -
Page 8: Front Locking Casters
FlexTilt FT16-FT24 User Manual Revision 06 6. Front Locking Casters – Casters located under the leg rest of the chair are total locking. When pedal is compressed the caster will no longer swivel nor will the caster turn. Front swivel total locking caster 7. -
Page 9: Adjustable Seat Height
FlexTilt FT16-FT24 User Manual Revision 06 8. Adjustable Seat Height – The seat height has three different heights that are available (19.25”, 18.25”, 17.25”). Adjusting the seat height means moving the adjustment brackets down or up as well as adjusting the cylinder to match the height. Note: (The chair will always be delivered in the highest position.) Adjustment Adjustment... -
Page 10: Backrest Adjustability
FlexTilt FT16-FT24 User Manual Revision 06 Cylinder in lowest position 9. Backrest Adjustability – The backrest adjustment has four different available seat of locater bracket depths. Each adjustment has an increment of .875”. The backrest and cylinder both need adjusted when choosing a seat depth. See images below. Note: (The chair will always be delivered with the seat depth in the maximum seat depth position.) Backrest and... -
Page 11: Maintenance
4. Inspect the casters for wear and tear. Preventative Maintenance Inspections Problem Resolution Inspect chair frame for cracks, tears or bending, Remove chair from service. Contact Med-Mizer® particularly at welds and joints. customer service. Check that screws, bolts, pins and other fasteners are Remove chair from service. -
Page 12: Service Parts List
FlexTilt FT16-FT24 User Manual Revision 06 Service Parts List PART # DESCRIPTION 5261 Shoulder Washer, Sleep Surface 5526 Bushing, Pivot ASRL 5527 Pin, ASRL Pivot Pull 5639 Steel Knob 6102 1/2-13 Jam Finishing Nut Zinc 6195 5" Swivel Caster Total Lock (LK524) 6283 1/2-13 Gr2 Nyl Thin Locknut, 5/16"... -
Page 13: Warranty
Med-Mizer, found to be defective. This warranty does not cover failure due to negligence, accident, abuse or installation not in accordance with the company’s instructions or failure to follow maintenance instructions.
