Summary of Contents for Med-Mizer AllCare

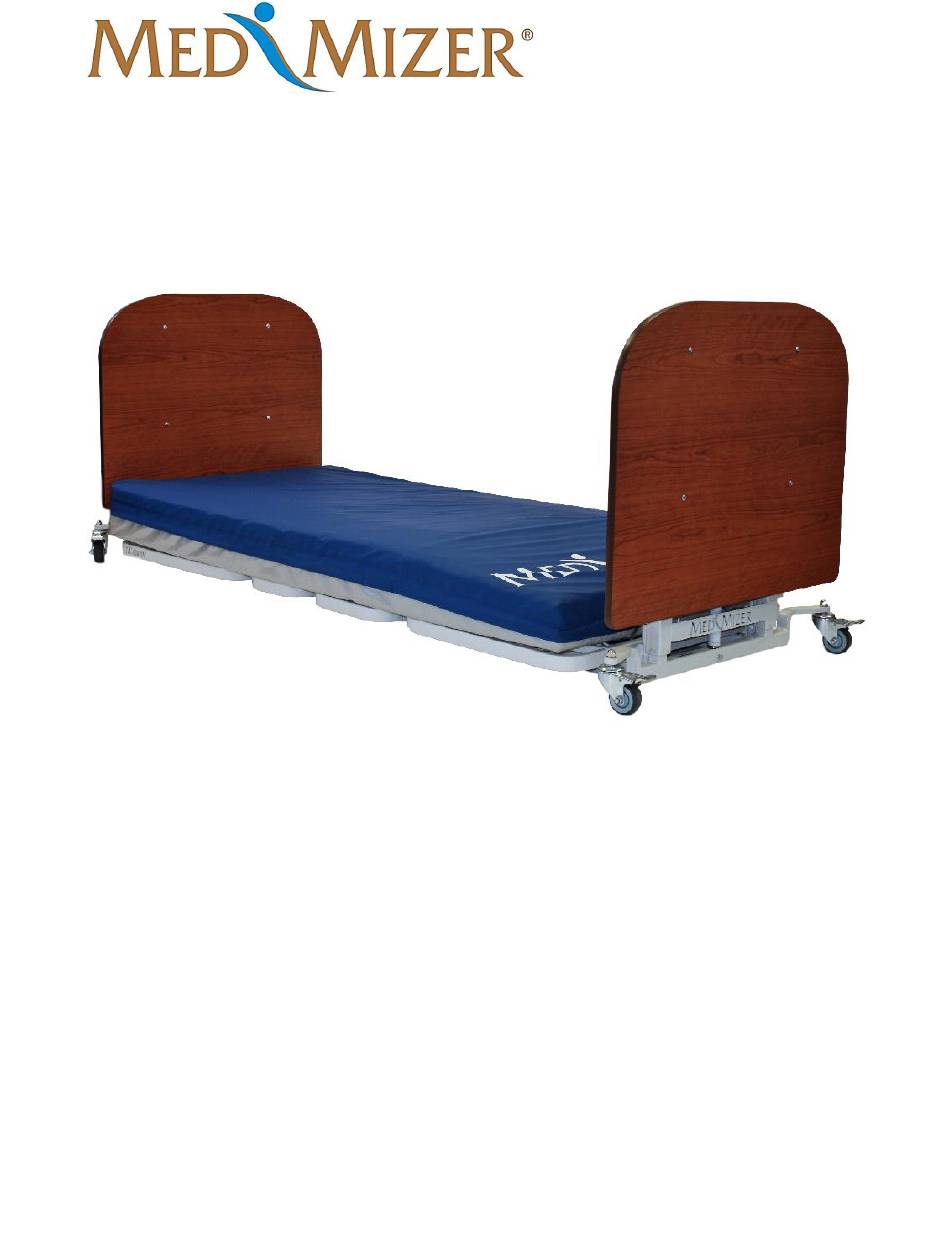

- Page 1 AllCare User Manual Revision 00 AllCare USER MANUAL For Parts or Technical Assistance - (877) 867-7365 MAN-AllCare REV00 AllCare USER MANUAL Page 1 of 18...
-
Page 2: Table Of Contents
AllCare User Manual Revision 00 TABLE OF CONTENTS Overview Introduction Intended Use Safety Information Specifications Options and Accessories Preparation for Use Unpacking Assembly Operation Control Options Bed Height Adjustment Head and Knee Adjustment Foot Elevation Mattress Stop Bed Transport Bed Deck Expansion & Retraction... -
Page 3: Overview

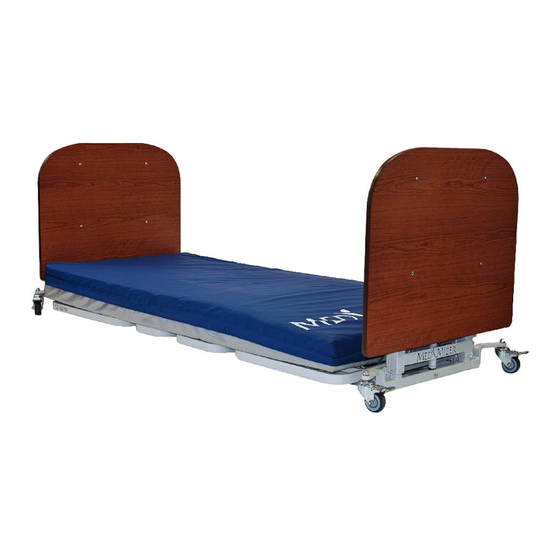

NOTICE: The information in this document is subject to change without notice. Intended Use The AllCare Bed is intended to provide means for a single occupant to recline and sit, and to assist the occupant in moving between reclining, sitting and standing positions. - Page 4 AllCare User Manual Revision 00 WARNING Close supervision by an adult who has read and understands this User Manual is required when the bed is used around children or others who have not or cannot read and/or understand this User Manual.
- Page 5 Options and Accessories Safety CAUTION Use only bed accessories and bed replacement parts supplied or approved by Med-Mizer® for this bed. Third party accessories and replacement parts that are not approved by Med-Mizer® may result in personal injury or equipment damage.
-
Page 6: Specifications
AllCare User Manual Revision 00 Cleaning Safety WARNING Do not spill or spray liquid on the bed. Excessive liquid on the bed can result in an electric shock hazard. In the event of a liquid spill or excessive liquid on the bed, unplug the bed immediately. -
Page 7: Preparation For Use
AllCare User Manual Revision 00 End Board Panels Headboard and Footboard Finish Options Custom Headboard and Footboards Available Preparation for Use Unpacking (If Shipped LTL/Commercial) Tools Required: Utility knife Side-cutting shears To unpack bed, footboard and headboard: 1. Use the utility knife to carefully cut the shrink-wrap film and remove it from the bed. - Page 8 AllCare User Manual Revision 00 1. Using side cutters, cut the tie straps on the top on the bed in shipping form. Cut tie straps Tie straps removed Bed in shipping from 2. View the side of the bed where the two sleep surfaces are bolted to the shipping bracket.
- Page 9 AllCare User Manual Revision 00 ” 3. Using the 5/8 wrench and socket, remove the bolts holding the sleep surface section from the shipping bracket. Do this one at a time and set them down on the floor facing down. NOTE: The bolts will be used for assembly, do not discard.
- Page 10 AllCare User Manual Revision 00 5. Line up the bosses and install the bolts that were used in the shipping form. Using a 5/8 wrench and socket, firmly tighten the nut onto the bolt. 6. Find the wires labeled “3” and “4” and plug them into the matching ports on the control box.
- Page 11 AllCare User Manual Revision 00 7. Flip the sleep surfaces back over, locate the head and foot labels on each section, and match them up to the correct assemblies. Then assemble them together using the bolts and nuts used to hold the bed together in the shipping form. Secure bolts tight with socket ratchet or power drill.
- Page 12 AllCare User Manual Revision 00 8. Using a side cutters remove the tie straps that attach the high/low motor extension cables to the frame. They will be on both ends of the bed. Motor Extension Cable 9. Plug the motor extension cable into the high low actuators. Then install the “C-Clips”...
- Page 13 AllCare User Manual Revision 00 10. Attach the headboard and footboard to the bed; firmly push down by sliding all four mounting brackets in the respective channel on the bed. The head and footboards are identical and are attached in the same manner.
-
Page 14: Operation
AllCare User Manual Revision 00 Operation Control Options Hand Pendant Control Bed Height Adjustment Head and Knee Adjustment The head-up arrow raises the head section, and the head-down arrow lowers the head section. The knee- up arrow raises the The up arrow raises the... -
Page 15: Foot Elevation
AllCare User Manual Revision 00 Foot Elevation To elevate the foot section, first raise the knee to the desired height. Manually lift the foot end of the foot section and rotate the foot support post upward. Lower the foot section placing the foot support on the bottom of the foot section. -
Page 16: Bed Deck Expansion & Retraction
AllCare User Manual Revision 00 Bed Deck Expansion or Retraction To expand deck push the two buttons simultaneously and pull the tube, release the button until the desired width is achieved. The first locking location is 39” the second is 42”. Repeat on all four sections and both sides of bed. -
Page 17: Maintenance
Check that screws, bolts, pins and other fasteners are in Remove bed from service. Tighten loose bolts and screws. place, secured and properly tightened. Contact Med-Mizer® customer service to order missing or damaged fasteners. Inspect actuators for excessive wear and misalignment. -
Page 18: Service Part List
Med-Mizer, found to be defective. This warranty does not cover failure due to negligence, accident, abuse or installation not in accordance with the company’s instructions or failure to follow maintenance instructions.
