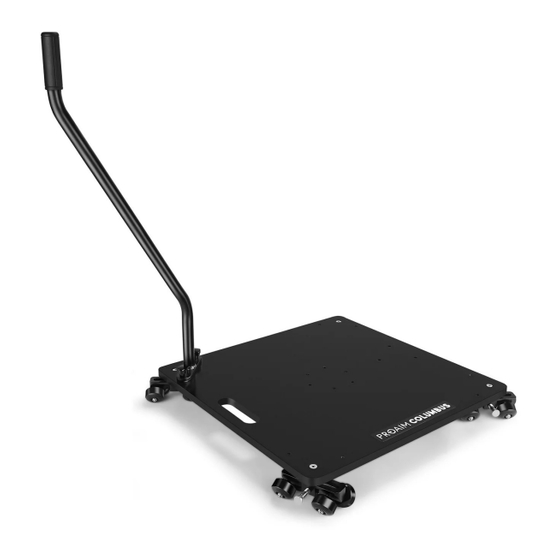

Columbus Video Camera Platform Dolly
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Columbus Platform Dolly
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
A s s e m b l y M a n u a l
All rights reserved.
statutes or in writing by the Publisher.
(DL-CLBS-01)
Push Bar Handel
T-Type Allen Key
(Size: 6mm)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PROAIM CINEMA DL-CLBS-01
Summary of Contents for PROAIM CINEMA DL-CLBS-01
- Page 1 Columbus Video Camera Platform Dolly (DL-CLBS-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Columbus Dolly Setup Place the Columbus Dolly on the Velvet Steel Track (Not Included), as shown in the image. Now place the Columbus Dolly onto the Velvet Steel Track (Not Included). Make sure all wheels are aligned correctly on the track and dolly runs smoothly.
- Page 3 Assembling Euro Adapter Plate Place the Adapter Plate by matching it (Not Included) with the center thread hole of the Dolly, and then insert the bolts. After inserting the bolts in the Euro Adapter Plate (Not Included), tighten the bolts with the help of the Allen Key.
- Page 4 Assembling 75mm Fluid Head Remove the knob of 75mm Bowl Fluid Head (Not Included) and mount it onto the Bowl Riser Adapter (Not Included). Then, properly tighten the knob of the Fluid Head (Not Included) from bottom. Pull &...
- Page 5 After properly mounting the Cranked Bazooka (Not Included) on the Euro Adapter Plate (Not Included), secure the Bazooka with the ratchet knob by tightening it. Assembling Offset Euro (100mm Bowl Adapter) Loosen the ratchet knob of the offset (100mm Bowl Adapter) (Not Included) mount...
- Page 6 Properly lock the assembly with the help of the provided locking brake of the Turnstile (Not Included). Assembling of Seat arm Loosen knob seat (Not Included), and then place it on the baby pin of the Turnstile (Not Included).
- Page 7 YOUR PROAIM COLUMBUS VIDEO CAMERA PLATFORM DOLLY ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
