PROAIM Atlas V2 Assembly Manual

Video production camera cart

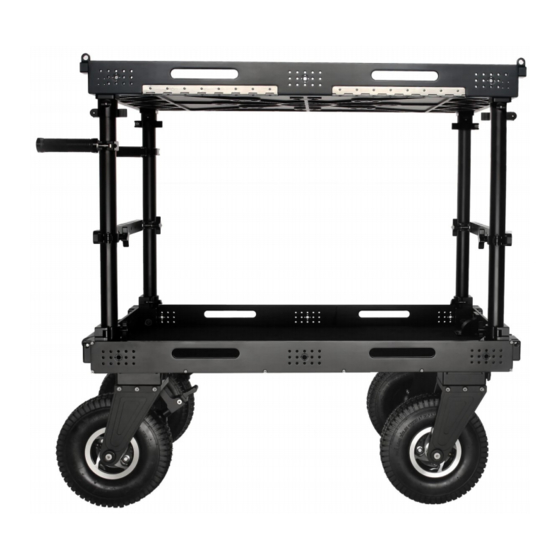

Atlas V2 Video Production Camera Cart (ATLS-V2)

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

4 x Pneumatic

Tires

4 x Supporting

rods

Upper shelf

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

A s s e m b l y M a n u a l

Available Sizes:38",48"

statutes or in writing by the Publisher.

2 x crossbars

2 x Handles

Lower shelf

Table of Contents

Need help?

Do you have a question about the Atlas V2 and is the answer not in the manual?

Page 1 Atlas V2 Video Production Camera Cart (ATLS-V2) A s s e m b l y M a n u a l Available Sizes:38",48" What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Atlas Cart Setup  Open all the 4 locks of Trolley to take out all the parts, as shown in image. Attaching Pneumatic Tires  Slide the wheels on Dovetail bracket mounted at the base of the lower Shelf of Cart and secure the tires with locking knob.
Page 3  There is a provision to unfold the lip by releasing the inner locking pin. YOUR PROAIM ATLAS V2 VIDEO PRODUCTION CAMERA CART ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
