User Manual

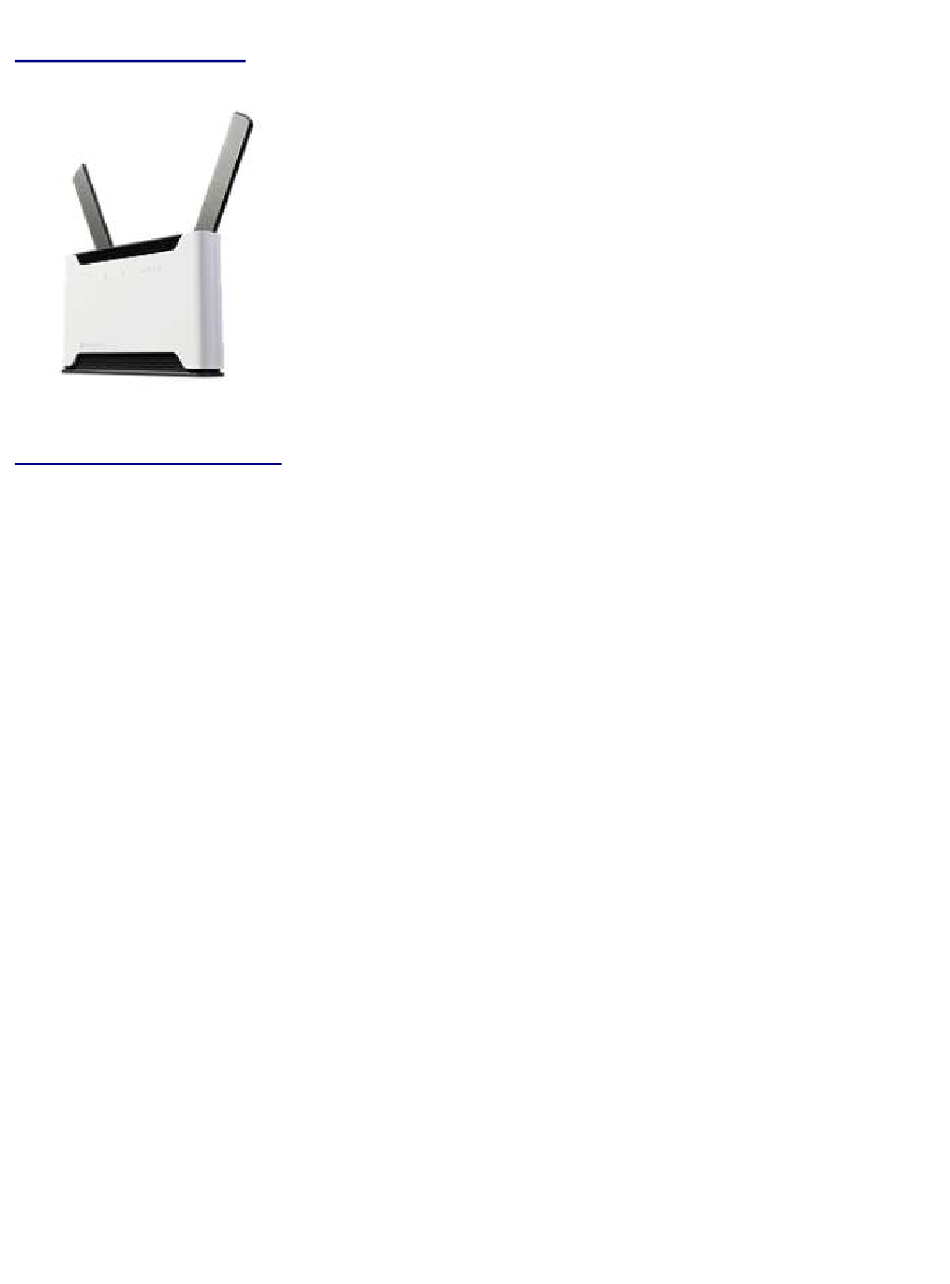

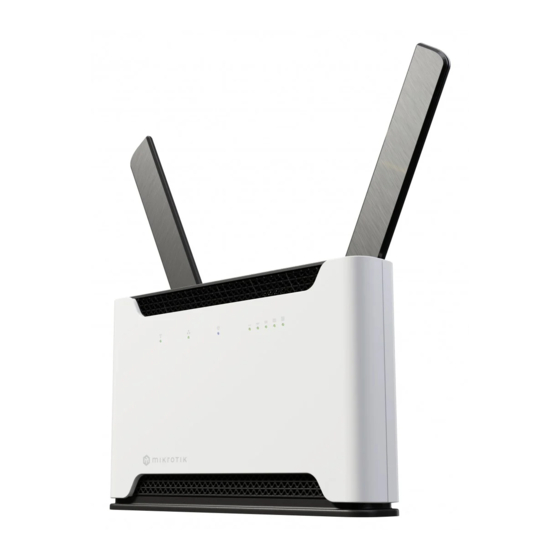

Chateau LTE18 ax
(S53UG+5HaxD2HaxD-TC&EG18-EA)
Safety Warnings
Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be
familiar with standard practices for preventing accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
Failure to use the correct hardware or to follow the correct procedures could result in a hazardous
situation for people and damage to the system.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or
hot environments.
Use only the power supply and accessories approved by the manufacturer, which can be found in the
original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device.
Please use this product with care and operate at your own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging
the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal
frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS)
requirements. All Mikrotik radio devices must be professionally installed.
Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and
European Union radiation exposure limits set forth for an uncontrolled environment. This MikroTik
device should be installed and operated no closer than 20 centimeters from your body, occupational
user, or the general public.
Advertisement
Table of Contents
Related Manuals for MikroTik Chateau LTE18 ax
Summary of Contents for MikroTik Chateau LTE18 ax
- Page 1 Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed. Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an uncontrolled environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the general public.
-
Page 2: Quick Start
Quickstart Please follow these quick steps to set up your device: Connect external antennas to the SMA connector (The antennas are provided in the package, see "Antenna usage"); Insert a micro SIM card into the slot located under the device, the SIM card is not provided with the package;... - Page 3 Insert the SIM card and power it on the device. Scan the QR code with your smartphone and choose your preferred OS. Connect to the wireless network. SSID starts with MikroTik and has the last digits of the device's MAC address.
-
Page 4: Expansion Slots And Ports
Click Connect to establish a connection to your device through a wireless network. Choose Quick setup and the application will guide you through all basic configuration settings in a couple of easy steps. An advanced menu is available to fully configure all necessary settings. Expansion slots and ports 1. - Page 5 CPU architecture ARM 64bit. Size of RAM 1 GB. RAM type DDR3L. Storage 128 MB, NAND. A number of 1G Ethernet ports 4. A number of 2.5G Ethernet ports 1. Micro SIM slots 1. ...
-
Page 6: Mode Button
Powering A number of DC inputs 1. DC jack input Voltage 12-28 V. Power adapter nominal voltage 24 V. Power adapter nominal current 1.2 A. Max power consumption without attachments 16 W. Max power consumption 19 W. Configuration We recommend checking for updates frequently to receive the latest updates for your RouterOS software to ensure the best performance and stability. - Page 7 Front LED status 1. Wireless network activity. 2. Ethernet port activity. 3. System LED. 4. Signal strength. Cellular connection technology based on the System LED color: Red: GSM Yellow: 3G Blue: LTE Green: 5G NSA Violet: 5G SA When LTE is not connected to the network, the system LED will blink red to indicate that there is some issue with the LTE connection.
-
Page 8: Antenna Usage
Keep holding for 5 more seconds, LED turns solid, release now to turn on CAP mode. The device will now look for a CAPsMAN server (total of 10 seconds). Or Keep holding the button for 5 more seconds until the LED turns off, then release it to make the RouterBOARD look for Netinstall servers (total 15 seconds). - Page 9 Hereby, Mikrotīkls SIA declares that the radio equipment type S53UG+5HaxD2HaxD- TC&EG18-EA is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://mikrotik.com/products Por la presente, Mikrotīkls SIA declara que el tipo de equipo radioeléctrico S53UG+5HaxD2HaxD-TC&EG18-EA es conforme con la Directiva 2014/53/UE.
- Page 10 Hér með lýsir Mikrotīkls SIA því yfir að S53UG+5HaxD2HaxD-TC&EG18-EA er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 2014/53/EU.Fullur texti ESB samræmisyfirlýsingar er að finna á eftirfarandi veffangi: https://mikrotik.com/products Aš, Mikrotīkls SIA, patvirtinu, kad radijo įrenginių tipas S53UG+5HaxD2HaxD-TC&EG18- EA atitinka Direktyvą...
- Page 11 Prin prezenta, Mikrotīkls SIA declară că tipul de echipamente radio S53UG+5HaxD2HaxD- TC&EG18-EA este în conformitate cu Directiva 2014/53/UE. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă internet: https://mikrotik.com/products Mikrotīkls SIA týmto vyhlasuje, že rádiové zariadenie typu S53UG+5HaxD2HaxD- TC&EG18-EA je v súlade so smernicou 2014/53/EÚ.
- Page 12 20dBm 5150-5250 MHz / 23 WLAN 5250-5350 MHz / 20 WLAN 5470-5725 MHz / 27 WLAN Operating Frequency / Maximum output power 5725-5875 MHz / 14 Betriebsfrequenz / maximale Ausgangsleistung WLAN Fréquence de fonctionnement / puissance de sortie maximale 2100 MHz / 24dBm ± WCDMA Band 2.7 dB Frequenza operativa / massima potenza di uscita...
- Page 13 TX tramite le normative ETSI. Per informazioni più dettagliate consultare la Dichiarazione di conformità sopra / Este dispositivo MikroTik cumple con los límites máximos de potencia TX a través de las normas ETSI. Para obtener información más detallada, consulte la Declaración de conformidad anterior / Это...
- Page 14 (EN) Technical Specifications / (DE) Technische Spezifikationen / (FR) Spécifications techniques /(IT) Specifiche tecniche / (ES) Especificaciones técnicas / (RU) Технические характеристики: (EN) DC Adapter Output Specification (EN) Product Power (DE) Input Options (EN) IP class Ausgangsspezifikatione (DE) Produkt of the n des Stromquellen enclosure...
