MikroTik LHG 60G Series Quick Manual

EN - English - Quick Guide:
This device needs to be upgraded to RouterOS v7.2.1 or the latest stable version, to ensure compliance with local authority regulations!
It is the end users' responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be installed according to instructions.

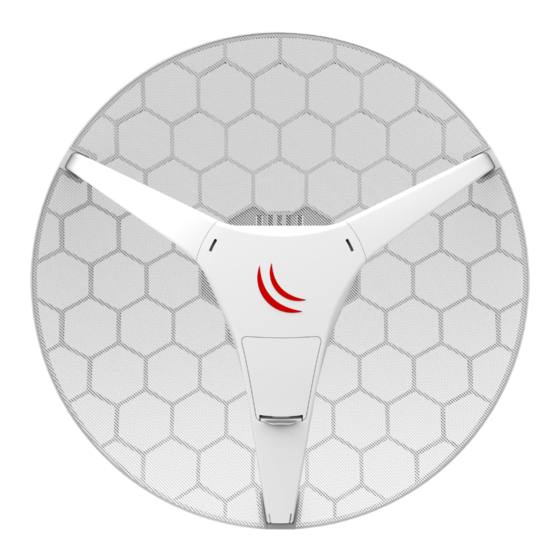

This "LHG 60G" series Quick Guide covers models: RBLHGG-60ad (LHG 60G), RBLHGG-60adkit (Wireless Wire Dish).
This is a wireless network device. You can find the product model name on the case label (ID).
Please visit the user manual page on
The most important technical specifications for this product can be found on the last page of this Quick Guide.
Technical specifications, brochures, and more info about products at
Configuration manual for software in your language with additional information can be found
If you need help with configuration, please seek a
First steps:
Assemble unit;
Open the Ethernet door to connect an Ethernet cable to the Ethernet port, connect the other end of the Ethernet cable to the included PoE injector;
Plug the PoE injector into your network switch;
Plug the included power supply into the PoE injector to start up the device;
Mount the devices on the mast or pole;
Align both units;
Download WinBox configuration tool
Default IP for the master unit: 192.168.88.2, slave unit: 192.168.88.3, user name:
device cover;
In case the IP connection is not available, please use the Neighbors tab and connect through MAC address;
For LHG 60G models, default IP: 192.168.88.1, and there is no password;
Once connected configure the device, so it has an active Internet connection
Upgrade the RouterOS software to the latest version
Choose your country, to apply country regulation settings.
Safety Information:
Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the
Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device.
This product is intended to be mounted outdoors on a pole but can also be installed indoors. Please read the mounting instructions carefully before beginning
installation. Failure to use the correct hardware and configuration or to follow the correct procedures could result in a hazardous situation for people and
damage to the system.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own
risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet.
This is a Class A product. In a domestic environment, this product might cause radio interference in which case the user might be required to take adequate
measures!
Exposure to Radio Frequency Radiation:
uncontrolled environment. This MikroTik device should be installed and operated no closer than 95 centimeters from your body, occupational user, or the general
public.
Manufacturer: Mikrotikls SIA, Brivibas gatve 214i Riga, Latvia, LV1039.
BG - Български. Бързо ръководство:
Това устройство трябва да бъде надстроено до RouterOS v7.2.1 или най-новата стабилна версия, за да се гарантира спазването на местните
наредби!
Крайните потребители са отговорни да спазват местните разпоредби, включително работа в рамките на законни честотни канали, изходна
мощност, изисквания за окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства MikroTik трябва да бъдат
инсталирани съгласно инструкциите.
Тази серия "LHG 60G" Бързо ръководство обхваща модели: RBLHGG-60ad (LHG 60G), RBLHGG-60adkit (Wireless Wire Dish).
Това е устройство за безжична мрежа. Можете да намерите името на модела на продукта на етикета на регистъра (ID).
Моля, посетете страницата с ръководството за потребителя на
Или сканирайте QR кода с мобилния си телефон.
Най-важните технически спецификации за този продукт могат да бъдат намерени на последната страница на това Кратко ръководство.
Технически спецификации, брошури и повече информация за продуктите
Ръководство за конфигуриране на софтуер на вашия език с допълнителна информация можете да намерите на
Ако имате нужда от помощ при конфигуриране, моля, потърсете консултант
https://mt.lv/um for the full up-to-date user manual. Or scan the QR code with your mobile phone.
consultant https://mikrotik.com/consultants
https://mt.lv/winbox ;
https://mt.lv/upgrade
This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an
https://mikrotik.com/products
at https://mt.lv/help
admin and password is printed on the label, that can be found inside the
https://mt.lv/configuration
;
https://mt.lv/um-bg за пълното актуализирано ръководство за употреба.
на https://mikrotik.com/products
https://mikrotik.com/consultants
;
https://mt.lv/help-bg
