- Page 1 AXIS Camera Station S2108 Appliance User manual...
-
Page 2: About Your Device
AXIS Camera Station video management software including licenses plus all necessary system software. AXIS Camera Station offers an intuitive user interface that allows users to take full advantage of Axis wide range of video surveillance cameras and other IP products. With the operating system stored on a solid-state drive (SSD) and 5-year hardware warranty, the appliance provides a reliable surveillance solution. -
Page 3: Setup Examples
The computer can still get internet connectivity through the server uplink port. As soon as the devices are plugged into the powered PoE ports, they will take the link-local address and can be found by AXIS... - Page 4 This will make all connected devices to have an IP address from the DHCP server’s range. If internet connectivity is available on that network, it will be available to the AXIS S2108 Appliance too. Otherwise, the computer can still get internet connectivity independently through the server uplink port.
- Page 5 AXIS Camera Station S2108 Appliance Setup examples...
-
Page 6: Get Started
3. Initial Axis recorder setup: After the initial Windows setup, AXIS Recorder Toolbox is opened and you are guided through a few steps to set up basic and necessary settings, for example, computer name, date and time, and network. See Initial Axis recorder setup on page 15. -
Page 7: Install Your Device
Prepare additional accessories used for installation: monitor, mouse, keyboard and network cable. • Understand the usage of different user accounts. The following table lists the user accounts that can be used for installation, configuration and operation of your Axis system. User account Description... - Page 8 AXIS Camera Station S2108 Appliance Install your device...
- Page 9 AXIS Camera Station S2108 Appliance Install your device...
- Page 10 AXIS Camera Station S2108 Appliance Install your device...
- Page 11 AXIS Camera Station S2108 Appliance Install your device...
- Page 12 AXIS Camera Station S2108 Appliance Install your device...
- Page 13 AXIS Camera Station S2108 Appliance Install your device...
- Page 14 AXIS Camera Station S2108 Appliance Install your device...
-
Page 15: Configure Your Device
Log in to AXIS Camera Station server Using the AXIS Camera Station client, you can connect to multiple servers or a single server installed on the local computer or somewhere else on the network. You can connect to AXIS Camera Station servers in different ways: Last used servers - Connect to the servers used in the previous session. - Page 16 Start AXIS Camera Station Double-click the AXIS Camera Station client icon to start the client. When you start the client for the first time, it attempts to log in to the AXIS Camera Station server installed on the same computer as the client.
-
Page 17: Export Recordings
You can connect to multiple AXIS Camera Station servers in different ways. Add devices The Add devices page opens the first time you start AXIS Camera Station. AXIS Camera Station searches the network for connected devices and shows a list of devices found. -
Page 18: Network Configuration
Network configuration When AXIS Camera Station client, AXIS Camera Station server, and the connected network devices are installed on different networks, you might need to configure proxy or firewall settings before using AXIS Camera Station. Client proxy settings When the client and the server are separated by a proxy server, configure the client proxy settings. -
Page 19: Server Port Configuration
When the client and the server are separated by a NAT, firewall or similar, configure the NAT or firewall to ensure that the HTTP port, TCP port, and streaming port specified in AXIS Camera Station Service Control are allowed to pass through the firewall and/or NAT. - Page 20 1. In the AXIS Camera Station client, export the system file. 1.1 Go to Configuration > Licenses > Management. 1.2 If AXIS Camera Station is online, turn off Manage licenses online and click Export system file. 1.3 If AXIS Camera Station is offline, click Export system file.
- Page 21 AXIS Camera Station S2108 Appliance Manage Windows® user accounts Manage Windows® user accounts Create a user account To help keep your personal data and information more secure, we recommend that you add a password for each local account. Important Once you create a password for a local account, don't forget it. There’s no way to recover a lost password for local accounts.
- Page 22 AXIS Camera Station S2108 Appliance Manage Windows® user accounts 1. Go to Settings > Accounts > Other people. 2. Go to the account you want to remove and click Remove. Change a user account's password 1. Log in with an administrator account.
- Page 23 Manage AXIS Camera Station user accounts Manage AXIS Camera Station user accounts Configure user permissions Go to Configuration > Security > User permissions to view a list of the users and groups that have been added to AXIS Camera Station. Note Administrators of the computer on which the AXIS Camera Station server is installed are automatically given administrator privileges to AXIS Camera Station.
- Page 24 4. Select Users or Groups to search for only users or groups. 5. The list of users or groups is displayed. Users and groups that have already been added to AXIS Camera Station are not listed. If there are too many users or groups, the search result is not displayed. Use the Type to search field to refine the search and find a specific user or group.
- Page 25 The following access privileges are available for users or groups with the Operator or Viewer role. You can select multiple views and set the access privileges. • Access: Allow access to the views in AXIS Camera Station. • Edit: Allow to edit the views in AXIS Camera Station.
-
Page 26: Manage Your Device
AXIS Camera Station S2108 Appliance Manage your device Manage your device Update Windows® Windows® 10 periodically checks for updates. When an update is available, your device automatically downloads the update but you've to install it manually. Note Recording will be interrupted during a scheduled system restart. -
Page 27: Power Management
AXIS Camera Station S2108 Appliance Manage your device 3.1 Enabled 3.2 Click OK. Power management The switch has a total power budget of 105 W. This is the maximum power output to all connected devices. In most cases, the connected devices consume less power than requested. To optimize the power usage, the PoE controller allows connected devices to request up to 125 W and limits the actual power usage to 105 W at the same time. -
Page 28: Product Overview

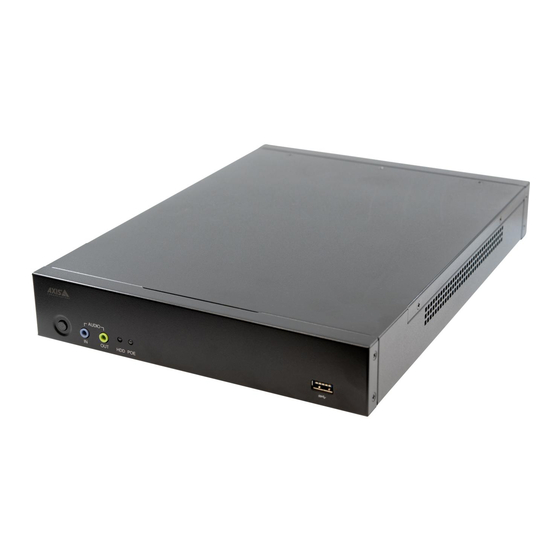

AXIS Camera Station S2108 Appliance Product overview Product overview Front and rear sides Power button/power LED Audio in Audio out Hard drive activity LED Status LED of PoE ports USB 3.0 port Power connector PoE ports RJ45 switch uplink port... - Page 29 AXIS Camera Station S2108 Appliance Product overview PoE overload Over PoE budget Rear LEDs Network speed and activity Color Indication Right LED Amber 10/100 Mbit/s Green 1000 Mbit/s Left LED Blinks green Network activity This is only valid for Switch uplink and Server uplink.
-
Page 30: Troubleshooting
6. When you see the AXIS splash screen, press F12. 7. Click UEFI: USB Drive. 8. Navigate to your USB drive and press ENTER. The system boots into the AXIS Recovery Kit. 9. Click Reinstall Operating System. The recovery takes roughly 10 to 15 min to complete. You find detailed instructions in the download for the recovery kit. -
Page 31: Need More Help
AXIS Camera Station S2108 Appliance Need more help? Need more help? Useful links • AXIS Camera Station user manual • Configure Axis Secure Remote Access • What to include in an Antivirus allowlist for AXIS Camera Station Contact support Contact support at axis.com/support. - Page 32 User manual Ver. M5.2 AXIS Camera Station S2108 Appliance Date: February 2023 © Axis Communications AB, 2022 - 2023 Part no. T10181903...
