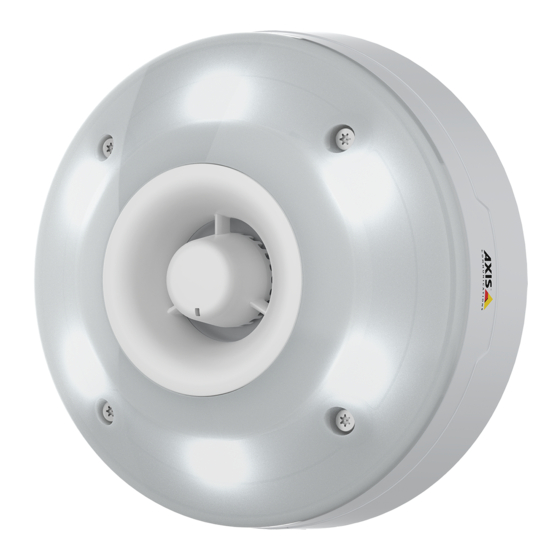

AXIS D4100-E Network Strobe Siren
User manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the D4100-E and is the answer not in the manual?

Questions and answers

Related Manuals for Axis D4100-E

Summary of Contents for Axis D4100-E

  • Page 1 AXIS D4100-E Network Strobe Siren User manual...

  • Page 2: Table Of Contents

    Check the current AXIS OS version ........

  • Page 3: Installation

    AXIS D4100-E Network Strobe Siren Installation Installation To watch this video, go to the web version of this document. help.axis.com/?&piaId=62021&section=install...

  • Page 4: Get Started

    Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.
  • Page 5 AXIS D4100-E Network Strobe Siren Get started • Use a password with at least 8 characters, preferably created by a password generator. • Don’t expose the password. • Change the password at a recurring interval, at least once a year.

  • Page 6: Configure Your Device

    AXIS D4100-E Network Strobe Siren Configure your device Configure your device Turn off maintenance mode after installing the siren CAUTION To protect the installer from hearing damage and from dazzling by bright light, it’s recommended to have maintenance mode on when installing the device.

  • Page 7: Set Up Direct Sip (P2P)

    AXIS D4100-E Network Strobe Siren Configure your device Set up direct SIP (P2P) Use peer-to-peer when the communication is between a few user agents within the same IP network and there is no need for extra features that a PBX-server could provide. To better understand how P2P works, see .

  • Page 8: Set Up Rules For Events

    AXIS D4100-E Network Strobe Siren Configure your device Domain Password Authentication ID Caller ID Registrar RTP start port 2. To add a new account, go to System > SIP > SIP accounts and click + Account. 3. Enter the details you received from your PBX provider.
  • Page 9 AXIS D4100-E Network Strobe Siren Configure your device 5. In the list of actions, select Run light and siren profile while the rule is active. 6. Select the profile you want to start. 7. Click Save. Start a profile through SIP This example explains how to trigger an alarm through SIP.
  • Page 10 AXIS D4100-E Network Strobe Siren Configure your device 10. Click Save. Create a rule to stop a profile: 1. Go to System > Events and add a rule. 2. Type a name for the rule. 3. In the list of conditions, select Call > State change.
  • Page 11 Create a profile in the strobe siren. • Set up AXIS Motion Guard in the camera and create a profile called “Camera profile”. Create two recipients in the camera: 1. In the camera’s device interface, go to System > Events > Recipients and add a recipient.
  • Page 12 Create a profile in the strobe siren called: “Strobe siren profile”. • Set up AXIS Motion Guard in the camera and create a profile called: “Camera profile”. • Make sure to use AXIS Device Assistant with firmware version 10.8.0 or later.
  • Page 13 Activate strobe siren over MQTT when camera detects motion This example explains how connect a camera to the strobe siren over MQTT, and activate a profile in the strobe siren whenever the application AXIS Motion Guard, installed in the camera, detects motion. Before you start: •...
  • Page 14 Set up an MQTT broker and get the broker’s IP address, username and password. • Set up AXIS Motion Guard in the camera. Set up the MQTT client in the camera: 1. In the camera’s device interface, go to System > MQTT > MQTT client > Broker and enter the following information:...
  • Page 15 AXIS D4100-E Network Strobe Siren Configure your device Port: The port number used by the broker Username and Password 2. Click Save and Connect. 3. Go to MQTT subscriptions and add a subscription. Enter the following information: Subscription filter: Motion...

  • Page 16: Learn More

    The Session Initiation Protocol (SIP) is used to set up, maintain and terminate VoIP calls. You can make calls between two or more parties, called SIP user agents. To make a SIP call you can use, for example, SIP phones, softphones or SIP-enabled Axis devices.

  • Page 17: The Web Interface

    Device info Shows the device information, including AXIS OS version and serial number. Upgrade AXIS OS: Upgrade the software on your device. Takes you to the Maintenance page where you can do the upgrade. Connected clients Shows the number of connections and connected clients.

  • Page 18: Profiles

    AXIS D4100-E Network Strobe Siren The web interface Shows the different light activities that run on the device. You can have up to 10 activities in the light status list at the same time. When two or more activities run at the same time, the activity with the highest priority shows the light status. That row will be highlighted in green in the status list.

  • Page 19: Apps

    Choose to Edit, Copy, Export, or Delete the profile. Apps Add app: Install a new app.Find more apps: Find more apps to install. You will be taken to an overview page of Axis apps.Allow unsigned apps : Turn on to allow installation of unsigned apps.Allow root-privileged apps : Turn on to allow apps with root privileges full access to the device.
  • Page 20 AXIS D4100-E Network Strobe Siren The web interface Synchronization: Select an option for the device’s date and time synchronization. • Automatic date and time (manual NTS KE servers): Synchronize with the secure NTP key establishment servers connected to the DHCP server.
  • Page 21 AXIS D4100-E Network Strobe Siren The web interface Hostname Assign hostname automatically: Select to let the network router assign a hostname to the device automatically.Hostname: Enter the hostname manually to use as an alternative way of accessing the device. The server report and system log use the hostname.
  • Page 22 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 23 Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).To allow the device to access a network protected through certificates, you must install a signed client certificate on the device.Authentication method: Select an EAP type used for...
  • Page 24 To install test software or other custom software from Axis on the device, you need a custom signed AXIS OS certificate. The certificate verifies that the software is approved by both the device owner and Axis. The software can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 25 AXIS D4100-E Network Strobe Siren The web interface Accounts Accounts Add account: Click to add a new account. You can add up to 100 accounts.Account: Enter a unique account name.New password: Enter a password for the account. Passwords must be 1 to 64 characters long. Only ASCII printable characters (code 32 to 126) are allowed in the password, for example, letters, numbers, punctuation, and some symbols.Repeat password: Enter...
  • Page 26 AXIS D4100-E Network Strobe Siren The web interface Client ID: Enter the OpenID username.Outgoing Proxy: Enter the proxy address for the OpenID connection to use a proxy server.Admin claim: Enter a value for the admin role.Provider URL: Enter the web link for the API endpoint authentication. Format should be https://[insert URL]/.well-known/openid-configurationOperator claim: Enter a value for the operator role.Require claim:...
  • Page 27 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 28 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device software can simplify integration of data and events produced in the device to systems which are not video management software (VMS).Set up the device as an MQTT client.
  • Page 29 AXIS D4100-E Network Strobe Siren The web interface Connect: Turn on or off the MQTT client.Status: Shows the current status of the MQTT client.BrokerHost: Enter the hostname or IP address of the MQTT server.Protocol: Select which protocol to use.Port: Enter the port number.
  • Page 30 AXIS D4100-E Network Strobe Siren The web interface Note Connect to an MQTT broker before you add MQTT overlay modifiers. Add overlay modifier: Click to add a new overlay modifier.Topic filter: Add the MQTT topic that contains the data you want to show in the overlay.Data field: Specify the key for the message payload that you want to show in the overlay, assuming the...
  • Page 31 AXIS D4100-E Network Strobe Siren The web interface Note The selected codecs must match the call recipient codec, since the recipient codec is decisive when a call is made. • Audio direction: Select allowed audio directions. Additional • UDP-to-TCP switching: Select to allow calls to switch transport protocols from UDP (User Datagram Protocol) to TCP (Transmission Control Protocol) temporarily.
  • Page 32 AXIS D4100-E Network Strobe Siren The web interface • Verify server certificate (only with transport mode TLS): Check to verify the server certificate. • Secondary SIP server: Turn on if you want the device to try to register on a secondary SIP server if registration on the primary SIP server fails.
  • Page 33 AXIS D4100-E Network Strobe Siren The web interface PortName: Edit the text to rename the port.Direction: indicates that the port is an input port. indicates that it’s an output port. If the port is configurable, you can click the icons to change between input and output.Normal state: Click open circuit, and for closed circuit.Current state: Shows the current state of the port.

  • Page 34: Maintenance

    AXIS OS upgrade: Upgrade to a new AXIS OS version. New releases can contain improved functionality, bug fixes, and completely new features. We recommend you to always use the latest AXIS OS release. To download the latest release, go to axis.com/support.

  • Page 35: Specifications

    AXIS D4100-E Network Strobe Siren Specifications Specifications Product overview Network connector PoE Status LED indicator I/O connector Control button White LEDs RGBA (red, blue, green, amber) LEDs Siren Light direction A Light direction B 10 Light direction C 11 Light direction D...

  • Page 36: Connectors

    AXIS D4100-E Network Strobe Siren Specifications Connectors Network connector RJ45 Ethernet connector with Power over Ethernet (PoE). I/O connector Digital input - For connecting devices that can toggle between an open and closed circuit, for example PIR sensors, door/window contacts, and glass break detectors.

  • Page 37: Light Pattern Names

    AXIS D4100-E Network Strobe Siren Specifications Light pattern names Steady Steady white + flash color Alternate Pulse Escalate 3 steps Blink 3x Blink 4x Blink 3x fade Blink 4x fade Flash 1x Flash 3x Flash 1x white + steady color...
  • Page 38 Notification: Done Notification: Entry Notification: Failed Notification: Hurry Notification: Message Notification: Next Notification: Open Siren: Alternate Siren: Bouncy Siren: Evac Siren: Falling pitch Siren: Home soft Wall mounted at a distance of 1 meter on axis at volume setting 5.

  • Page 39: Clean Your Device

    AXIS D4100-E Network Strobe Siren Clean your device Clean your device You can clean your device with lukewarm water and mild, nonabrasive soap. NOTICE TICE TICE • Harsh chemicals can damage the device. Don’t use chemicals such as window cleaner or acetone to clean your device.

  • Page 40: Troubleshooting

    Using AXIS OS from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 41: Technical Issues, Clues, And Solutions

    Note When you upgrade the device with the latest AXIS OS version in the active track, the product receives the latest functionality available. Always read the upgrade instructions and release notes available with each new release before you upgrade. To find the latest AXIS OS version and the release notes, go to axis.com/support/device-software.

  • Page 42: Performance Considerations

    • AXIS Camera Station Edge: free of charge, ideal for small systems with basic surveillance needs. • AXIS Camera Station 5: 30-day trial version free of charge, ideal for small to mid-size systems. • AXIS Camera Station Pro: 90-day trial version free of charge, ideal for small to mid-size systems.
  • Page 43 User manual Ver. M11.2 AXIS D4100-E Network Strobe Siren Date: November 2024 © Axis Communications AB, 2022 - 2024 Part no. T10166226...
