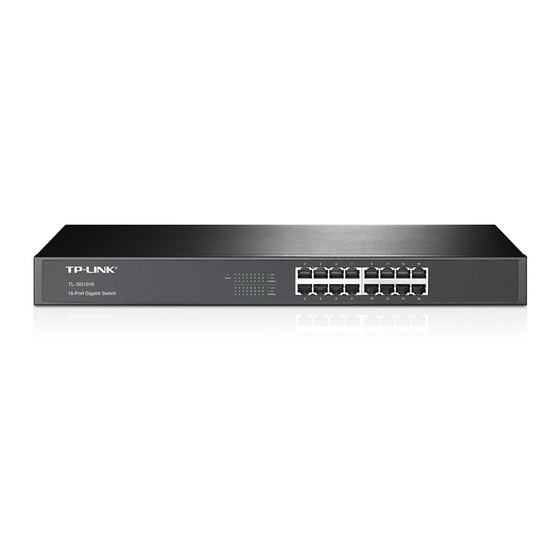

TP-Link TL-SG1016 User Manual
16/24-port gigabit ethernet switch
Hide thumbs
Also See for TL-SG1016:
- Installation manual (28 pages) ,
- User manual (15 pages) ,
- Installation manual (32 pages)
Subscribe to Our Youtube Channel
Related Manuals for TP-Link TL-SG1016
Summary of Contents for TP-Link TL-SG1016
-
Page 1: User Guide
User Guide TL-SG1016/ TL-SG1024 16/24-port Gigabit Ethernet Switch Rev:2.0.0 7106500823... -
Page 2: Copyright And Trademarks
COPYRIGHT & TRADEMARKS Specifications subject change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. -
Page 3: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. -
Page 4: Ce Mark Warning
Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor. Safety Notices Do not use this product near water. Avoid using this product during an electrical storm. Do not place heavy objects on the switch. -
Page 5: Chapter 1 Introduction Of The Product
Chapter 1 Introduction of the Product This chapter describes the features of the TL-SG1016/ TL-SG1024 16/24-port Gigabit Ethernet Switch. 1.1 Overview of the Product The TL-SG1016/TL-SG1024 16/24-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to boost your old network to 1000Mbps. -
Page 6: Chapter 2 Installation
1. The electrical outlet shall be installed near the device and shall be easily accessible. 2. Make sure there is free space for radiating heat and air. 3. Make sure not to place anything too heavy on top of the switch. -
Page 7: Mounting The Switch In A Rack
2.2 Mounting the Switch in a Rack The dimension of TL-SG1016/TL-SG1024 is designed according to the standard 19 rack-mountable steel case of Electronic Industries Association. Turn off all the equipment connected to the Switch before mounting it in the rack, then rivet the two "L" brackets onto each side of the Switch, fasten it with screws in the rack. -
Page 8: Chapter 3 Identifying External Components
Chapter 3 Identifying External Components This Chapter describes the front panel, rear panel and LED indicators of the Switch. TL-SG1016 and TL-SG1024 just differ in the number of LED indicators and ports and all figures in this guide are of TL-SG1024. -
Page 9: Led Indicators
Figure 3-3 TL-SG1024 Switch LEDs sketch Power LED: This indicator will light solid red when the Switch powers up. If the LED is not lit, please check the power supply and connection. Link/Act LED: This indicator will light solid green when the corresponding port is connected to another device and will flash green when data is being transmitted or received on... -
Page 10: Appendix A: Specifications
Appendix A: Specifications General Standards Topology Protocol Data Transfer Rate Network Media (Cable) Number of Ports IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T Star CSMA/CD Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex) Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex) Gigabit Ethernet: 2000Mbps (Full Duplex) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) - Page 11 LED indicators Power, Link/Act, 1000Mbps Transfer Method Store-and-Forward MAC Address Automatically Learning aging 10Base-T: 14881pps/Port Frame Filter 100Base-Tx: 148810pps/Port Rate 1000Base-T: 1488095pps/Port 10Base-T: 14881pps/Port Frame Forward 100Base-Tx: 148810pps/Port Rate 1000Base-T: 1488095pps/Port Environmental and Physical Dimensions Power Supply Output Operating Temperature 0 ~40℃ (32 ~104℉) Storage Temperature Operating Humidity Storage Humidity...
-
Page 12: Appendix B: Troubleshooting
Make sure the connected device is turned on and working well. The cable must be less than 100 meters long(328 feet). Appendix C: Contact Information For help with the installation or operation of the TP-LINK TL-SG1016/ TL-SG1024 16/24-port Gigabit Ethernet Switch, please contact us. E-mail: support@tp-link.com Website: http://www.tp-link.com...
