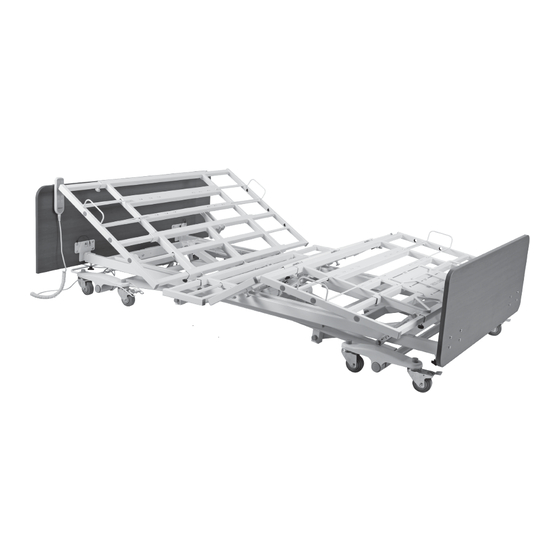

- Page 1 Bariatric HD Long-Term Care Bed DB600 5 Function Low Bed Expands to 54" • • User’s Manual 122°F IPX4 50°C 14°F -10°C Manufactured for: Dynarex Corporation 10 Glenshaw Street | Orangeburg, NY 10962 USA • www.dynarex.com | Made in China...
- Page 2 • DO NOT use accessories that are not designed or ap- result in damage. Consult your dealer or manufacturer for proved for use with the bed. Use only Dynarex approved further information. parts and accessories. DO NOT make modifications to the bed without authorization from the manufacturer.
- Page 3 DECLARATION – ELECTROMAGNETIC EMISSIONS Radio Frequency Interference (RFI) influences most electronic immediately. Leave it off while the transmission is in progress. equipment. Caution should be exercised regarding the use of Interference to electronic equipment may occur portable communications equipment in the area around such in the vicinity of devices marked with this symbol: equipment.
- Page 4 DECLARATION – ELECTROMAGNETIC EMISSIONS (Continued) Information about Non Life Support Devices Electromagnetic Interference Immunity Guidance and Manufacturer’s Declarations - Non-Life-Support-Devices Electromagnetic Interference Immunity The care bed is intended for use in the electromagnetic environment specified below. The customer or user of the care bed should ensure that it is used in such an environment.
- Page 5 DECLARATION – ELECTROMAGNETIC EMISSIONS (Continued) Working Clearances Recommended working clearances between portable and mobile RF communications equipment and the care bed The care bed is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or user of the care bed can help to prevent electromagnetic interference by maintaining a minimum dis- tance between portable and mobile RF communications equipment (transmitters) and the care bed as recommended below, according to the maximum output power of the communication device.
-
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS Bed Height 9.6"-26" Back Rest Angle 0°-65° Knee Break Angle 0°-35° Additional Manual Leg Lift Yes, various positions Trendelenburg/Reverse Trendelenburg ±12° Auto Contour Weight Capacity 1000 lb. Safe Working Load (SWL) 850 lb. Sleeping Surface Dimension (Width × Length – Extension) 37"-48"-54"... - Page 7 ASSEMBLY INSTRUCTIONS UNPACKING THE BED 3. Upon unpacking your bed, the package should contain all the components shown below. 1. Unpack the components from the shipping 4. Inspect the bed components for damage. If the cartons. bed is damaged, do not use the bed and contact the manufacturer.
- Page 8 ASSEMBLY INSTRUCTIONS (Continued) 2.1 ASSEMBLING THE HEADBOARD 2.3 ASSEMBLING THE HEADBOARDS/ BRACKETS TO THE BED FOOTBOARDS ONTO THE BED 1. With the bed raised to its highest position, step 1. With the mounting plates on the headboard on the locking levers to lock the casters on the facing the bed, slide the mounting plate groove foot end of the bed.
-
Page 9: Installing The Mattress
ASSEMBLY INSTRUCTIONS (Continued) 2.4 INSTALLING THE MATTRESS 3. Remove cover for the appropriate holes. RETAINER SYSTEM Holes for Swing Rails 1. Locate the mounting holes for the mattress retain- ers in the bed deck. Align and insert the mattress retaining wires through the pre-cast holes. 2. -
Page 10: Installing The Battery
ASSEMBLY INSTRUCTIONS (Continued) 2.6 INSTALLING THE WALL 2.9 INSTALLING THE BATTERY BUMPER BAR BACKUP 1. Remove the nuts and bolts from the two round 1. Unplug the bed when installing the backup bat- clamps on the caster legs at head of the bed. tery. -
Page 11: Equipment Operation
EQUIPMENT OPERATION POSITIONING THE BED 3. Adjust the bed end mattress retention frame to the required position. The extension lengths are marked on the bed platform. 1. To lock the bed, step on the lever at the rear of the bed. 2. - Page 12 EQUIPMENT OPERATION (Continued) ADJUSTING THE EXTENDED RESETTING THE BED HEEL LIFT Where a connection fault is identified and rectified, the hand pendant will require a reset in order to The end foot section can be adjusted manually to operate again. further alter the kneebreak angle.
-
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE SYMPTOMS POSSIBLE FAULTS POSSIBLE SOLUTIONS Bed idle when hand pendant Adjustment may be at the maximum Check if other buttons are working. buttons are pressed. or minimum position. Power cord not connected or Ensure the power cable is properly damaged. -
Page 14: Limited Warranty
• Problems arising from failure to adhere to the product the terms contained herein. instructions If you have a question about your Dynarex device or this • Problems arising from misuse, negligence, accident or warranty, please contact an authorized Dynarex dealer. -
Page 15: Service Record
SERVICE RECORD DATE PERFORMED BY CONDITION REPORT Bariatric Heavy Duty Long-Term Care Bed • DB600 • 5 Function Low Bed • Expands to 54" (Reorder No. 12014) - Page 16 SERVICE RECORD DATE PERFORMED BY CONDITION REPORT Bariatric Heavy Duty Long-Term Care Bed • DB600 • 5 Function Low Bed • Expands to 54" (Reorder No. 12014)
