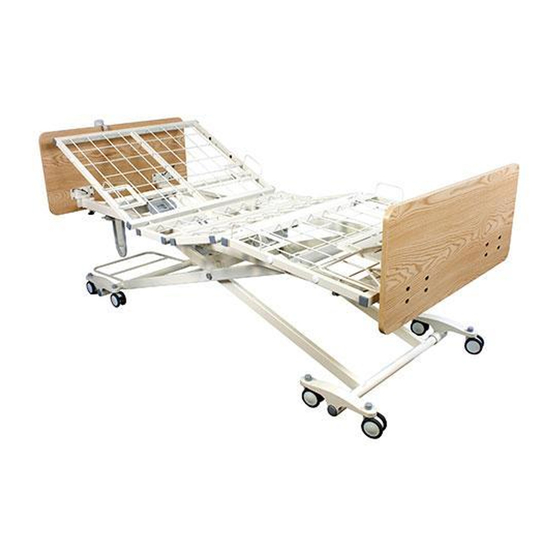

- Page 1 Reorder No. 12002 Manufactured for: Dynarex Corporation 10 Glenshaw Street Orangeburg, NY 10962 USA • www.dynarex.com Made in China Long-Term Care Bed D200 User Manual...
- Page 2 • DO NOT use accessories that are not designed or ap- • Cables should be routed and secured properly to ensure proved for use with the bed. Use only Dynarex approved they are not damaged during normal operation. DO NOT parts and accessories.
- Page 3 DECLARATION – ELECTROMAGNETIC EMISSIONS The D200 Long-Term Care Bed is intended for use in the Special considerations should be given to proximity of electromagnetic environment in which radiated RF distur- D200 Long-Term Care Bed and patients who have a cardiac bances are controlled.
-
Page 4: Technical Specifications
Yes, optional Operating Temperature 40°F-105°F (5°C-40°C) Storage Temperature 15°F-120°F (-10°C-50°C) Operation & Storage Humidity 20%-80% Operation & Storage Atmospheric Pressure 700-1060 hPa Operation & Storage Altitude ≤ 3000 m Noise Level < 50db(a) Long-Term Care Bed • D200 (Reorder No. 12002) - Page 5 Headboard Bracket × 2 Footboard Bracket × 2 Wall Bumper Bar × 1 Bed-end Mattress Retainer × 1 Mattress Retainer × 4 Allen Wrench (size 5 mm) × 1 Wrench × 1 Long-Term Care Bed • D200 (Reorder No. 12002)
- Page 6 2. Slide one of the footboard brackets into the slot. Tighten the black knob to secure the bracket in place. 3. Repeat the same procedure for the other footboard bracket. Long-Term Care Bed • D200 (Reorder No. 12002)
-
Page 7: Mattress Retainers
2. Align and insert the mattress retaining wires through the pre-cast holes. 3. Ensure the mattress retainer is flat against the bed deck. Long-Term Care Bed • D200 (Reorder No. 12002) -
Page 8: Control Box Connections
U-shaped insert into the assist bar bracket. 1 2 3 4 5 6 1. Battery Backup Port 2. Backrest Motor 3. Knee-break Motor 4. Bed Lift Motor 5. Spare 6. Port for hand pendant or staff control Long-Term Care Bed • D200 (Reorder No. 12002) - Page 9 4. Disconnect the hand pendant connection to the be an audible click. control box and replace it with a cable splitter. 8. Plug the bed into an appropriate outlet and test functions to ensure all functions work correctly. Long-Term Care Bed • D200 (Reorder No. 12002)
-
Page 10: Installing The Battery
4. Connect the back up battery cord to the control box. The connection port is indicated with a bat- tery symbol above. 5. Close the locking lid, there should be a audible click, switch the power supply back on. Long-Term Care Bed • D200 (Reorder No. 12002) - Page 11 6. Rotate the plastic levers until they are paralleled with the footboard, pointing to the sides of the bed. This will lock the footboard in place. 7. Repeat the same procedure for the headboard installation. Long-Term Care Bed • D200 (Reorder No. 12002)
-
Page 12: Equipment Operation
80", 84" and 88". Tighten the securing knobs once desired length is set. 3. Adjust the bed end mattress retention frame to the required position. The extension lengths are marked on the bed platform. Long-Term Care Bed • D200 (Reorder No. 12002) - Page 13 Lower Bed Rail: Press the release button and slowly Lower Assist Bar: Pull the release knob and slowly lower the bed rail to its lowest position. lower the bar to its lowest position. Long-Term Care Bed • D200 (Reorder No. 12002)
-
Page 14: Troubleshooting Guide
Thermal shut down may have Wait at least 20 minutes before occurred. trying the functions again. The bed is intended to be used for 2 min every 20 min. Long-Term Care Bed • D200 (Reorder No. 12002) -
Page 15: Limited Warranty
Refer to Assembly Instructions. not tightly secured. LIMITED WARRANTY Your Dynarex Product is warrantied to be free of defects in • Products where the serial number has been removed or materials and workmanship for Fifteen (15) years on struc- defaced tural Steel, Three (3) years on electrical and mechanical, •... -
Page 16: Service Record
SERVICE RECORD DATE PERFORMED BY CONDITION REPORT Long-Term Care Bed • D200 (Reorder No. 12002) - Page 17 SERVICE RECORD DATE PERFORMED BY CONDITION REPORT Long-Term Care Bed • D200 (Reorder No. 12002)
