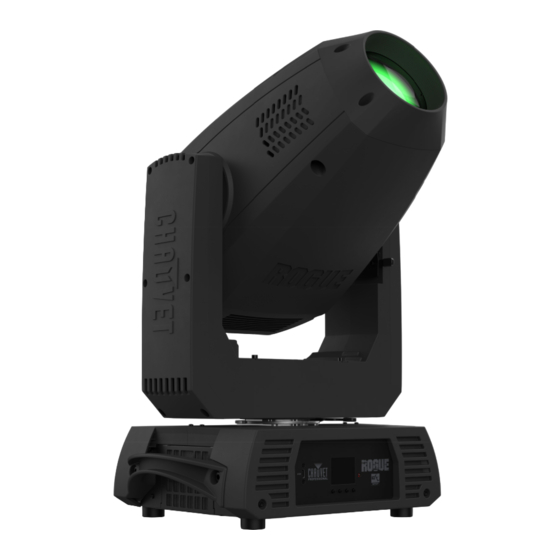

Chauvet Professional Rogue R3E Spot User Manual

Hide thumbs Also See for Rogue R3E Spot:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Model ID: ROGUER3ESPOT

Advertisement

Table of Contents
loading

Related Manuals for Chauvet Professional Rogue R3E Spot

Summary of Contents for Chauvet Professional Rogue R3E Spot

  • Page 1 User Manual Model ID: ROGUER3ESPOT...
  • Page 2 Edition Notes The Rogue R3E Spot User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Rogue R3E Spot as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and Rogue are registered trademarks or trademarks of Chauvet &...

  • Page 3: Table Of Contents

    Screen Reverse ....................20 Pan Angle......................20 Tilt Angle ......................20 Pan and Tilt Movement Blackout ............... 20 Color Movement Blackout .................. 20 Gobo Movement Blackout.................. 20 LED Frequency ....................20 Reset Function ....................21 Rogue R3E Spot User Manual Rev. 3...
  • Page 4 Auto Test......................21 Manual Test ....................... 21 System Information ..................Offset Mode....................5. Maintenance................Product Maintenance ..................Gobo Maintenance..................Transporting on Truss or Racks..............6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Rogue R3E Spot User Manual Rev. 3...

  • Page 5: Before You Begin

    Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Rogue R3E Spot User Manual Rev. 3...

  • Page 6: Safety Notes

    • In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. Rogue R3E Spot User Manual Rev. 3...

  • Page 7: Fcc Statement Of Compliance

    LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Rogue R3E Spot User Manual Rev. 3...

  • Page 8: Introduction

    2. Introduction Description Rogue R3E Spot offers an expansive 6:1 zoom and a feature-packed effects wheelhouse in a rugged lightweight body housing an intensely bright optical system. Dual gobo wheels combine to create complex gobo morphing. Dual color wheels offer split colors and continuous variable speed scrolling. Iris, prism, and frost provide stunning effects and full beam control.

  • Page 9: Product Dimensions

    317 mm 8.3 in 8.7 in 210 mm 222 mm 15.5 in 394 mm 23 in 585 mm 11.3 in 288 mm 4.1 in 104 mm 14.0 in 9.4 in 356 mm 239 mm Rogue R3E Spot User Manual Rev. 3...

  • Page 10: Setup

    3. Setup AC Power The Rogue R3E Spot has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

  • Page 11: Usb Update

    Setup USB Update The Rogue R3E Spot allows for software update through USB using the built-in USB port. To update the software using a USB type C flash drive, do the following: 1. Power on the fixture and plug the flash drive into the USB port.

  • Page 12: Mounting

    When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Rogue R3E Spot comes with 2 Omega brackets to which the user can directly attach the mounting clamps (sold separately). Make sure the clamps are capable of supporting the weight of this product. Use at least two mounting points per product.

  • Page 13: Operation

    Navigates upwards through the menu list or increases the numeric value when in a function <DOWN> Navigates downwards through the menu list or decreases the numeric value when in a function Menu Map Refer to the Rogue R3E Spot product page on www.chauvetprofessional.com for the latest menu map. Main Level...
  • Page 14 Factory Settings factory settings Displays the software version Running Mode Displays the current running mode DMX Address Displays the current DMX address Sys Info Displays the product’s temperature in Temperature Celsius Shows product UID Rogue R3E Spot User Manual Rev. 3...

  • Page 15: Dmx Configuration

    1. Go to the Address main level. 2. Select the starting address (001–512). • The highest recommended starting address for 19CH is 494. • The highest recommended starting address for 25CH is 488. Rogue R3E Spot User Manual Rev. 3...

  • Page 16: Control Channel Assignments And Values

    042  048 Pink 049  055 Light Blue 056  063 Dark Yellow 064  127 Split color 128  191 Color scroll, slow to fast 192  255 Counterclockwise color scroll, slow to fast Rogue R3E Spot User Manual Rev. 3...
  • Page 17 121  127 Open 128  191 Clockwise scroll, slow to fast 192  255 Counterclockwise scroll, slow to fast 14 Focus 000  255 0-100% – 15 Focus fine 000  255 Fine control (16-bit) Rogue R3E Spot User Manual Rev. 3...
  • Page 18 21 Iris 128  191 Slow open, fast close (slow to fast) 192  255 Slow close, fast open (slow to fast) 000  007 No function 22 Frost 008  255 Frost effect Rogue R3E Spot User Manual Rev. 3...
  • Page 19 224  231 Movement macro 28 232  239 Movement macro 29 240  247 Movement macro 30 248  255 Movement macro 31 – 24 Movement macro speed 000  255 Fast to slow Rogue R3E Spot User Manual Rev. 3...
  • Page 20 200  207 Fan full 208  215 Fan auto 216  223 No function 224  231 No function 232  239 No function 240  247 No function 248  255 No function Rogue R3E Spot User Manual Rev. 3...

  • Page 21: Gobo Wheels

    Gobo Wheel Gobo # Description Dots breakup Tribal breakup Bricks Shattered Triangle rays Stickmen Grouped ovals Linear ovals Static Rotating gobo wheel gobo wheel Triangle breakup Laser triangle Foliage breakup Line Circle dot Thatched breakup Mosaic breakup Rogue R3E Spot User Manual Rev. 3...

  • Page 22: Color Wheels

    Dark Yellow Pink Yellow Magnet Orange Light Blue CTC-5600K Light Blue Magnet Green Green Pink Dark Blue Magenta Orange Color Wheel 1 Color Wheel 2 Rotating Gobo Dimensions 20 mm 16 mm IMAGE Rogue R3E Spot User Manual Rev. 3...

  • Page 23: Gobo Replacement

    LED. This provides a layer of protection against the high temperature from the LED. • All custom gobos in the Rogue R3E Spot gobo wheel 1 must be aluminum or glass. Procedure Follow the recommended procedure below to remove or replace the gobos: 1.

  • Page 24: Settings Configuration

    To adjust the Pulse Width Modulation (PWM) frequency of the LED: 1. Go to the Setup main level. 2. Select the PWM Option option. 3. Select the frequency, from 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, or 15000Hz. Rogue R3E Spot User Manual Rev. 3...

  • Page 25: Reset Function

    3. Select NO (to cancel) or YES (to reset the product configuration). Test Mode Auto Test To have the Rogue R3E Spot automatically test all functions one after the other: 1. Go to the Run Mode main level. 2. Select the Auto Test option.

  • Page 26: Maintenance

    (needle tip applier recommended). Make sure the gobo holder is rotating freely and is not making any abnormal noise. 8. Reinstall the gobos in the gobo holder. Make sure the gobos are in the correct positions. 9. Reinstall the gobo holder in the unit Rogue R3E Spot User Manual Rev. 3...

  • Page 27: Transporting On Truss Or Racks

    This is to prevent undue stress on the tilt locks and limit the amount of off-axis bounce on internal components. Rogue R3E Spot User Manual Rev. 3...

  • Page 28: Technical Specifications

    I/O Connector Channel Range 3-pin & 5-pin XLR 19 or 25 Ordering Product Name Item Name Item Code UPC Number Rogue R3E Spot ROGUER3ESPOT 08012215 781462225641 UL 1573 CSA C22.2 No. 166 E113093 Rogue R3E Spot User Manual Rev. 3...

  • Page 29: Contact Us

    For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Rogue R3E Spot User Manual Rev. 3...
