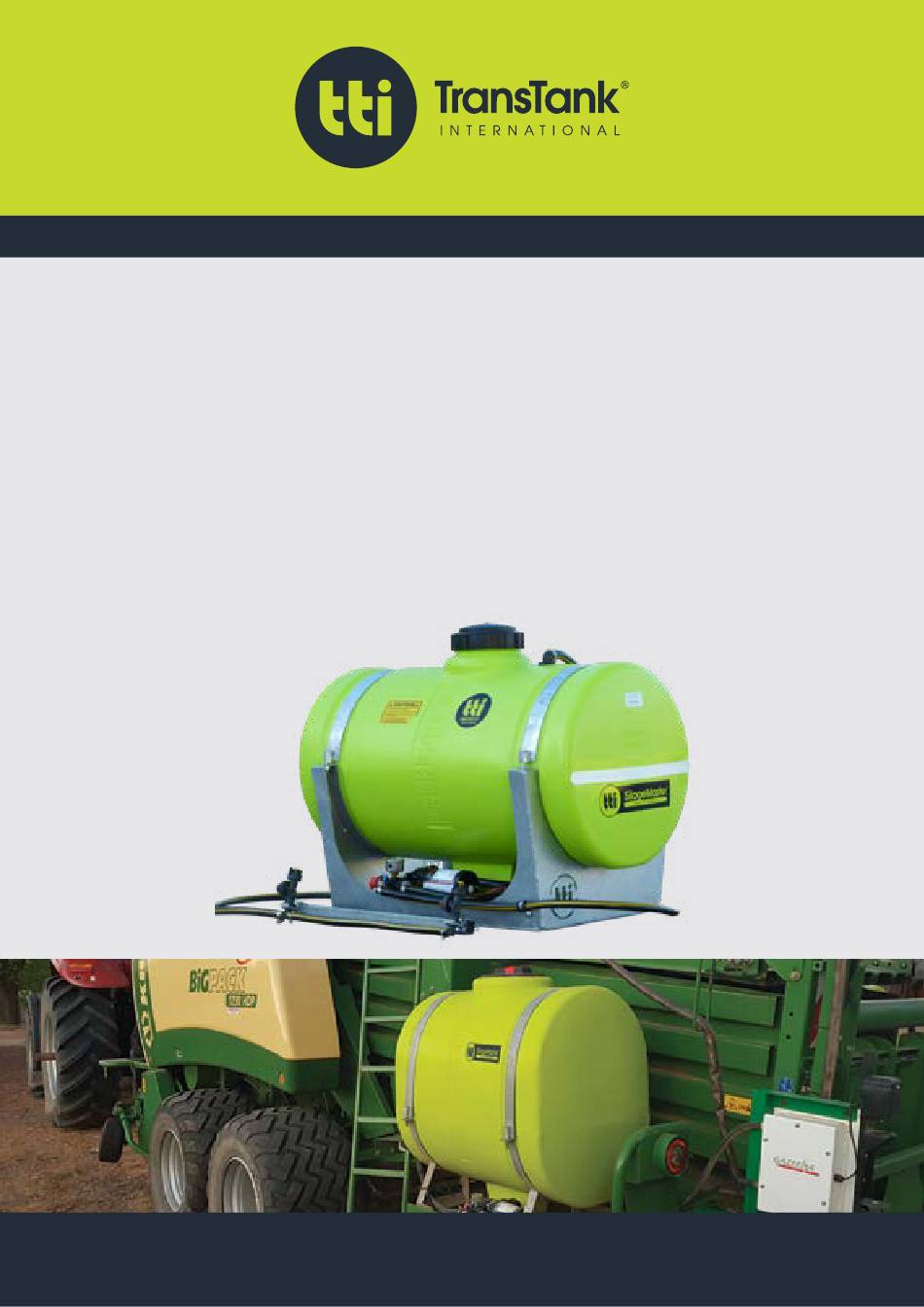

- Page 1 Operator’s Product HandBook SilageMaster ™ Silage Applicator Sprayer “HELPING TO DEVELOP AND PROTECT THE LAND”...
-
Page 2: Table Of Contents
General Safety Instructions General Information Specifications Description Machine Limitations Driving Stability Spray Boom Calibration Calibration Procedure SilageMaster Operating Instructions Before first use Filling the SilageMaster Tank Operating Instructions Clean-up and Decontamination Maintenance Periodic Checks Maintenance Schedule Trouble Shooting Pump Risk Assessment Warranty... - Page 3 The SilageMaster unit is supplied complete, tested and ready to mount to your vehicle. TTi warrants that the SilageMaster has been designed and built for its intended purpose as a silage spray unit.
-
Page 4: Safety
SilageMaster ™ PRODUCT HANDBOOK Safety This manual is intended for use by personnel experienced in the use of this and similar equipment. Read and understand this manual before attempting to operate or perform routine maintenance on this equipment. Your safety is of prime priority. -
Page 5: General Safety Instructions
Australian Standard for Respiratory protection devices AS1715 7. Ensure the capacity of the vehicle is suitable for the loaded mass of the SilageMaster. Refer to the vehicle’s operator manual for safe working loads, correct securing points and relevant safety instructions. Do not exceed the carrying and braking capacity as specified by the vehicle manufacturer. -
Page 6: General Information
SilageMaster ™ PRODUCT HANDBOOK General Information Specifications Tank UV stabilised chemical resistant polyethylene fully drainable tank – 100 and 200 litre capacities Frame Galvanised steel mounting frame Standard Remco 12V electric pump – 8.3L/min 100psi, c/w 3.6m electrical lead with... -
Page 7: Description
Figure 1 – Component Identification Pump The SilageMaster is fitted with an 8.3 L/min 100psi 12V Remco electric pump. If the spray boom is not in operation when the pump is running, the fluid bypasses back into the tank. Spray Boom The SilageMaster’s double nozzle spray boom is mounted to the tow vehicle (tractor or baler) at a suitable... -
Page 8: Machine Limitations
After every 100 hectares of spraying PPE appropriate to the chemicals being used must be worn at all times when calibrating the SilageMaster. As a minimum, the PPE should include coveralls, gloves and boots. A face shield and PVC apron are recommended. - Page 9 For initial trials, set the pressure regulator at approximately 2 bar and adjust as needed. • Fill the spray tank with clean water, refer to Filling the SilageMaster Tank procedure below. Run the sprayer at the correct pressure with all nozzles operating. •...
- Page 10 SilageMaster ™ PRODUCT HANDBOOK Figure 2 – AIXR Application Chart www.tti.com.au Freecall: 1800 816 277...
-
Page 11: Silagemaster Operating Instructions
Plug the supplied 3.6m pump power cable into the other cable socket at the ON-OFF switch control unit, then route the cable from the SilageMaster to the tow vehicle’s power supply. Ensure the cable is located where it will not be damaged. -
Page 12: Filling The Silagemaster Tank
Figure 3 –ON-OFF Switch Control Unit and Wireless Remote • It is recommended that at first use, the SilageMaster is filled with water for calibration purposes and for the operator to become familiar with the characteristics of the unit. Refer to the Calibration Procedur above. -
Page 13: Operating Instructions
(BYPASS) position, enabling the fluid to circulate back into the tank. • Upon completion of filling the SilageMaster tank, replace the filler cap and twist to tighten. • Wash off any spillage from outside the tank. -
Page 14: Clean-Up And Decontamination
Dispose of all rinsing water in compliance with environmental and work safety requirements. If the SilageMaster unit is to be stored for an extended period, thoroughly clean and decontaminate the unit as described above. Ensure it is allowed to dry, the tank and all lines empty and not pressurised then store it in a well ventilated area. -
Page 15: Maintenance
Check all electrical cables and fittings for any sign of damage. • If the SilageMaster is to be stored for an extended period, thoroughly clean and decontaminate the unit as described above. Ensure it is allowed to dry, the tank and all lines empty and not pressurised then store it in a well ventilated area. - Page 16 SilageMaster ™ PRODUCT HANDBOOK Daily Tasks The following tasks are to be undertaken daily, or prior to each use, of the SilageMaster unit. Task Notes Inspect the SilageMaster unit for any signs of damage or wear Clean, repair or replace...
-
Page 17: Trouble Shooting
12-Monthly tasks Replace pump check valves and diaphragms Replace battery in wireless remote control unit Trouble Shooting If a fault develops with your SilageMaster unit, the following trouble shooting tables provides guidance to identify and rectify the problem. Pump Problem... -
Page 18: Risk Assessment
SilageMaster ™ PRODUCT HANDBOOK Risk Assessment Task Hazard Risk Control Measure/Mitigation Check weather Manual handling; slips, • Wear PPE as per chemical requirements conditions trips or falls SDS – coveralls, gloves, safety footwear, glasses & respirator • Follow safe manual handling techniques: don’t lift on your own if >20kg, bend knees... -
Page 19: Warranty `19
SilageMaster ™ PRODUCT HANDBOOK Warranty Warranty Policy TTI will, at its option, repair or replace without charge any part covered by this warranty which is found to be defective in material and/or workmanship within one (1) year after date of sale to the original retail purchaser. - Page 20 1800 816 277 sales@tti.com.au PO Box 137, Nathalia, VIC, 3638 Murray Valley Hwy, Nathalia, VIC 3638 Proudly Built By: Quality Checked By: Signature Date Signature Date www.tti.com.au...
