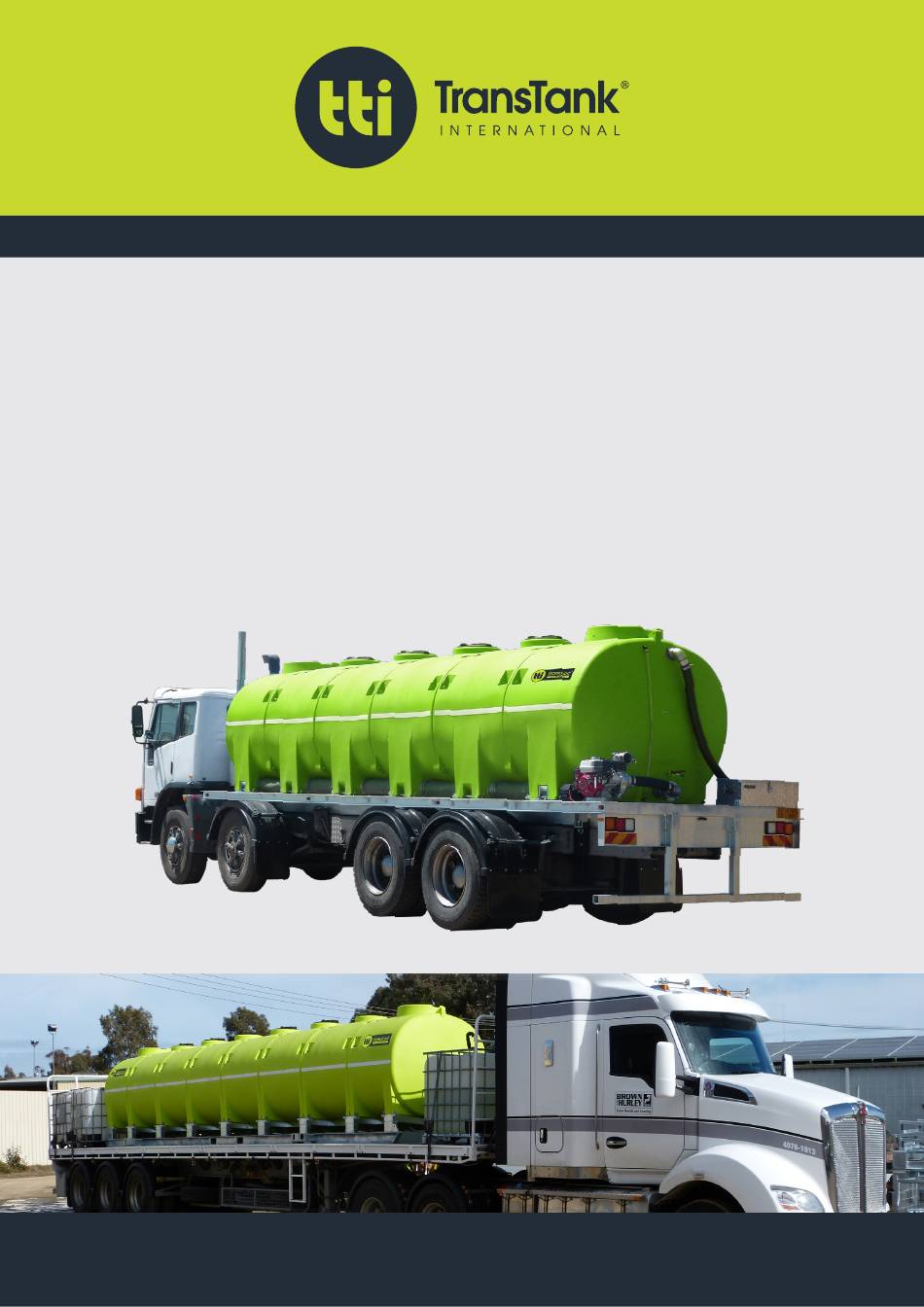

- Page 1 Operator’s Product HandBook TransLoc & Interloc ™ ™ Water Cartage Tanks “HELPING TO DEVELOP AND PROTECT THE LAND”...
-
Page 2: Table Of Contents
General Information Specifications Description Machine Limitations Driving Stability Operating Instructions Before First Use Filling the Tank TransLoc/InterLoc Operation Maintenance Periodic Checks Risk Assessment Warranty Warranty Policy What this Warranty Does Not Cover? How to Obtain Service Under this Warranty? Warranty Limitations www.tti.com.au... - Page 3 All information, illustrations, and specifications contained in this manual are based on the latest product information available at the time of this publication’s printing. TransTank International (TTi) reserves the right to alter and substitute specifications and methods at any time, in line with our commitment to continuous improvement.
-
Page 4: Safety
TransLoc & InterLoc ™ ™ PRODUCT HANDBOOK Safety This manual is intended for use by personnel experienced in the use of this and similar equipment. Read and understand this manual before attempting to operate or perform routine maintenance on this equipment. -
Page 5: General Safety Instructions
Safety Data Sheet (SDS). 8. Ensure the capacity of the vehicle is suitable for the loaded mass of the TransLoc/InterLoc. Refer to the vehicle’s operator manual for safe working loads and relevant safety instructions. Do not exceed the carrying and braking capacity as specified by the vehicle manufacturer. -
Page 6: General Information
Water level sight tube Description The TTi TransLoc is designed to carry water and benign fluids safely and effectively. The InterLoc is designed to carry water and other fluids safely and effectively. The TransLoc and InterLoc modules have the following features, refer to Figure 1 and Figure 2 respectively. - Page 7 The TransLoc/InterLoc comes in our standard opaque Safety Green, with a range of translucent and opaque colours available as an option. TransLoc Modules A specific design feature is our tank feet on the TransLoc, enabling easy and quick mounting to any tray surface. InterLoc Modules The extra thick tank wall structure provides a load capacity of up to 1.3 Specific Gravity.
-
Page 8: Machine Limitations
Inspect the tank for any damage or abrasions. • Mount the TransLoc tanks onto the vehicle, ensuring each modular unit is fully supported on a flat surface. Ensure all feet are secured correctly with the supplied mounting pins and wedges, refer to Figure 3. -
Page 9: Filling The Tank
InterLoc unit must not be u s ed for fuel. • The TransLoc/InterLoc tank is filled by gravity from a supply, such as an overhead standpipe or supply hose as follows: N OTE : Wh ere option al Tran sLoc t ank interconnectio n has b een f i tted , filling c an be un der t aken u sing any of the t ank top openings . -
Page 10: Transloc/Interloc Operation
6. Where the tank modules are not interconnected, repeat the above procedure for the next tank. TransLoc/InterLoc Operation The TransLoc/InterLoc is supplied with an MBSP fitting at the base of the tank to connect to your discharge system. When so connected, the control of flow may be regulated by the discharge system. -
Page 11: Risk Assessment
TransLoc & InterLoc ™ ™ PRODUCT HANDBOOK Risk Assessment Task Hazard Risk Control Measure/Mitigation Ensure tank is mounted Load not secured; Medium Read/follow decals on the tank correctly on vehicle and overloaded vehicle; • Follow safe manual handling do not overload vehicle. -
Page 12: Warranty
TransLoc & InterLoc ™ ™ PRODUCT HANDBOOK Warranty Warranty Policy TTI will, at its option, repair or replace without charge any part covered by this warranty that is found to be defective in material and/or workmanship within twenty (20) years after the date of sale to the original retail purchaser. - Page 16 1800 816 277 sales@tti.com.au PO Box 137, Nathalia, VIC, 3638 Murray Valley Hwy, Nathalia, VIC 3638 Proudly Built By: Quality Checked By: Signature Date Signature Date www.tti.com.au...
