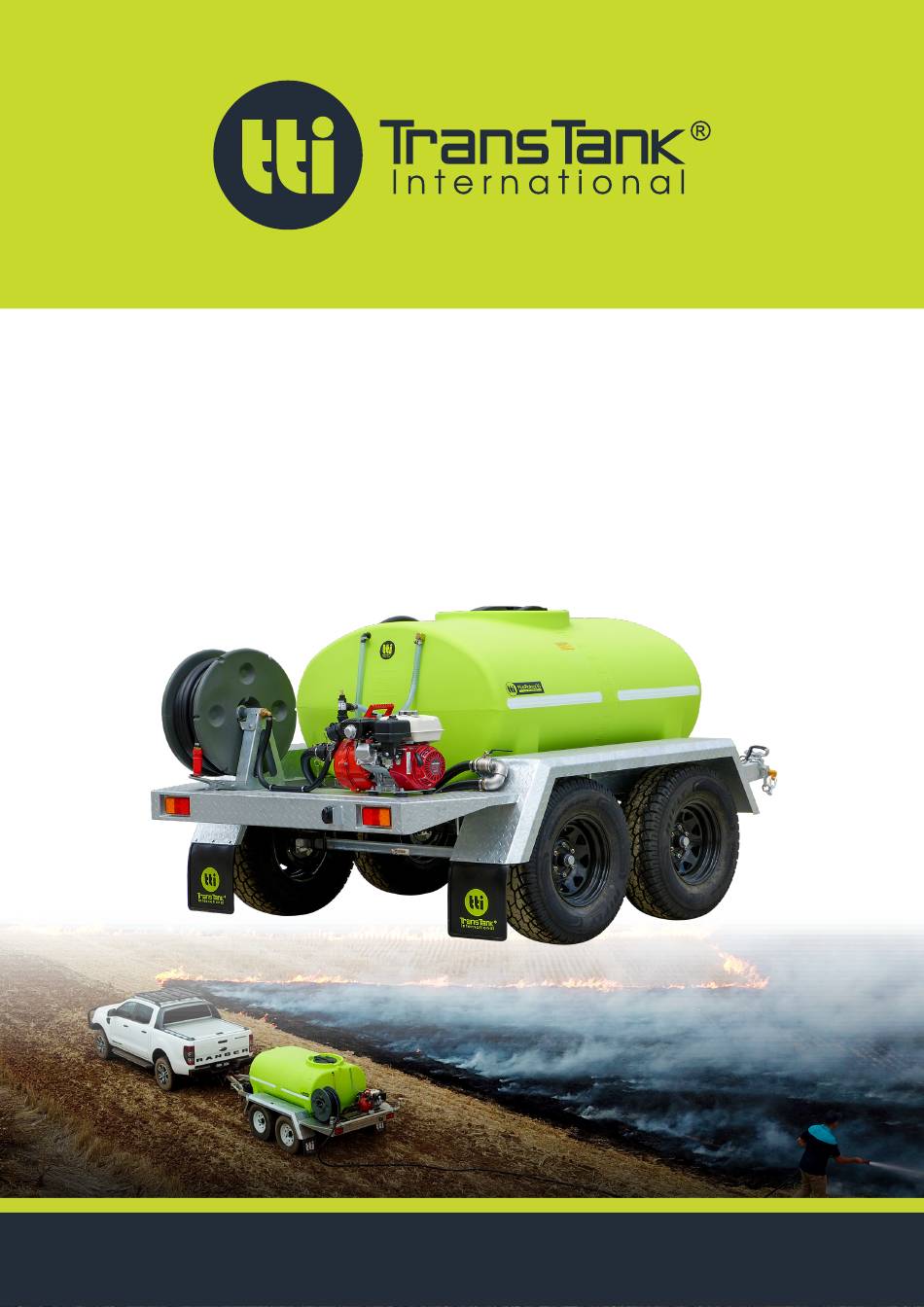

- Page 1 FirePatrol ™ FirePatrol14 & FirePatrol15 ™ ™ Operator’s HandBook w w w . t t i . c o m . a u Manufacturer of “The Safest Tanks in Motion”...
-
Page 2: Table Of Contents
FirePatrol™ Product HandBook Contents Safety General Safety Instructions General Information Specifications Description Machine Limitations Driving Stability Operating Instructions Before First Use Pump Operation – Petrol Engine Pump Operation – Diesel Engine Option Filling the Tank FirePatrol Operation Risk Assessment Maintenance Periodic Checks Maintenance Maintenance Schedule... - Page 3 All information, illustrations, and specifications contained in this manual are based on the latest product information available at the time of this publication’s printing. TransTank International (TTi) reserves the right to alter and substitute specifications and methods at any time, in line with our commitment to continuous improvement.
-
Page 4: Safety
FirePatrol™ Product HandBook Safety This manual is intended for use by personnel experienced in the use of this and similar equipment. Read and understand this manual before attempting to operate or perform routine maintenance on this equipment. Your safety is of prime priority. A WARNING highlights an essential operating or maintenance procedure, practice, condition or statement, which, if not strictly observed, could result in injury or death of personnel, or long-term health hazards. -
Page 5: General Safety Instructions
FirePatrol™ Product HandBook General Safety Instructions This unit is designed and manufactured solely for the purpose of carrying and pumping water for firefighting, tree watering and optional dust suppression duties. Under no circumstances should it be used for any other purpose. It must never be used for transporting fuel or chemicals. 2. -
Page 6: General Information
FirePatrol™ Product HandBook General Information Specifications Tank UV resistant polyethylene tank (800 to 3,000 litre capacity), complete with LiquidLockerTM Baffle Safety System Trailer Fully welded and galvanised heavy duty steel frame, single or dual axle with 15” Sunraysia wheels with 6-stud pattern Standard Equipment LiquidLocker™... -
Page 7: Description
FirePatrol™ Product HandBook Description The TTi FirePatrol is designed to carry and distribute water using a self-contained pump and various water dispensing systems. The FirePatrol has the following features, refer to Figure 1. Figure 1 – Component Identification Tank All TTi tanks are constructed from UV resistant, virgin material polyethylene. Due to the rotational moulding process, there may be a small variance in the overall dimensions of the tank, therefore, calibration markings should be used as a guide only. - Page 8 FirePatrol™ Product HandBook Pump The FirePatrol is fitted with a twin impeller Davey firefighting pump as standard. The pump is coupled to a Honda GX200 engine or optional Yanmar diesel engine. The petrol engine is recoil (pull) start with local or remote electric start upgrade options available.
-
Page 9: Machine Limitations
FirePatrol™ Product HandBook Solenoid Valve An optional electrically operated solenoid valve is fitted to the deflector manifold to enable spray control via the remote control unit. The solenoid valve receives its power from the tow vehicle via the Anderson plug located adjacent to the tow hitch. - Page 10 FirePatrol™ Product HandBook • Read and thoroughly understand this handbook, paying particular attention to all safety requirements, before using the FirePatrol for the first time. • Check that all fittings, valves, hoses and electrical leads are secure following transit, and are not damaged in any way.
-
Page 11: Pump Operation - Petrol Engine
FirePatrol™ Product HandBook Pump Operation – Petrol Engine The FirePatrol’s petrol pump engine is started as follows, refer to Figure 3: • Turn the fuel lever to ON. • If the engine is cold, turn the choke lever to ON. CAUTION: Ensure the engine’s throttle is set to idle if the engine is cold. -
Page 12: Pump Operation - Diesel Engine Option
FirePatrol™ Product HandBook Pump Operation – Diesel Engine Option The FirePatrol’s optional diesel pump engine is started as follows, refer to Figure 3: • Turn the fuel tap to ON. CAUTION: Ensure the engine’s throttle is set to the start position. Do not adjust the throttle to maximum speed until the engine has warmed up. - Page 13 FirePatrol™ Product HandBook CAUTION: To prevent overflow, do not leave the filling operation unattended. • An optional sight level tube is fitted to the rear of the tank, providing a visual indicator of the level of water in the tank. If a sight level tube is not fitted, observe the water level directly in the tank. When the tank is filled, close the standpipe’s valve.
- Page 14 FirePatrol™ Product HandBook CAUTION: To prevent overflow, do not leave the filling operation unattended • An optional sight level tube is fitted to the rear of the tank, providing a visual indicator of the level of water in the tank. If a sight level tube is not fitted, observe the water level directly in the tank. When the tank is filled, stop the pump.
-
Page 15: Firepatrol Operation
FirePatrol™ Product HandBook CAUTION: To prevent overflow, do not leave the filling operation unattended. • An optional sight level tube is fitted to the rear of the tank, providing a visual indicator of the level of water in the tank. When the tank is filled, close the supply hydrant’s valve. •... - Page 16 FirePatrol™ Product HandBook Fire Hose Use With the FirePatrol unit operating as described above, the fire hose is used as follows, refer to Figure 6: • Unlock the hose reel and release the hose’s nozzle from its retaining bracket. Pull out the length of fire hose required.
- Page 17 FirePatrol™ Product HandBook NOTE: The solenoid is electrically active when in use. Ensure it is switched to the POWERED position at the three-way switch. If fitted with the optional solenoid actuated valve, move the three-way switch at the rear of the FirePatrol from OFF to the POWERED position, refer to Figure 7.
- Page 18 FirePatrol™ Product HandBook Figure 8 – Water Deflector Spray Head (optional) The optional dual deflector spray head system is operated as follows: • If required, release the camlock connector to rotate the deflector spray head to the desired angle, refer to Figure 8.
-
Page 19: Risk Assessment
FirePatrol™ Product HandBook Risk Assessment Task Hazard Risk Control Measure/Mitigation Partially fill the tank Manual handling; slips, Medium Concentrate on task; follow safe manual with water, start the trips or falls; petrol; handling techniques: motor & test the spray diesel; fumes; fingers •... -
Page 20: Maintenance
FirePatrol™ Product HandBook Maintenance Your FirePatrol™ Heavy-Duty Trailer Unit requires minimal maintenance but regular cleaning and checks will ensure safe and reliable service over its lifetime. Periodic checks and inspections will identify any potential issues, enabling timely rectification and minimising downtime. Periodic Checks The following checks and cleaning operations should be undertaken on a regular basis. -
Page 21: Maintenance Schedule
FirePatrol™ Product HandBook Maintenance Schedule The following tasks are be conducted in accordance with each of the schedules. All scheduled tasks are to be undertaken concurrently. For example, at the three month maintenance interval, all task listed are to be undertaken, in addition to the daily, weekly and monthly tasks. - Page 22 FirePatrol™ Product HandBook Monthly Tasks The following tasks are to be undertaken each month or 20 operating hours, whichever occurs first. Task Date Signed All Daily and Weekly tasks Check tyre pressures are 36psi (248kPa or 2.48 Bar) Visually inspect tyres for wear or damage Check wheel nut tension Visually inspect suspension components Visually inspect hydraulic brake lines, check for leaks, top...
- Page 23 FirePatrol™ Product HandBook Twelve Monthly Tasks The following tasks are to be undertaken every twelve months or 200 operating hours, whichever occurs first. Task Date Signed All Daily, Weekly, Monthly, 3-Monthly & 6-Monthly tasks Check the battery condition (if fitted) Replace the engine’s air filter Drain and flush the fuel tank Replace the engine’s fuel filter...
-
Page 24: Trouble Shooting
FirePatrol™ Product HandBook Trouble Shooting If a fault develops with the FirePatrol, the following trouble shooting table provides guidance to identify and rectify the problem. Problem Possible Cause Remedy Pump will not feed water Ball valve closed on outlet/s Open ball valve/s Engine will not crank Flat battery Check battery state-of-charge... -
Page 25: Warranty
FirePatrol™ Product HandBook Warranty Warranty Policy TTI will, at its option, repair or replace without charge any part covered by this warranty which is found to be defective in material and/or workmanship within one (1) year after date of sale to the original retail purchaser. If the product is used for rental purposes, this warranty is limited to ninety (90) days. - Page 28 www.tti.com.au 1800 816 277 sa l e s@ tt i.c om.au P O B ox 1 37, N at ha li a , V I C , 3 63 8 M ur ray Va l l ey H w y, N ath a l i a , V I C 363 8 Quality Checked By: Proudly Built By: Signature...
