Summary of Contents for TransTank AquaDelivery

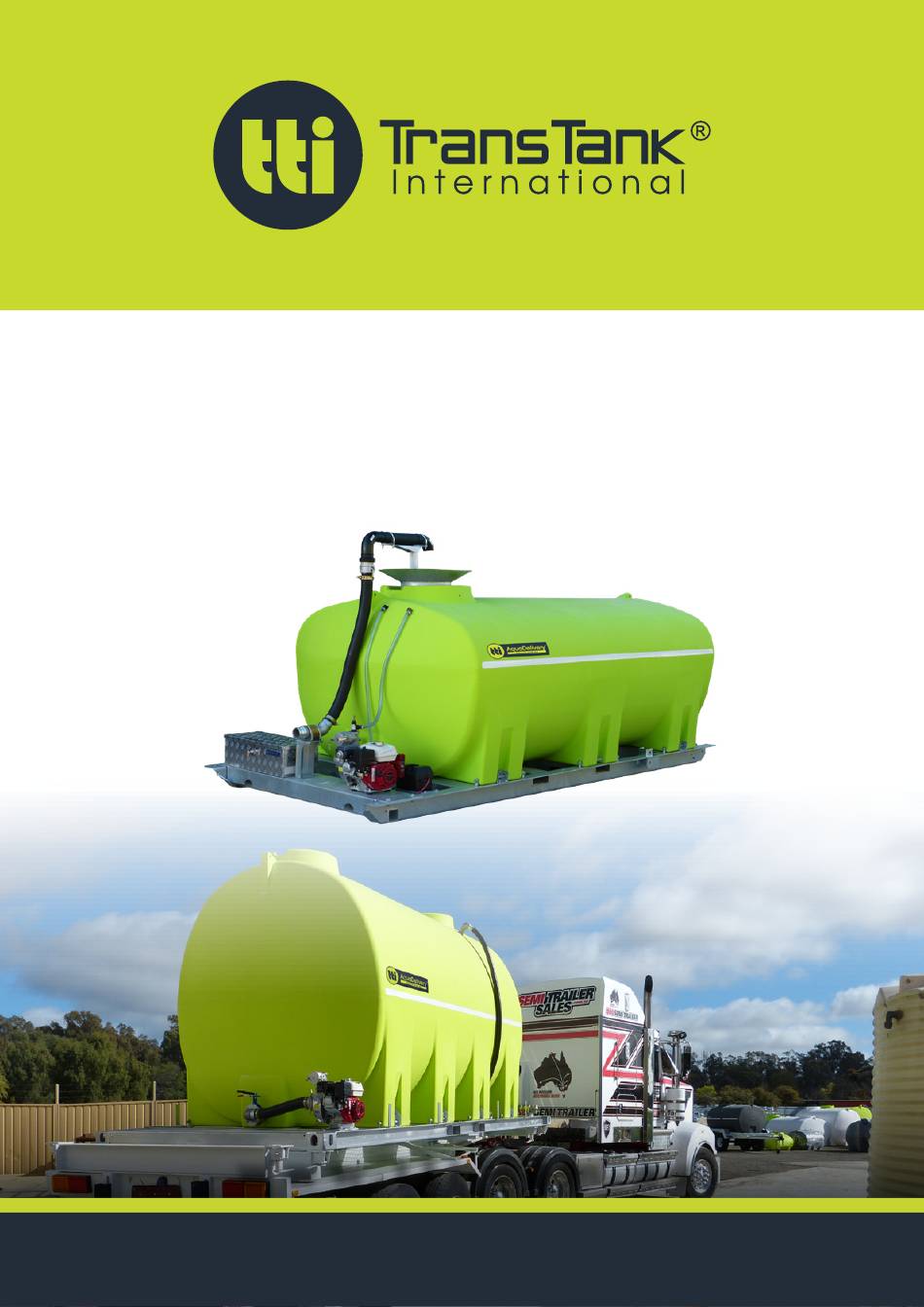

- Page 1 AquaDelivery ™ Operator’s HandBook w w w . t t i . c o m . a u Manufacturer of “The Safest Tanks in Motion”...
-
Page 2: Table Of Contents
Machine Limitations Driving Stability Operating Instructions Before First Use Pump Operation – Petrol Engine Pump Operation – Diesel Engine Option Filling the Tank AquaDelivery Operation AquaDelivery Loading Procedure Risk Assessment Maintenance Periodic Checks Maintenance Maintenance Schedule Trouble Shooting Warranty Warranty Policy... - Page 3 The AquaDelivery unit is supplied complete, tested and ready to go. TTi recommends that only water be used in the AquaDelivery unit. TTi warrants that the AquaDelivery has been designed and built for its intended purpose for transporting and dispensing potable water.
-
Page 4: Safety
AquaDelivery™ Product HandBook Safety This manual is intended for use by personnel experienced in the use of this and similar equipment. Read and understand this manual before attempting to operate or perform routine maintenance on this equipment. Your safety is of prime priority. -
Page 5: General Safety Instructions
7. Disconnect the battery, if fitted, before conducting any electrical maintenance work. 8. Ensure the capacity of the vehicle is suitable for the loaded mass of the AquaDelivery. Refer to the vehicle’s operator manual for safe working loads and relevant safety instructions. Do not exceed the carrying and braking capacity as specified by the vehicle manufacturer. -
Page 6: General Information
AquaDelivery™ Product HandBook General Information Specifications Tank UV resistant food grade polyethylene tank (5,000 to 17,000 litre capacity) Skid Frame Fully welded and galvanised heavy duty steel frame with forklift pockets Standard Equipment Honda GX200 electric start petrol engine with 1,000L/min 3”... -
Page 7: Description
AquaDelivery™ Product HandBook Description The TTi AquaDelivery is designed to carry and distribute water using a self-contained pump as standard. The AquaDelivery has the following features, refer to Figure 1 (Honda petrol pump unit shown). Figure 1 – Component Identification Tank All TTi AquaDelivery tanks are constructed from UV resistant, virgin material, food grade polyethylene. -
Page 8: Machine Limitations
The tank must be fully drained of water prior to lifting the unit. Ball Control Valve The AquaDelivery has a ball control valve used to open or close water flow on the suction line from the tank to the pump. Machine Limitations The AquaDelivery unit is subject to operating limitations. -
Page 9: Driving Stability
Operating Instructions Before First Use Your AquaDelivery Bulk Water Delivery Unit is delivered fully assembled. Before use, it needs to be set up using the following instructions: • Complete the warranty registration online at www.tti.com.au/warranty-registration, or use the Warranty Registration Card at the back of this handbook. -
Page 10: Pump Operation - Petrol Engine
Ensure t he ign ition key is sw itch ed ON. • If the AquaDelivery is not going to be used within the next few hours, shut the system down by turning the fuel tap to OFF.Check that all fittings, hoses, tank breather and electrical leads are secure following transit, and are not damaged in any way. -
Page 11: Pump Operation - Diesel Engine Option
• When the engine needs to be stopped, turn the ignition OFF. If the AquaDelivery is not going to be used within the next few hours, shut the system down by turning the fuel tap to OFF. Filling the Tank The AquaDelivery tank can be filled using the hydrant fill kit as follows, referring to Figure 3: WARN ING: Th e AquaDe l iver y u nit is designed for water u s e o nly. -
Page 12: Aquadelivery Operation
AquaDelivery™ Product HandBook • Attach one end of a supplied 3” layflat hydrant hose to the AquaDelivery’s hydrant port, the other end to the hydrant. • Open the supply hydrant’s valve slowly; water will flow under pressure through the AquaDelivery’s pipe system into the top of the tank, automatically tipping the tilt-lid. -
Page 13: Aquadelivery Loading Procedure
Fit the camlock cap to the pump’s discharge port. AquaDelivery Loading Procedure The AquaDelivery is designed to slip into a tipper tray or mount on a flat tray or trailer, and when not required, can be easily removed. The AquaDelivery unit is loaded as follows: WARN ING: Th e AquaDel iver y is heav y and mu st b e l oaded o r unl oad ed correct ly. -
Page 14: Risk Assessment
Carefully lower the AquaDelivery until it rests on the tray floor, ensuring it is centred evenly across the tray. • Secure the AquaDelivery to the floor of the tray, using a suitable system to ensure the unit, when filled with water, cannot move. Risk Assessment... -
Page 15: Maintenance
Check the condition of the optional diesel or petrol pump engine’s 12-volt battery, replace it or charge it as necessary. • If the AquaDelivery is to be stored for an extended period, ensure the tank and all pipelines are empty and are not pressurised. Store the unit is a clean, dry and well-ventilated area. Maintenance The AquaDelivery has been designed and built for minimal maintenance requirements, however, to ensure a long and reliable unit life, the following tasks must be undertaken on a periodic basis. -
Page 16: Maintenance Schedule
TTi recommends photocopying these schedules in order to keep a detailed log of all maintenance tasks. A copy of these schedules will be required to support any warranty claim. Daily Tasks The following tasks are to be undertaken daily, or prior to each use, of the AquaDelivery unit. Task Notes... - Page 17 AquaDelivery™ Product HandBook Three Monthly Tasks The following tasks are to be undertaken every three months or 50 operating hours, whichever occurs first. Task Date Signed All Daily, Weekly and Monthly tasks Inspect the air filter, replace if clogged or damaged...
-
Page 18: Troubleshooting
AquaDelivery™ Product HandBook TroubleShooting If a fault develops with the AquaDelivery, the following trouble shooting table provides guidance to identify and rectify the problem. Problem Possible Cause Remedy Pump will not feed water Ball valve closed on outlet Open ball valve... -
Page 19: Warranty
AquaDelivery™ Product HandBook Warranty Warranty Policy TTI will, at its option, repair or replace without charge any part covered by this warranty which is found to be defective in material and/or workmanship within one (1) year after date of sale to the original retail purchaser. - Page 20 Scan to view our PDF Handbook online www.tti.com.au 1800 816 277 sa l e s@ tt i.c om.au P O B ox 1 37, N at ha li a , V I C , 3 63 8 M ur ray Va l l ey H w y, N ath a l i a , V I C 363 8 Quality Checked By: Proudly Built By: Signature...
