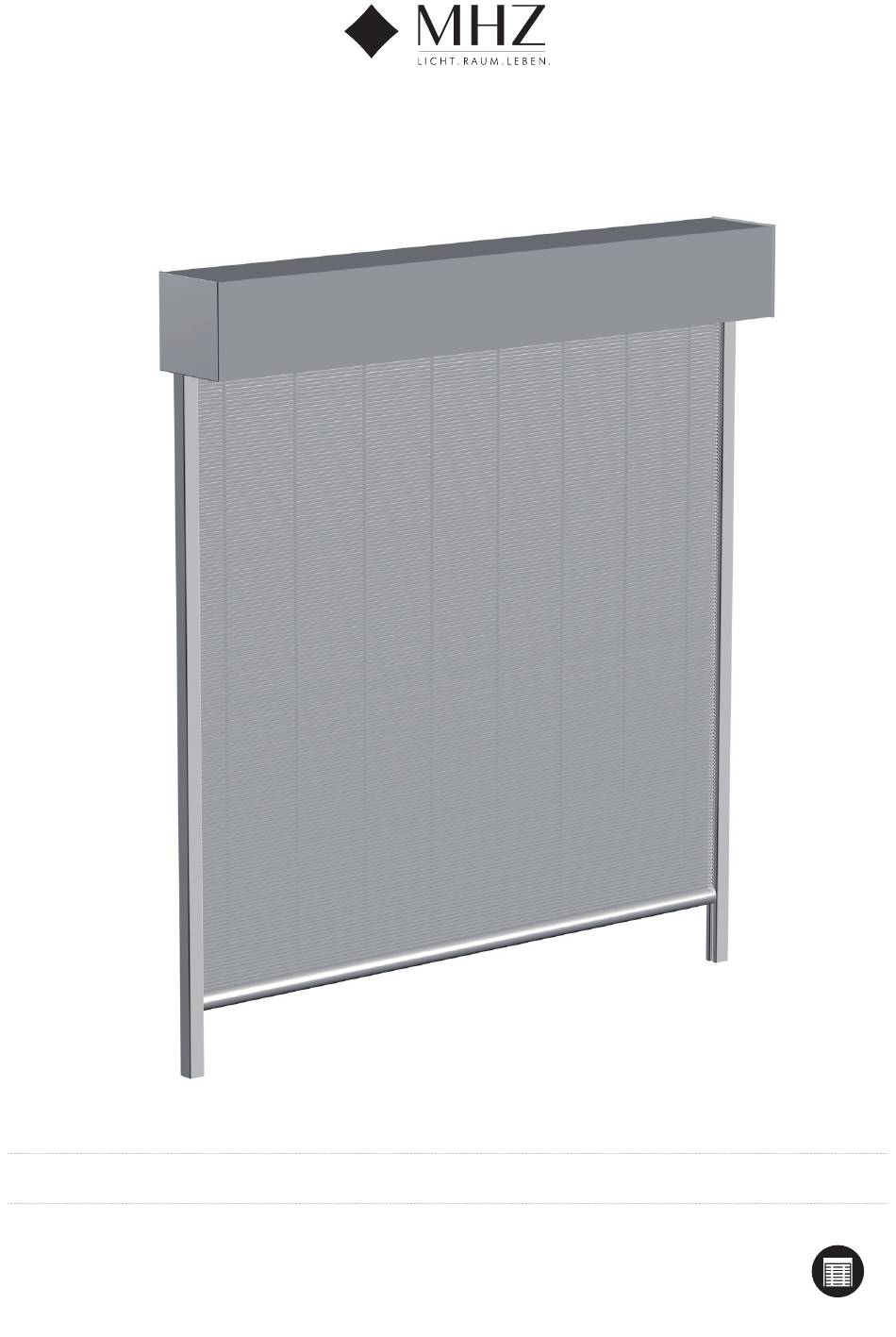

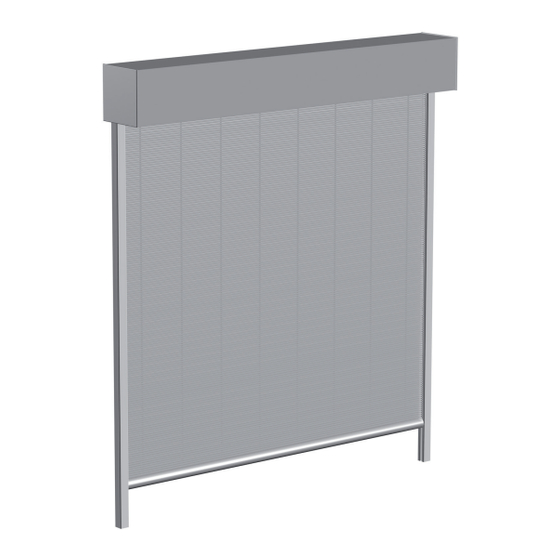

- Page 1 Metal blind s_enro SE 72/1, SE 72/2 Installation instructions Edition 03.2022...
- Page 2 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 Table of contents Page Safety information for the installation 3 - 6 Installation instructions 7 - 21 Record of delivery Page 2 Subject to technical changes I Edition 03/2022...
- Page 3 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 Important safety information for the installation Reading the installation and operating instructions 4. Transport The installation and operating instructions must be read prior The permissible axle loads and the permissible total weight of to installation and then duly followed.
- Page 4 The wind resistance class depends on the application width. on the facade. In the case of installation options deviating from the The declared performance applies only to the product. above, please contact MHZ for the necessary specifications. After installation, the installation base may result in a lower performance.
- Page 5 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 Important safety information for the installation Climbing aids 13. Trial run Climbing aids must not be attached to or leant against the The first time the unit is extended, no one is permitted to be metal blind.
- Page 6 The MHZ record of delivery can be used for this purpose (see p. 23). Page 6 Subject to technical changes I Edition 03/2022...
- Page 7 If there is any doubt, the manufacturer Inspect the delivery for any damage MHZ metal blinds are largely mainte- of the glass facade construction must sustained in transit right away. The nance-free. If any faults do arise, notify be consulted.
- Page 8 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 Technische Daten Grid width Grid width Unit width Unit width Light measurement between Light measurement between the sword holders the sword holders Grid width Grid width Unit width Unit width Light measurement between Light measurement between the sword holders...
- Page 9 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 1. Installation of sword-shaped bracket Position the sword-shaped brackets (1) Installation example uses on-site threaded bolts. The metal blind is supplied without fittings. The sword-shaped brackets must be exactly aligned vertically and horizontally.
- Page 10 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 2. Montage hintere Abdeckung Before installing the rear cover (12), you must push the on- site cable through the cable grommet. Then push the cable grommet (13) and cable into the recess in the cover (see detail drawing).
- Page 11 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 3. Installation of guide rail 45x37 on sword-shaped bracket The wall brackets must be pre-mounted prior to installation of the guide rail 45x37 (3) on the sword-shaped bracket. Use an M6x25 threaded pin, ø6.4 U-washer and M6 hexagon nut (15) to bolt the wall brackets (4) to the M6 square nuts (16) already located in the guide rail (see detail drawing).
- Page 12 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 4. Installation of side plates with blind tube Push the side plates (2) with blind tube (19) from the front into the grooves of the support bars (20). Motor installed on right Check whether the installed position of the side plates with blind tube is correct: - At the side plates, the slots open at the top must...
- Page 13 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 150x150 side plate Up to 2500 mm unit height 210x210 side plate From 2501 mm unit height upwards INFORMATION: The procedure for installation of the 210x210 mm side plates (with stailess- steel adapter plates) is identical to the 150x150 mm side plates shown in the instructions Next, fix each of the side plates to the sword-shaped...
- Page 14 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 5. Removal of stretch film packaging from the blind tube You must take the utmost care when removing the stretch film. Never use a box knife to cut the film. Cut with the safety knife supplied (23) to avoid damaging the blind.
- Page 15 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 6. Procedure for blind Slowly insert the blind into the guide rail on the left and right (approx. 10 cm). When it is being inserted, make sure the blind does not move to either side.
- Page 16 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 7. Installation of deflection tube Position each mounting bracket for the deflection tube assembly (25) on the sword-shaped bracket (1) using 1 x M6x12 hex bolt, ø6 spring washer and ø6.4 U-washer (17). Make sure that the lateral tip of the mounting bracket for the deflection tube (25) snaps into the recess in the mounting bracket for the guide rail (18) (see detail drawing).
- Page 17 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 8. End position adjustment Top end position adjusted to torque with strain relief, bottom end position adjusted freely Please follow the programming procedure in full and in the order stated here. n Move the blind and the installation cable into a central position.
- Page 18 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 9. Installation of plug coupling holde Fasten the plug coupling holder (28) to the sword-shaped bracket (1) with 2 x M6x10 cylinder screws and ø6.4 U-wash- ers (29). Fit the Hirschmann plug coupling (30) together and fasten it to the plug coupling holder (28) using the cable ties (31).
- Page 19 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 10. Installation of front cover The front saddle for fastening must be installed prior to installation of the front cover. Attach the front saddle (32) to each sword-shaped bracket using 5 x M5x8 cylinder screws (33). Screw the front cover (34) to the left and right front saddle using 4 x M5x8 cylinder screws and ø5.3 U-washers (35).
- Page 20 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 11. Multi-unit systems The procedure for the installation of multi-unit systems is Grid width Grid width essentially identical to the installation of a single-unit system. Unit width Unit width When pre-assembling the wall brackets on the guide rails, the wall brackets for the outer guide rails (3a) are mounted singly (4a) and the wall brackets for the inner or adjacent guide rails (3b) are mounted in double (4b).
- Page 21 Installation instructions for metal blind s_enro SE 72/1, SE 72/2 All further installation steps are performed in the same way as for a single-unit system. Care must be taken when installing the mounting brackets for the guide rail and deflection tube on the sword-shaped bracket in the middle to ensure that the fastening screws on the left and right are mounted offset to each other (see detail drawing).
- Page 23 Copy template Record of delivery Specialist firm: Customer Street Postcode/ town – – – Customer no. Order no. Installer Date of Commission installation Model name: The elements have been installed without visible defects, following consultation with the seller and/or the installer*: If no, what is the complaint? * if the customer waives a formal acceptance test despite being advised of the option and puts the metal blind systems into operation, such systems will be deemed accepted.
