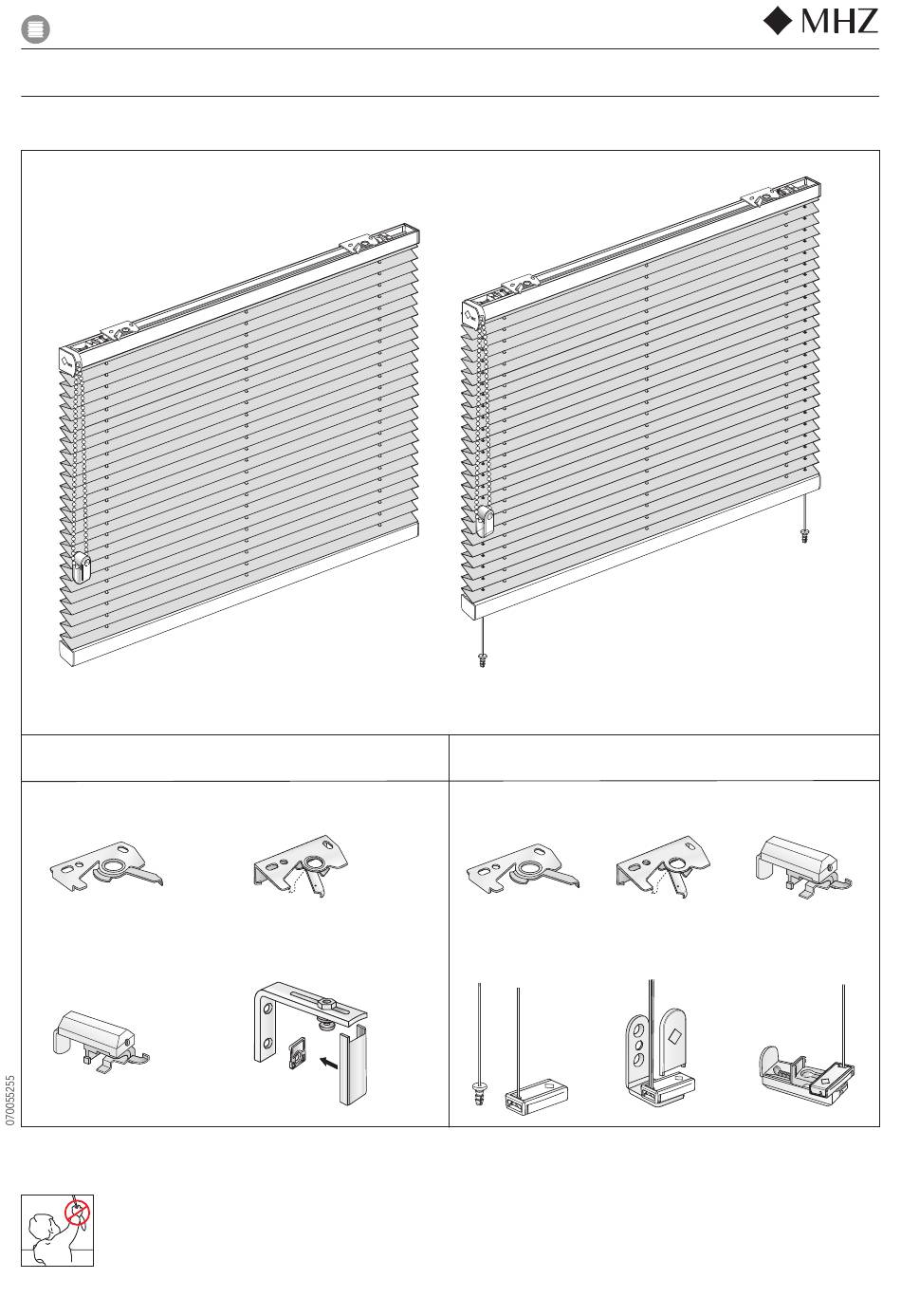

Installation and Operating Instructions
PLEATED BLINDS
11-8130
*
Installation brackets
Ceiling bracket
Clamp bracket
Attention: When using tools (ladders, drilling machines, etc.) for installation and maintenance of our products, always follow safety instructions
of the manufacturer.
* With safety tensioner system for child safety (included in standard delivery), see p. 5
Please note: Be sure to fit in correct direction and to keep chain taut. Correct positioning of the safety tensioner system must be checked
regularly and in the case of doubt be re-adjusted.
Subject to technical changes, Edition 09.2014
Wall bracket
Wall bracket
with side guide
*
Please observe the required minimum distances from
our sales documents. Especially in case of pleated
Installation brackets with side guide
Ceiling bracket
Wall bracket
®
blinds with DUETTE Fixé fabrics.
Clamp bracket
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MHZ 11-8130
Summary of Contents for MHZ 11-8130
- Page 1 Installation and Operating Instructions PLEATED BLINDS 11-8130 with side guide Please observe the required minimum distances from our sales documents. Especially in case of pleated ® blinds with DUETTE Fixé fabrics. Installation brackets Installation brackets with side guide Wall bracket...
-
Page 2: Bracket Installation
Pleated blinds Bracket installation Glazing Clamp bracket Frame/wall bead/ceiling pre punch pre punch * With safety tensioner system for child safety (included in standard delivery), see p. 5 Please note: Be sure to fit in correct direction and to keep chain taut. Correct positioning of the safety tensioner system must be checked regularly and in the case of doubt be re-adjusted. - Page 3 Pleated blinds Side guide installation Glazing bead pre punch 90° Glazing Glazing bead bead 5 mm pretension 2 4 , 5 anti rotation lock ø 4 mm 90° pre punch 6 , 5 m 1 8 m * With safety tensioner system for child safety (included in standard delivery), see p. 5 Please note: Be sure to fit in correct direction and to keep chain taut.
- Page 4 Pleated blinds Side guide installation Clamp Frame/ wall bracket 90° 2 4 , 5 pre punch Tension is set by factory o x . a p r Retension if necessary Subject to technical changes, Edition 09.2014...
- Page 5 Pleated blinds Installation Child Safety System Safety tensioner for operating chain Mounting orientation „UP“ = top Clip on lock washer Marking "UP" (rear) Please note: Be sure to fit in correct direction and for wall installation to keep chain taut. Correct positioning Lock washer of the safety tensioner system must be clipped in...
- Page 6 Export department MHZ Hachtel GmbH & Co. KG . P.O. Box 80 05 20 . D-70505 Stuttgart . Germany Phone 0711/97 51-0 . Fax 0711/ 97 51-4 11 50 . www.mhz.de · export@mhz. de...
