kozy heat KZK-036 Manual

Komfort zone kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P.O. BOX 557 204 INDUSTRIAL PARK DRIVE
LAKEFIELD, MINNESOTA USA 56150-0577
READ ALL THESE STEPS BEFORE STARTING INSTALLATION. LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE.
This kit must be installed by a qualified installer, service agency, or gas supplier at the time of the heater installation.
These instructions must be used in conjunction with the installation and operation manual provided with the appliance.
Please read all appliance owner's manual completely before performing any procedures in these instructions.
1.0 Introduction ............................................................. 3
1.1 Kit Contents ............................................................. 3
1.2 Suggest Configurations ............................................ 4
1.3 Dimensions and Overview ....................................... 5
1.4 Air Duct Run ............................................................. 6
2.0 Framing and Clearances ........................................... 7
2.1 Clearance to Sprinkler ............................................. 7
2.2 Framing .................................................................... 8
3.0 Facing and Finishing ............................................... 11
3.1 Non-combustible Requirements ........................... 13
3.2 Finish Requirements .............................................. 14
3.3 Hearth and Mantel Clearances .............................. 16
4.0 Fireplace Preparation & Installation ....................... 17
4.1 Nordik 36 DV.......................................................... 17
This optional convection duct kit redistributes the warm air flow away from the fireplace opening to a more desirable
location using natural convection without the use of a fan. The warm air flow would be relocated to a position higher up the
wall. The result is much cooler wall temperatures above the fireplace opening for locating televisions, artwork, etc.
KZK-036
Komfort Zone Kit #KZK-036
For use with Nordik 36 DV (#NDK-36-DV)
English and French installation manuals are available
through your local dealer. Visit our website
www.kozyheat.com.
Les manuels d'installation en français et en anglais sont
disponibles chez votre détaillant local. Visitez
www.kozyheat.com.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
IMPORTANT: Failure to read and follow these instructions
may create a possible hazard and will void the fireplace
1
warranty.
Rev. 1 - July 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KZK-036 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for kozy heat KZK-036

Summary of Contents for kozy heat KZK-036

  • Page 1: Table Of Contents

    Komfort Zone Kit #KZK-036 For use with Nordik 36 DV (#NDK-36-DV) P.O. BOX 557 204 INDUSTRIAL PARK DRIVE LAKEFIELD, MINNESOTA USA 56150-0577 READ ALL THESE STEPS BEFORE STARTING INSTALLATION. LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE. This kit must be installed by a qualified installer, service agency, or gas supplier at the time of the heater installation.
  • Page 2 KZK-036 Rev. 1 - July 2023...

  • Page 3: Introduction

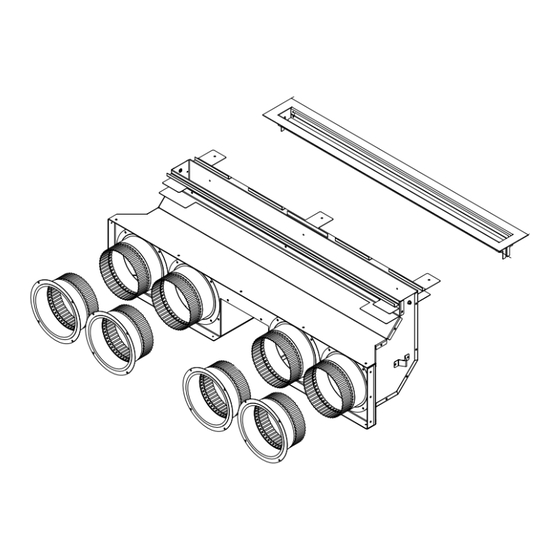

    1.0 Introduction 1.1 Kit Contents ALL kit contents must be installed. • (1) 36" plenum kit: KZK-036 • (1) plenum discharge trim: KZK-036DT • (2) plenum support brackets • (8) 6" collars - (4) to attach to the bottom of the ple- num;...

  • Page 4: Suggest Configurations

    When installing the #KZK-036, take in consideration the fireplace venting and the plenum tube configuration. • The #KZK-036 plenum must be installed so it discharges heat into the room the Nordik 36 DV is installed in. Nordik 36 DV Figure 1.3 - Nordik 36 DV Suggested Plenum Configurations KZK-036 Rev.

  • Page 5: Dimensions And Overview

    1.3 Dimensions and Overview Figure 1.4 - KZK-036 Dimensions KZK-036 Rev. 1 - July 2023...

  • Page 6: Air Duct Run

    Hussong Mfg. Co., Inc. requires pipes to be listed as UL181 Class 0 Air Duct to connect the plenum(s) to the unit. Maximum Vent Run: 20’ (6m) Nordik 36 DV Figure 1.5 - Nordik 36 DV Horizontal Run KZK-036 Rev. 1 - July 2023...

  • Page 7: Framing And Clearances

    • Please follow local building codes to determine what temperature setting is relevant for your installation. Figure 2.1 - Clearance to Sprinkler KZK-036 Rev. 1 - July 2023...

  • Page 8: Framing

    Figure 2.3 show the minimum height of plenum framing from the base of that specific fireplace. Figure 2.2 - Plenum Framing Nordik 36 DV Figure 2.3 - Nordik 36 DV Plenum Framing KZK-036 Rev. 1 - July 2023...
  • Page 9 Figure 2.5 shows the minimum height of plenum framing from the top finishing edge of the fireplace. This applies to the Nordik 36 DV Figure 2.4 - Minimum Clearance to Ceiling Nordik 36 DV Figure 2.5 - Nordik 36 DV Plenum Framing KZK-036 Rev. 1 - July 2023...
  • Page 10 Nordik 36 DV Figure 2.6 - Nordik 36 DV Wall Enclosure Rough Opening KZK-036 Rev. 1 - July 2023...

  • Page 11: Facing And Finishing

    IMPORTANT: The B36-PSF2 and B36-FRSF2 (Figure 3.1) are ONLY approved for use when the Nordik 36 DV is installed with the #KZK-036. The other (4) safety barriers shown in Figure 3.2 are approved in all installation scenarios. Safety Barriers Approved for All Design Options...
  • Page 12 IMPORTANT: When using the #B36-FRSF2 or #B36-PSF2 with the Nordik 36 DV the rope on the back of the safety barrier must be removed before installing the safety barrier. You must remove the rope on the back of the safety barrier Figure 3.3 - Rope Removal KZK-036 Rev. 1 - July 2023...

  • Page 13: Non-Combustible Requirements

    3.1 Non-Combustible Requirements Nordik 36 DV Figure 3.4 - Nordik 36 DV Minimum Non-Combustible Finishing DImensions KZK-036 Rev. 1 - July 2023...
  • Page 14 See Figure 3.5 for finishing options. Finishing material must not block the opening and must be run evenly along the plenum opening. WARNING! RISK OF OVERHEATING AND FIRE! Ensure the KZK duct system is installed in accordance to this manual Figure 3.5 - Plenum Air Discharge Finishing Options KZK-036 Rev. 1 - July 2023...

  • Page 15: Finish Requirements

    See Figure 3.5 on page 14 for up to 1" (25mm) thick combustible material installation around the KZK air discharge trim. Nordik 36 DV Figure 3.6 - Nordik 36 DV Combustible Wall Finish and Surround KZK-036 Rev. 1 - July 2023...

  • Page 16: Hearth And Mantel Clearances

    3.3 Hearth and Mantel Clearances • Figure 3.7 shows the mantel and hearth projections for the Nordik 36 DV allowed when using this KZK-036. The image below shows the mantel projection starting at the top fireplace finishing edge. • Combustible flooring can run underneath this appliance which would then allow an unlimited combustible hearth projection.

  • Page 17: Fireplace Preparation & Installation

    6. Frame the rough opening of the fireplace and KZK plenum. secured with (4) sheet metal screws. See the second Refer to all pages of this KZK-036 manual and the Nordik 36 image in Figure 4.1. Discard these cover plates.
  • Page 18 IMPORTANT: The B36-PSF2 and B36-FRSF2 (Figure 3.1) are ONLY approved for use when the Nordik 36 DV is installed with the #KZK-036. The other (4) safety barriers shown in Figure 3.2 are approved in all installation scenarios. Figure 4.4 - Nordik 36 Stand-Off Installation Figure 4.5 - Trim Installation...
